- Optical System

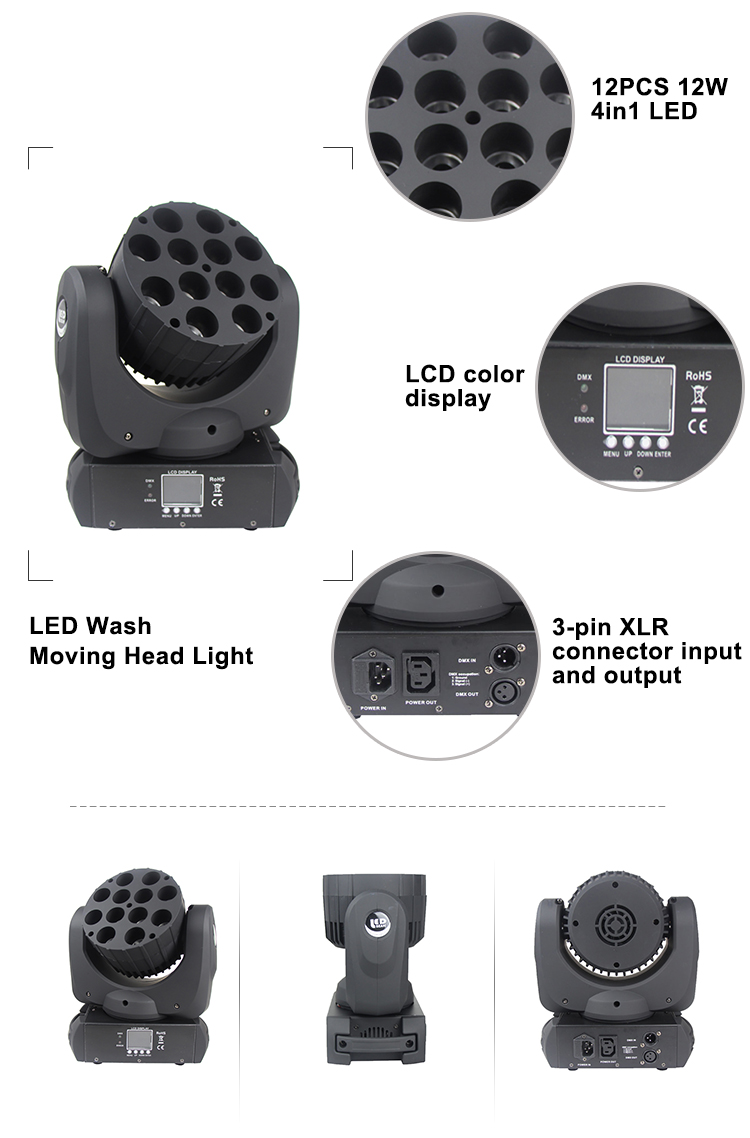

- Light source: 12PCS 10W CREE 4in1 LED
- Lumen: 694LM @ 7 meters(full power output)
- LED lifespan: 50,000 hours
- Lens angle: 20°
- Dynamic Effects
- Emitting color: RGB color mixing can change the 16.7 million colors
- LED thermal overload protection
- Built-in program and macro function
- 0-100%electronic dimming
- Shutter:18 time/scond high-speed strobe, random and pulse strobe
- Control and Program
- LCD color display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 11/15 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 240°
- Scanning position memory
- Automatic Pan/Tilt position automatic correction
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 150 W
- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:260*150*315 mm (10.2*5.9*12.4 inch)
- Carton:320(L)*230(W)*350(H) mm (12.6*9*13.8 inch)
- Net weight: 5 kg (11 lbs)
- Gross weight: 6.5 kg (14.3 lbs)
- Packing List

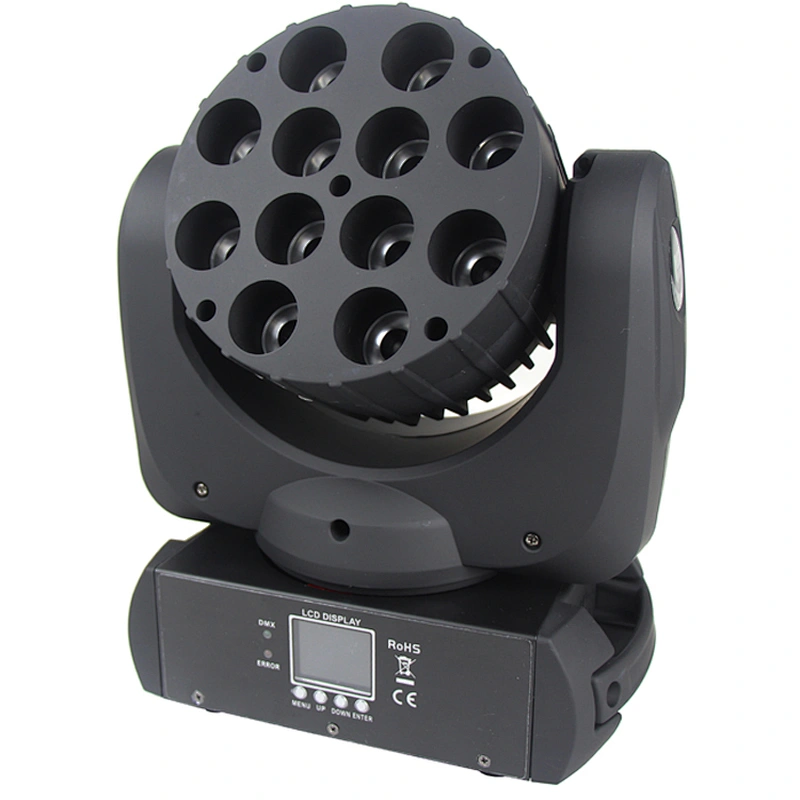

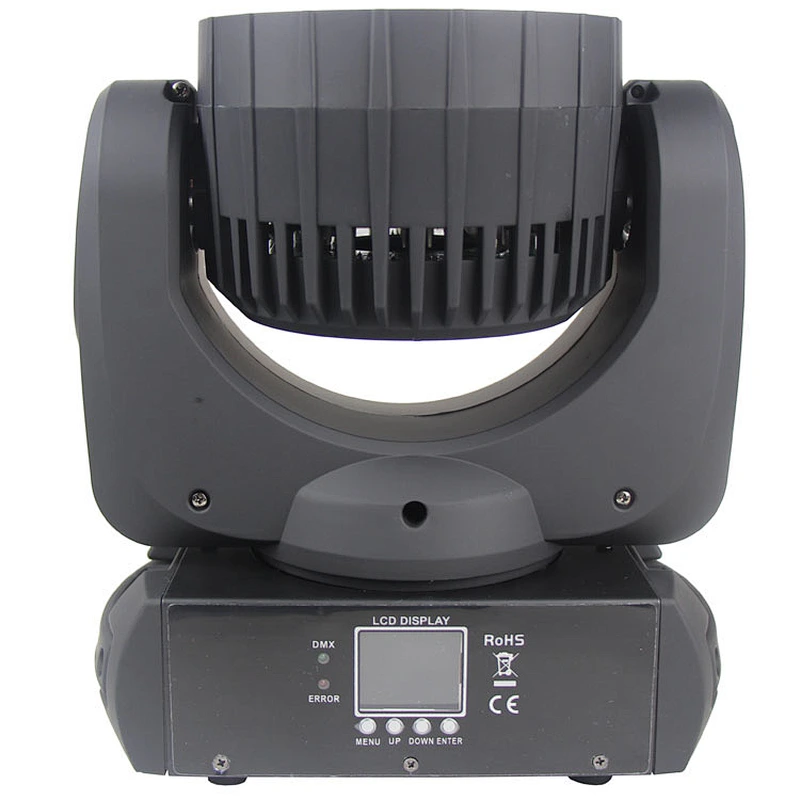

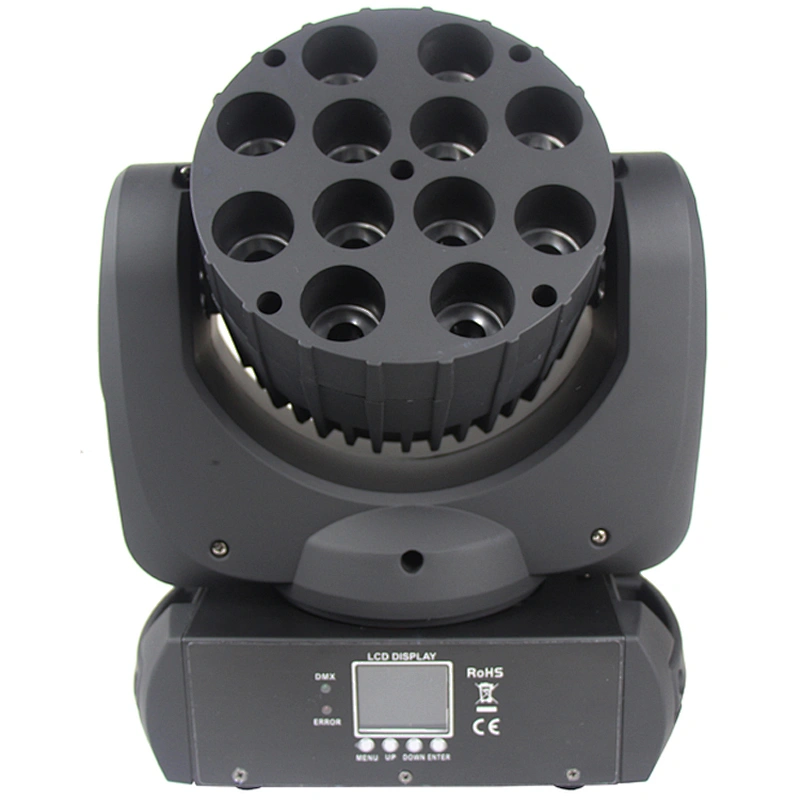

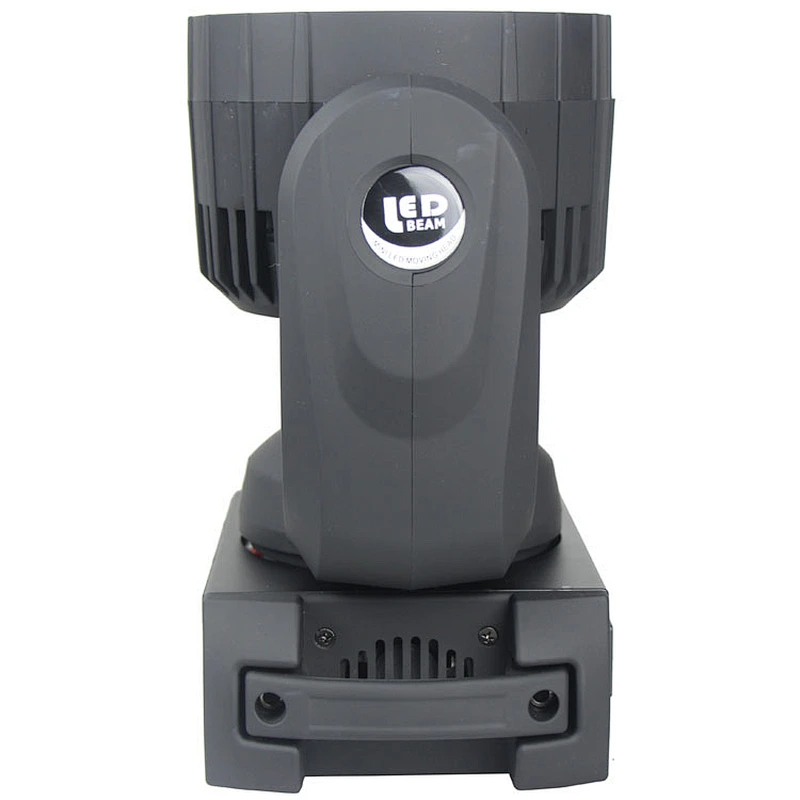

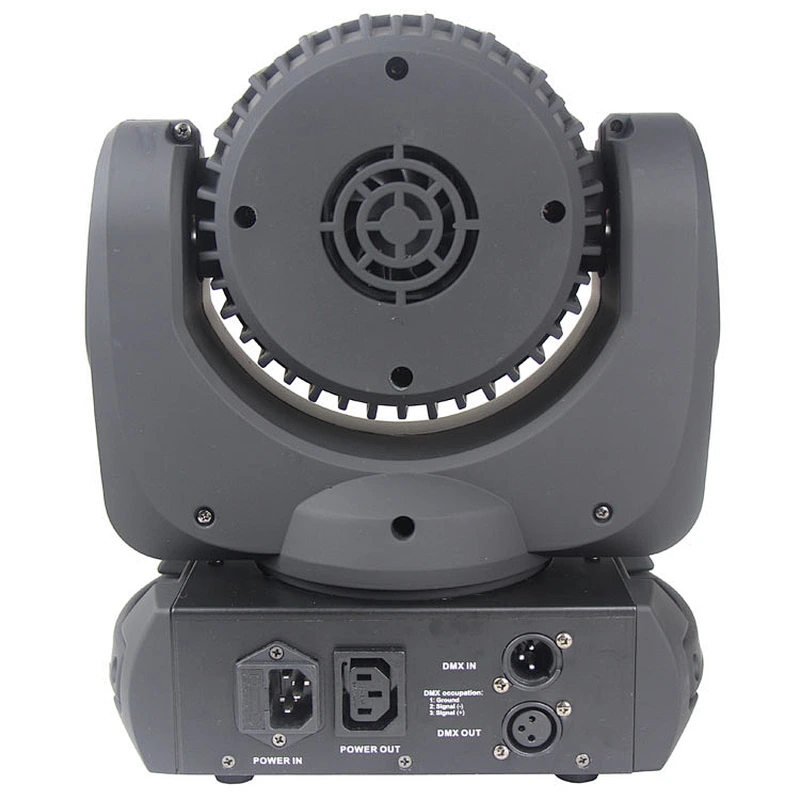

- LEDWASH 120
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 8pcs in 1
- Clamp
- Safety rope
- DMX wire
