- Optical System

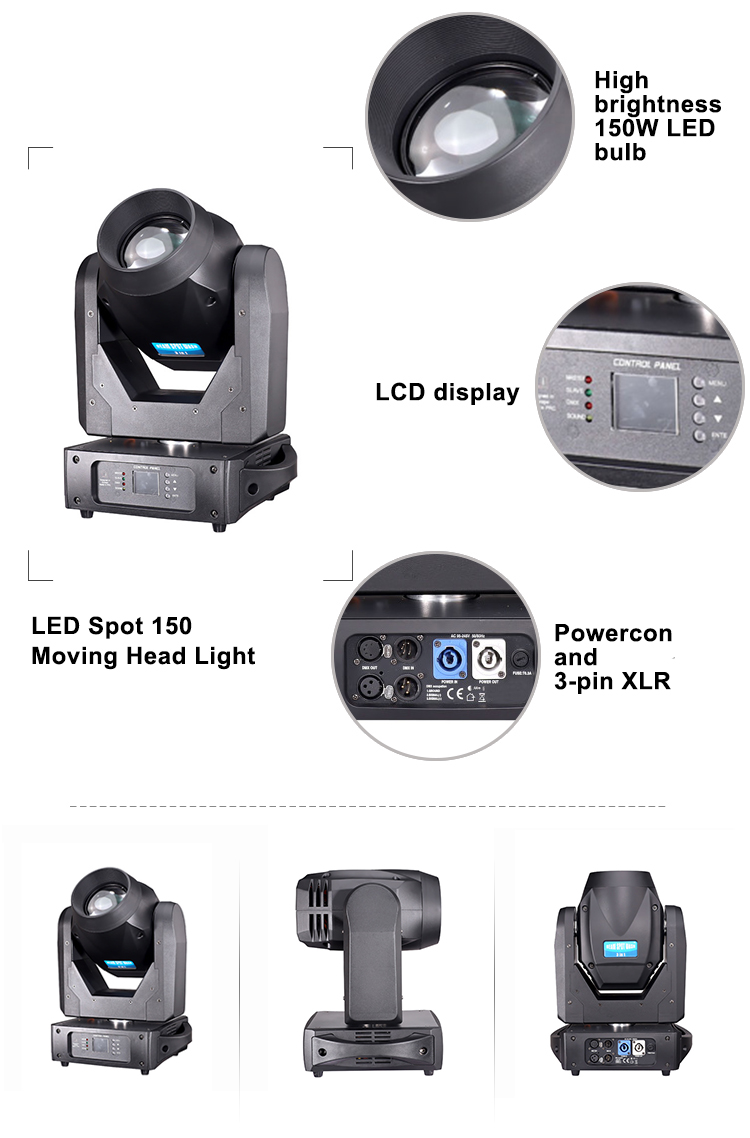

- Light source: high brightness 150W LED
- LED lifespan: 50,000 hours
- Beam angle：11°(on full open); 2°/4°/6°/8°/10° (with beam reducer); 3°/6°/9°/12°/15°/19°(with zoom lens)
- Spot angle：Fix gobo: 10°→15°(with zoom lens); Rotating gobo: 10°→17°(with zoom lens)
- Wash angle：15°-28°(with zoom lens)
- Dynamic Effects
- Colour wheel: 8 colors + white
- Rotating gobo wheel：6 rotating gobo + white
- Gobo size: 21mm(outer diameter) / 17mm(inner diameter)
- Fixed gobo wheel: 7 fixed gobo + white
- A rotating 3-facet round prism
- Zoom lens
- Frost function
- Linear electronic focus
- 0-100% smooth linear dimming system
- Shutter: 1-25 times/sec high speed strobe, speed adjustable
- Control and Program
- LCD display, brightness and contrast ratio adjustable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 17/20 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50-60 Hz
- Power consumption: 180 W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 312*255*453 mm (12.3*10*17.8 inch)
- Carton: 385*320*480 mm (15.2*12.6*18.9 inch)
- Net weight: 12.5 kg (27.6 lbs)
- Gross weight: 14.5 kg (32 lbs)
- Packing List

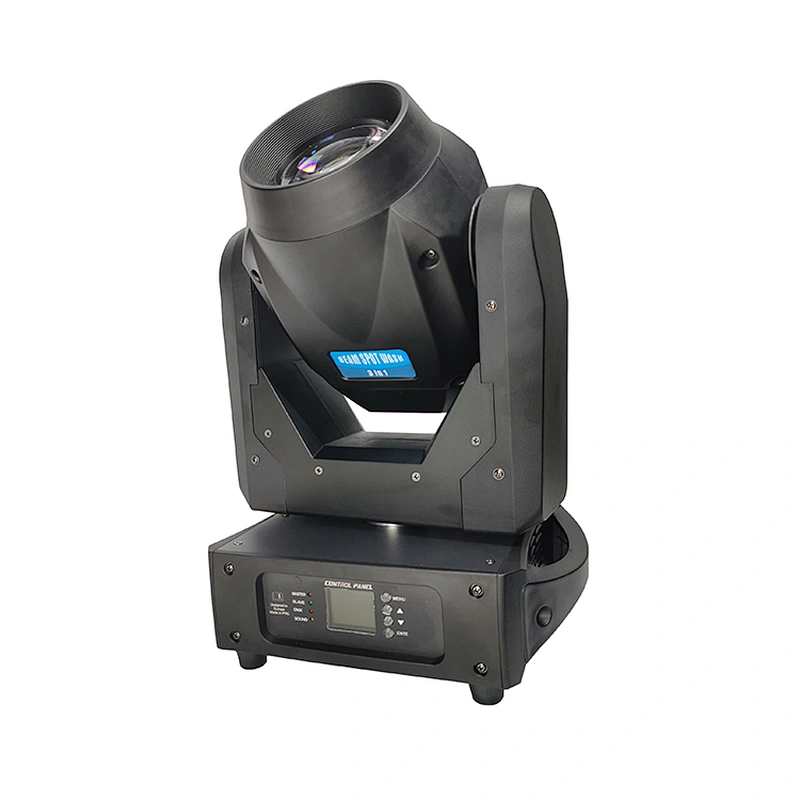

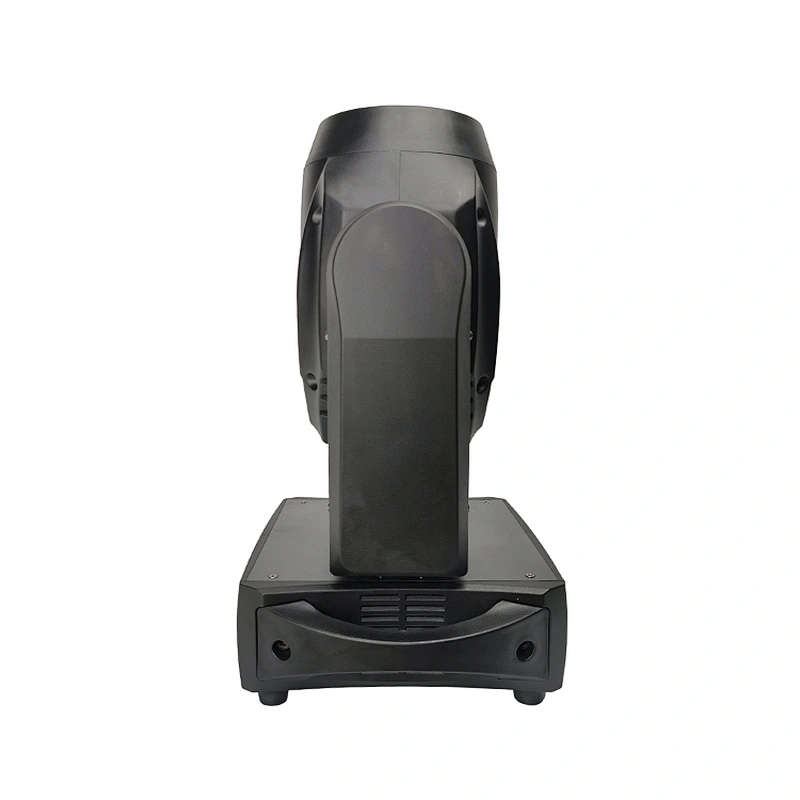

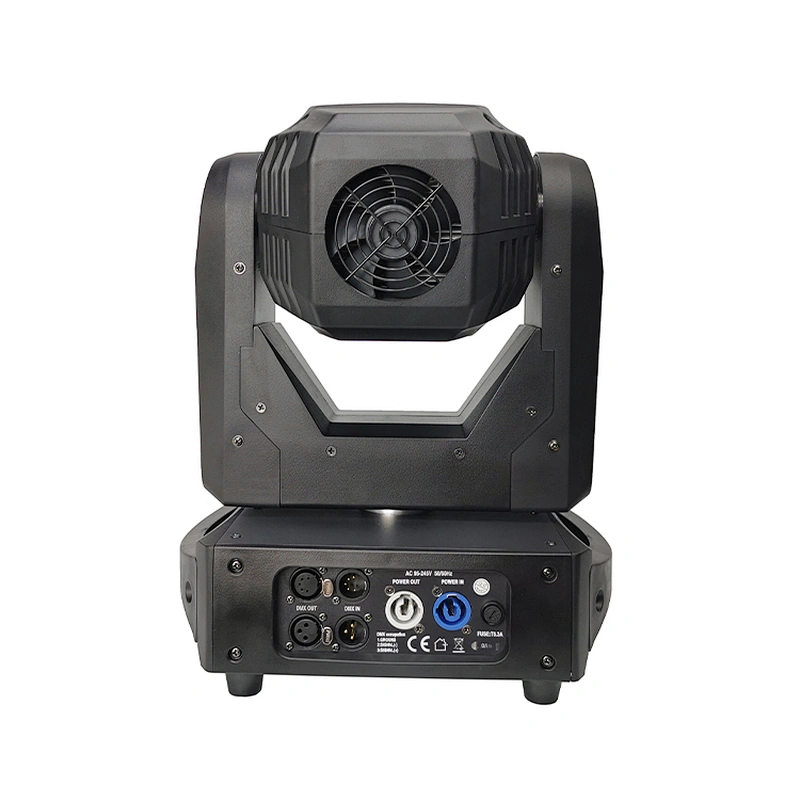

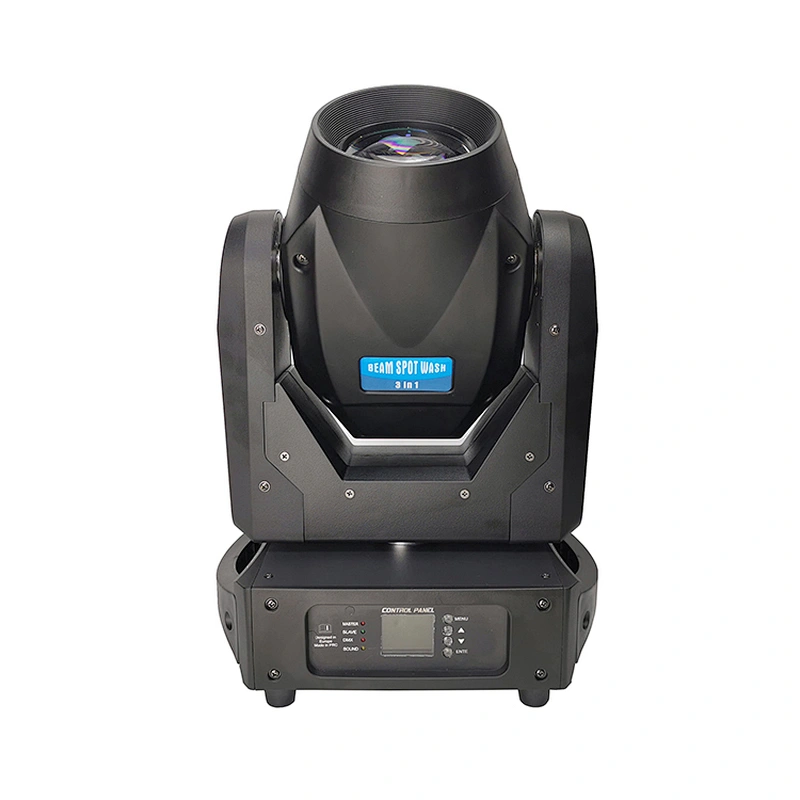

- LED BEAMSPOT 150
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
