- Optical System

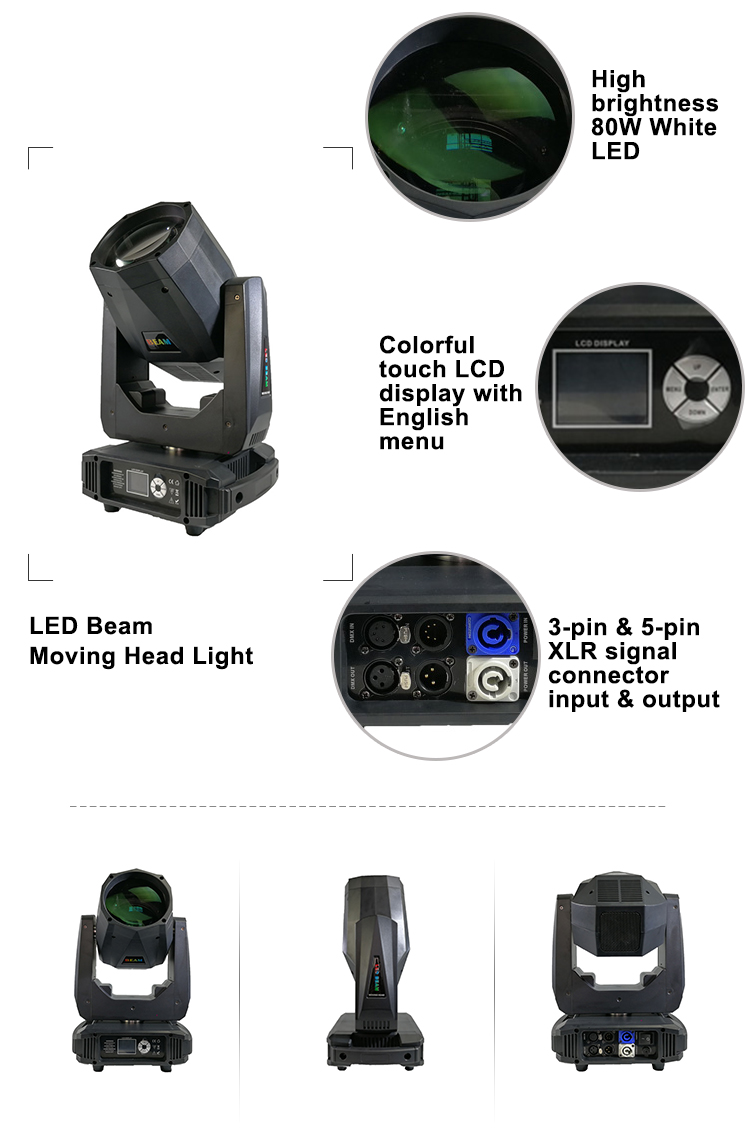

- Light source: 1PC 80W white LED
- LED lifespan: 50,000 hours
- Beam angle: 3°
- Dynamic Effects
- Color wheel: 13 colors + white
- Fixed gobo wheel: 11 fixed gobo + white
- Colorful disk: 6 color
- Frost (wash effect)
- A rotating 8-facet prism + a rotating 16-facet prism

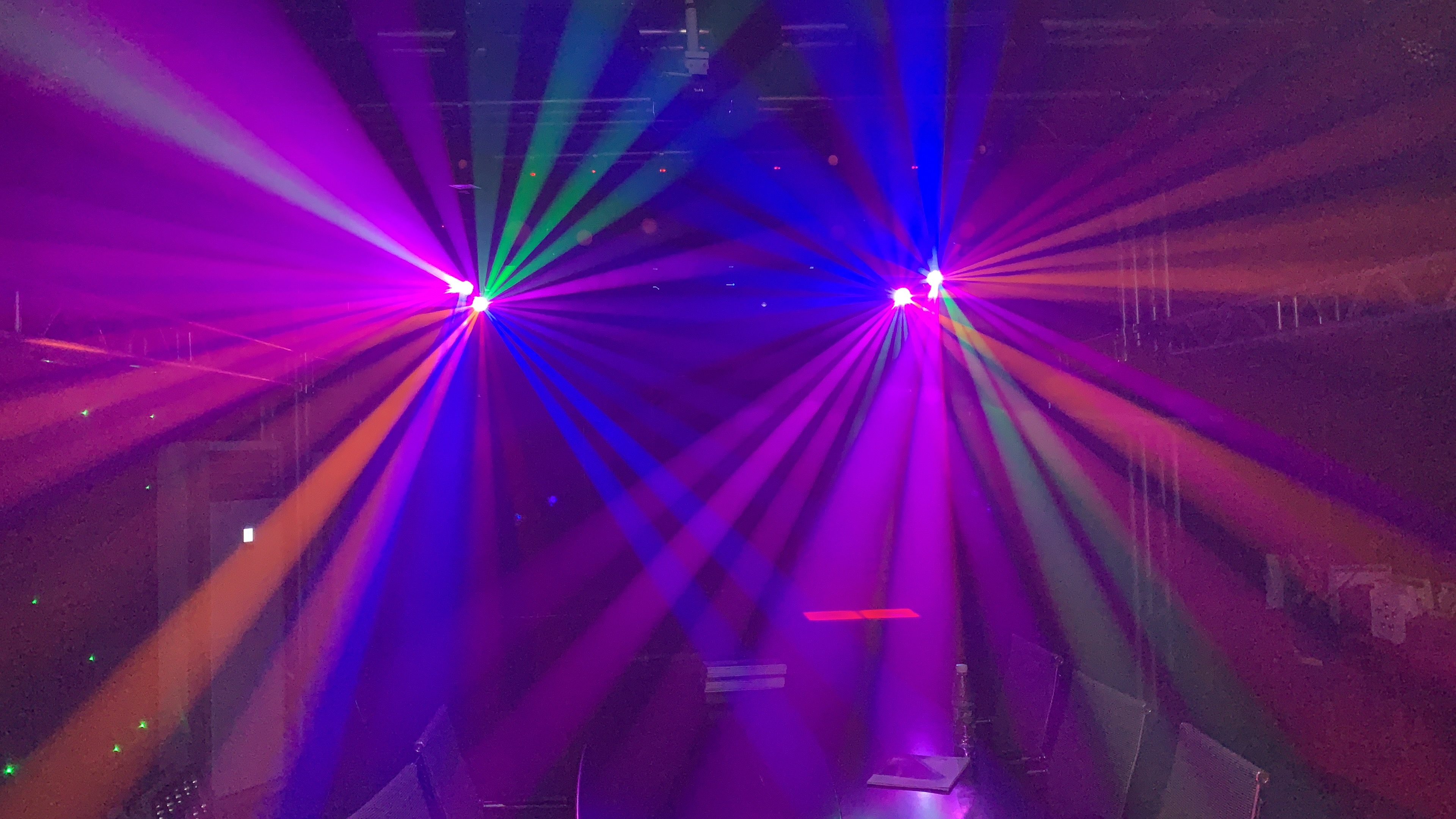

- Bi-directional rainbow effect, speed adjustable
- 0-100% linear dimming
- Shutter:18 time/scond high-speed strobe, with random and pulse strobe
- Control and Program
- Colorful touch LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16/20 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position automatic correction
- DB rate: 55db(3”)
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 150 W

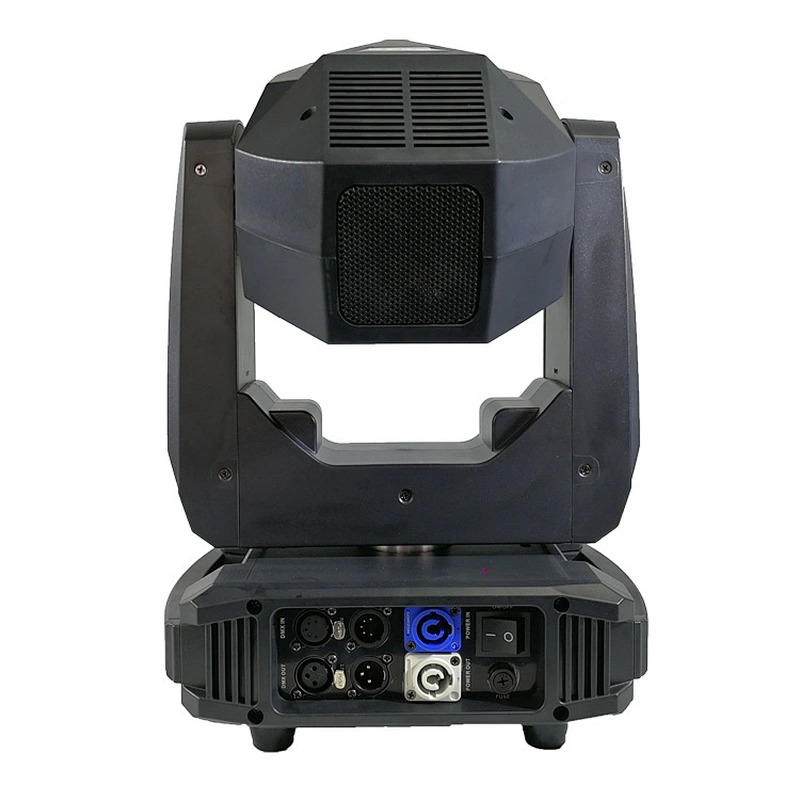

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR / 5-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:300*230*470 mm (11.8*9*18.5 inch)
- Carton:380(L)*370(W)*510(H) mm (15*14.6*20 inch)
- Net weight: 12 kg (26.5 lbs)
- Gross weight: 13.5 kg (29.8 lbs)

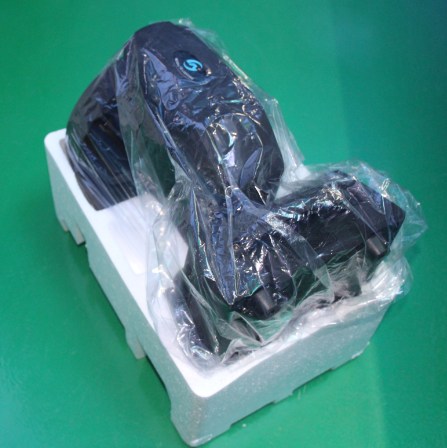

- Packing List

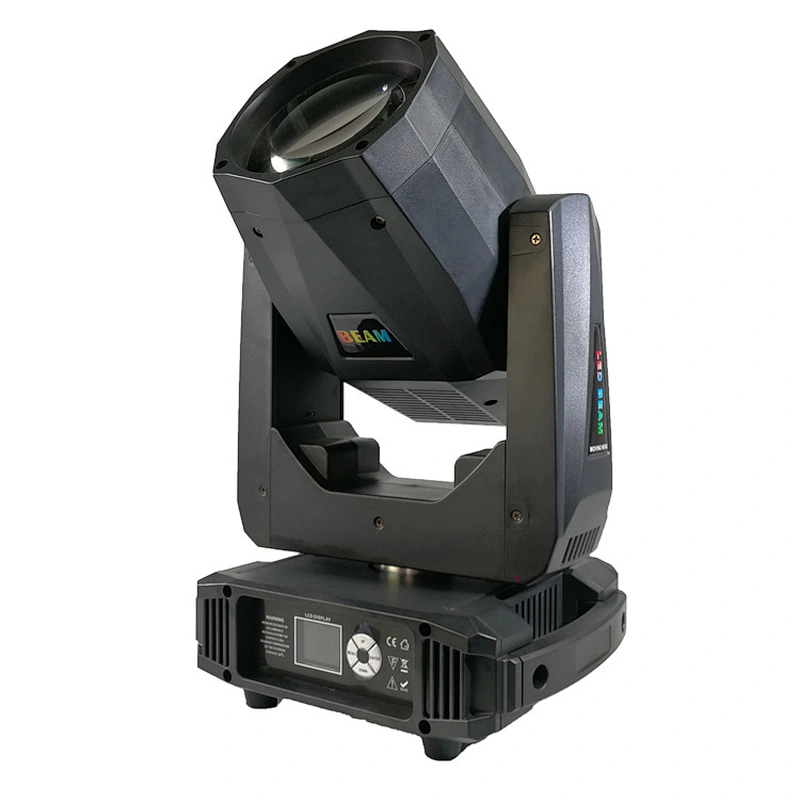

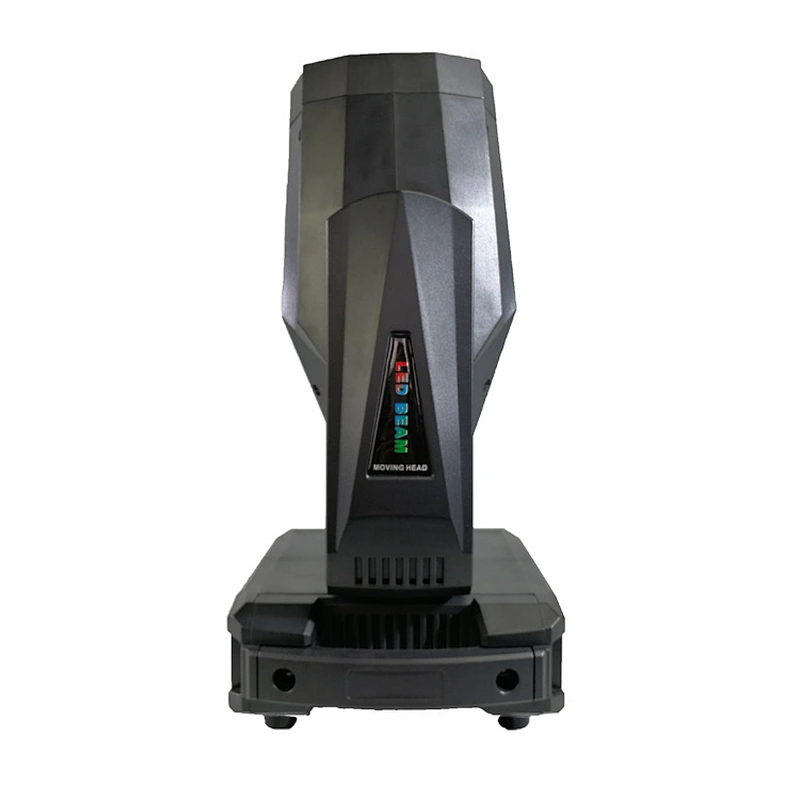

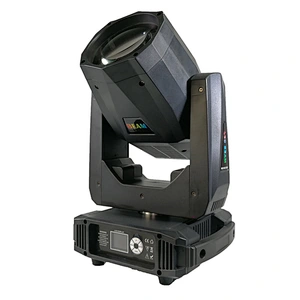

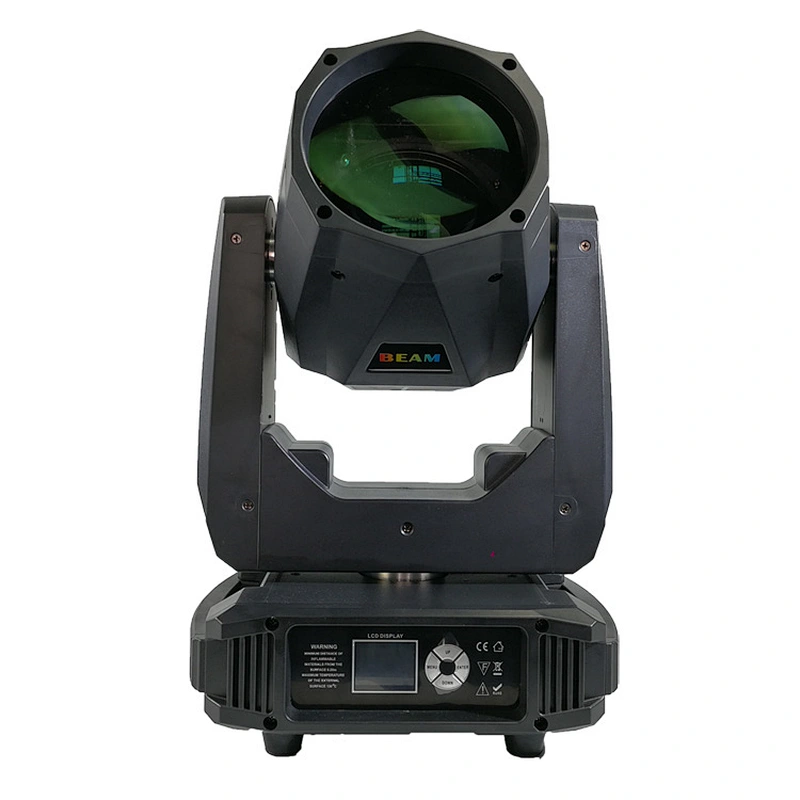

- LEDBEAM 80
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
