- Optical System
- Light source: high brightness 200W LED
- LED lifespan: 50,000 hours
- ZOOM range: 6°-10° beam model; 10°–40° spot model
- Dynamic Effects

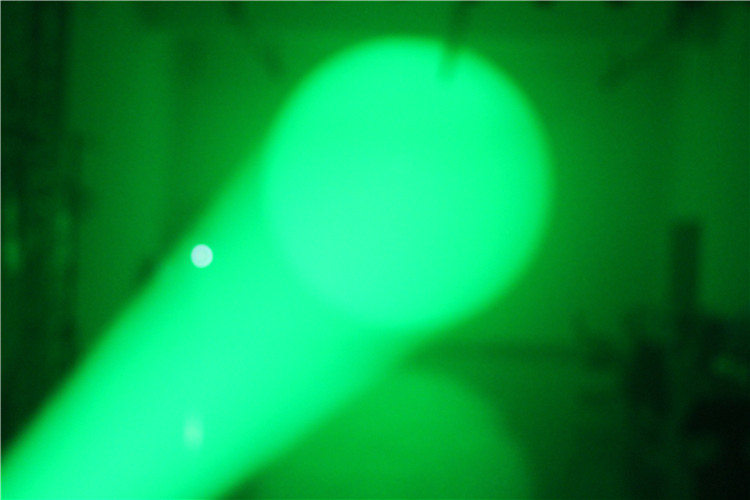

- Colour wheel: 9 color + white

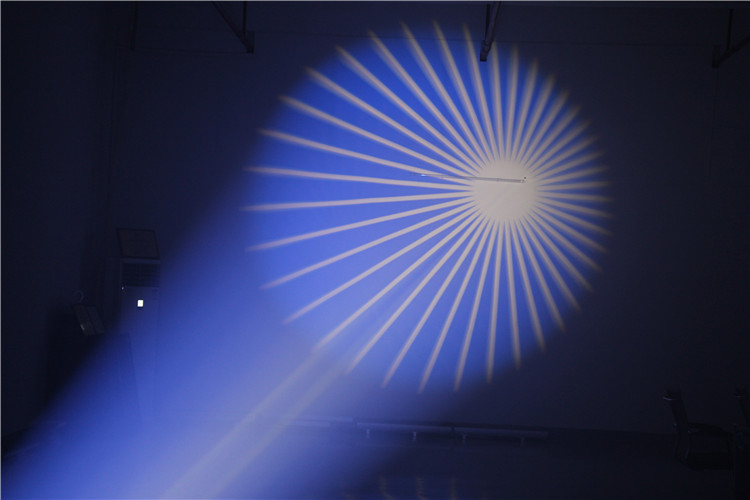

- Rotating gobo wheel：7 rotating gobo + white
- Gobo size: 29mm(outer diameter) / 21mm(inner diameter)

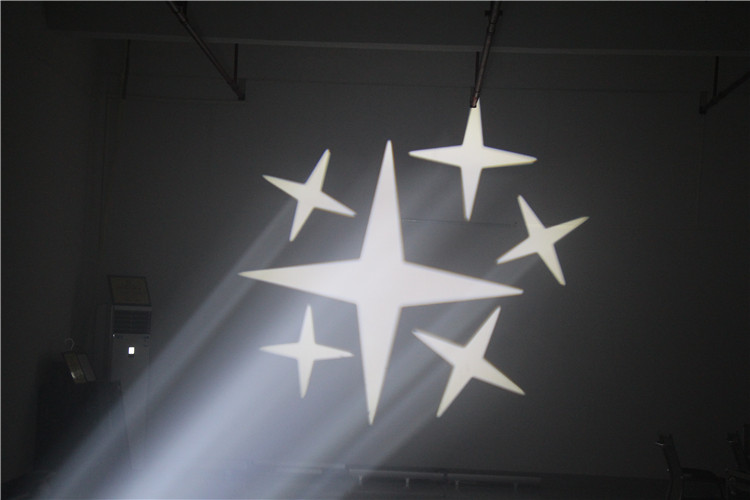

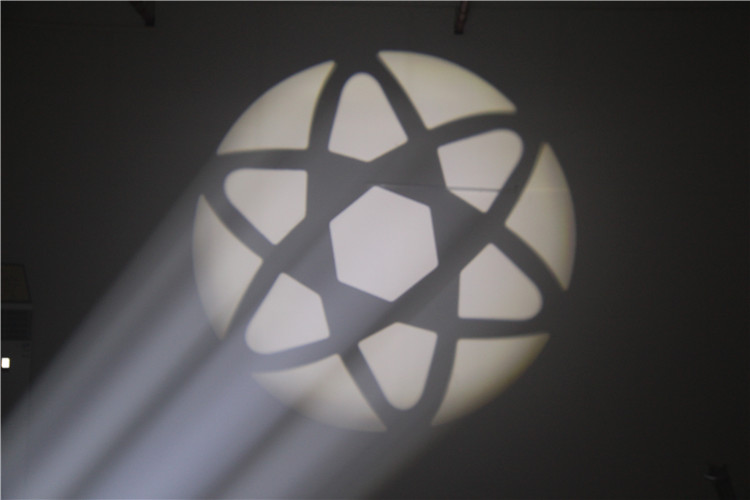

- Fixed gobo wheel: 9 fixed gobos + open
- A rotating 3-facet prism
- Rainbow effect and
- Color mixing half
- Shaking effect
- Frost function
- Linear electronic focus
- 0-100% smooth linear dimming system
- Shutter: 1-25 times/sec high speed strobe, speed adjustable
- Control and Program
- LCD display, brightness and contrast ratio adjustable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 20 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50-60 Hz
- Power consumption: 280 W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 315*250*520 mm (12.4*9.8*20.5 inch)

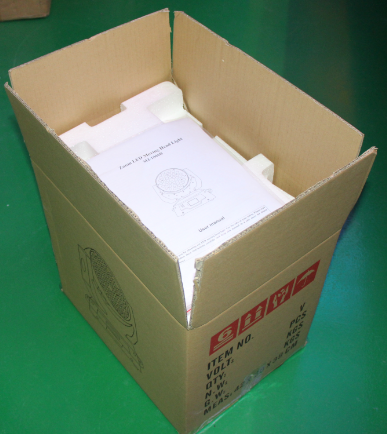

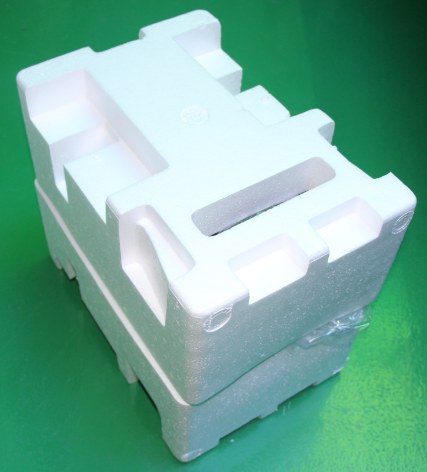

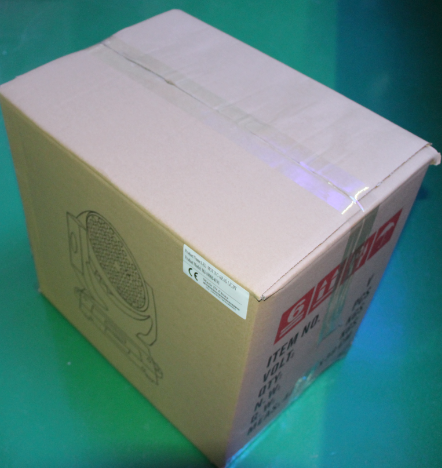

- Carton: 450*370*430 mm (17.7*14.6*16.9 inch)
- Net weight: 14 kg (30.9 lbs)
- Gross weight: 16.5 kg (36.4 lbs)

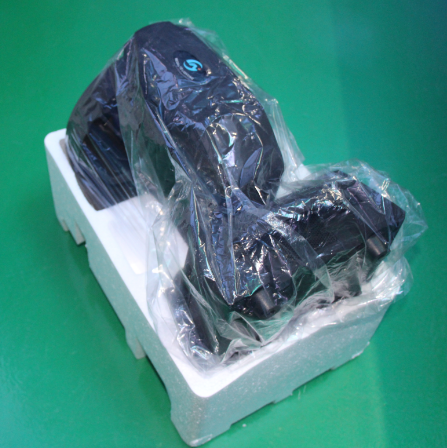

- Packing List

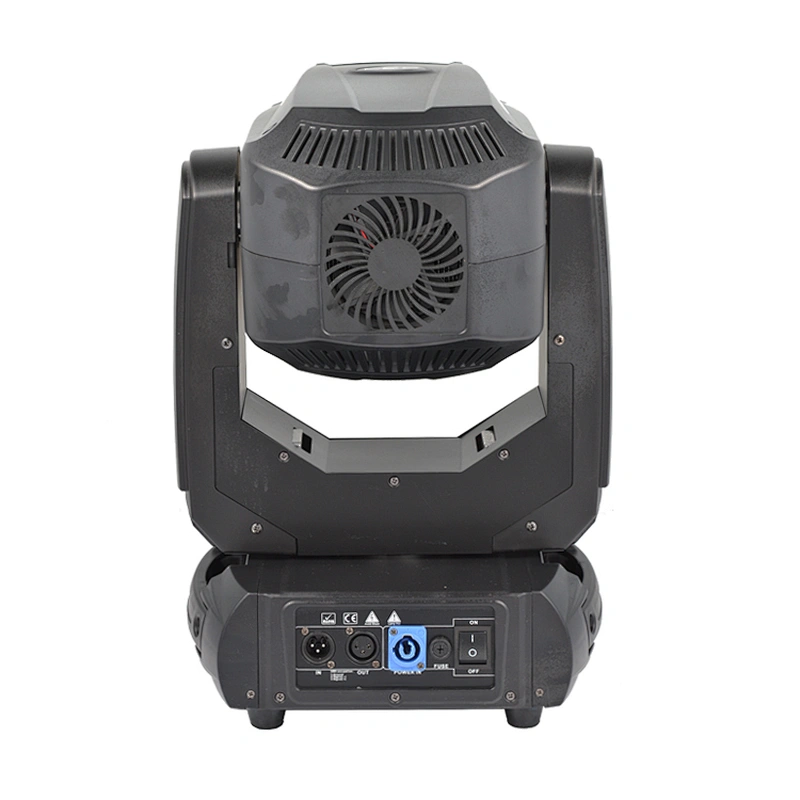

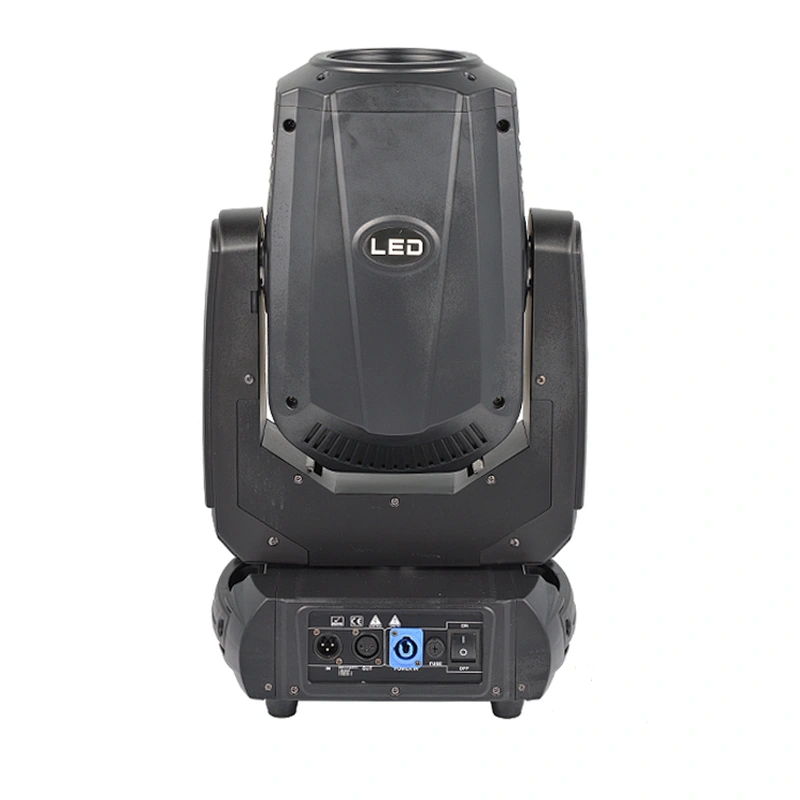

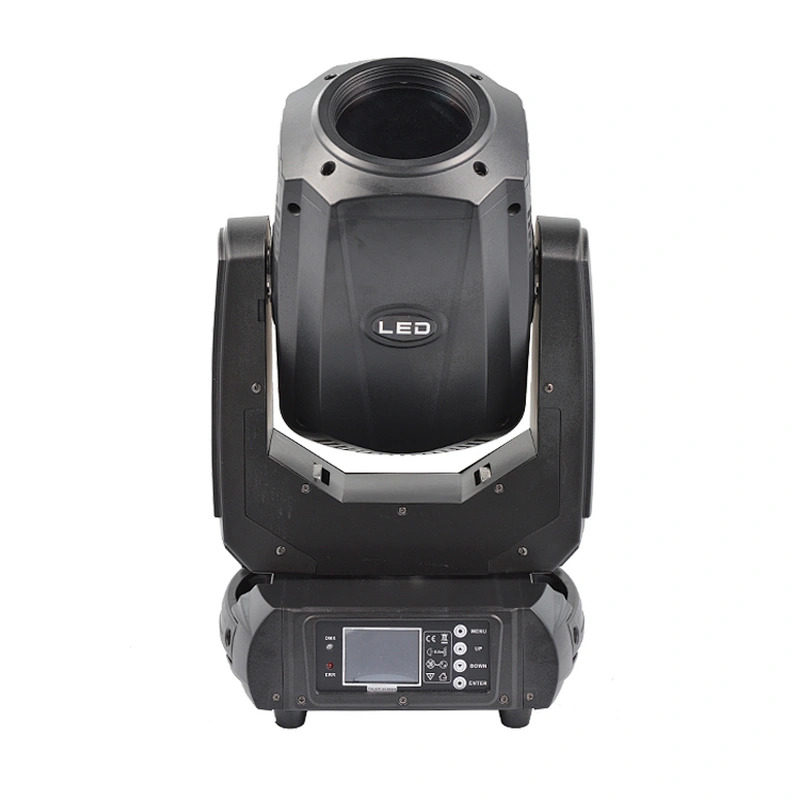

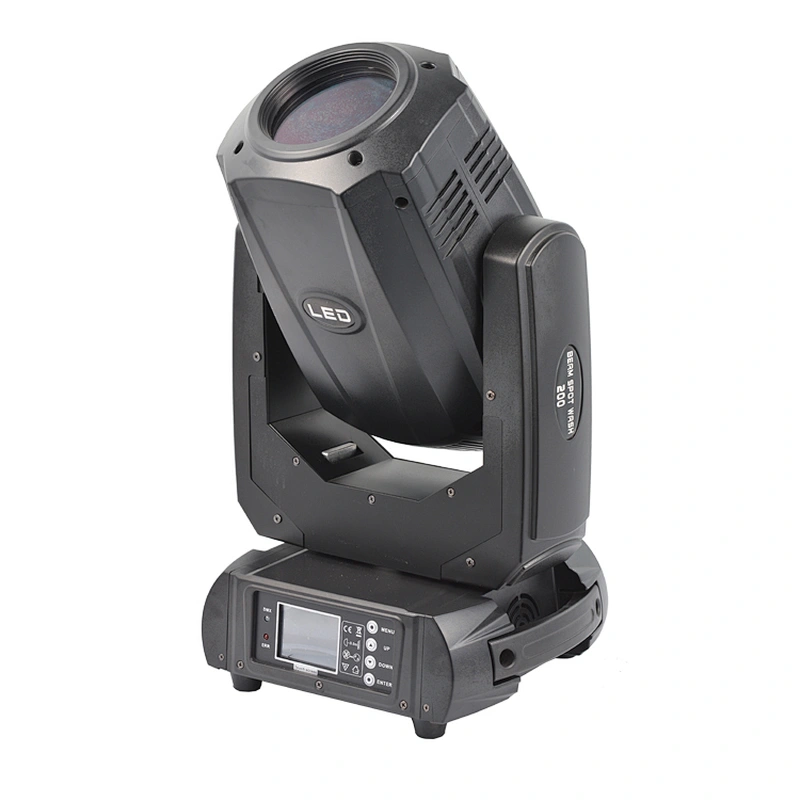

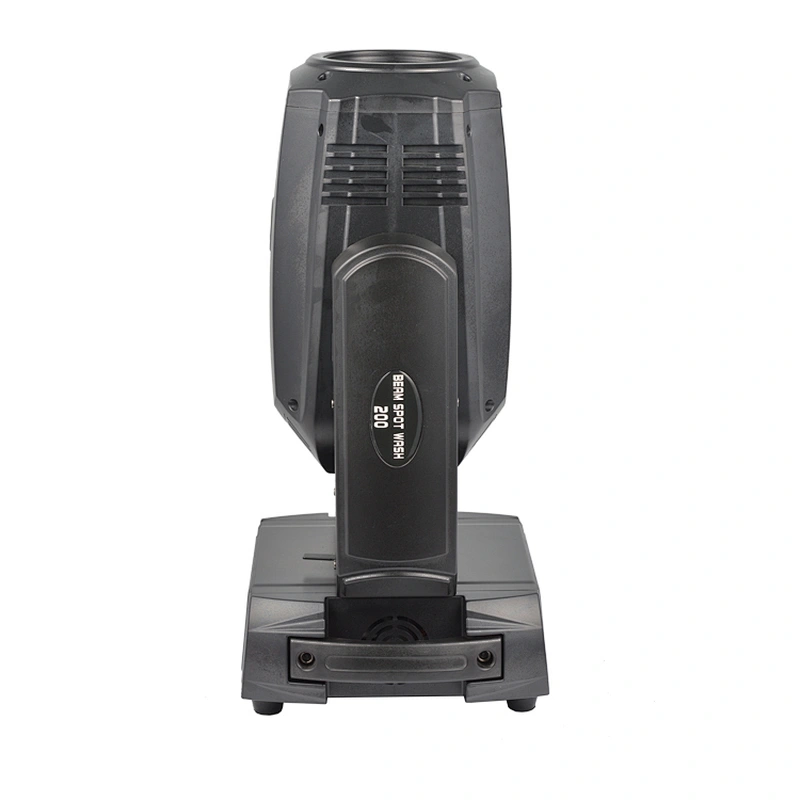

- LED BEAMSPOT 200
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
