- Optional Models
| Model No. | Power Consumption | Light Source | Emitting Color | Beam Angle | DMX Channels | Gross Weight | Packing Size |
| SL-1014-90 | 150W | 90W LED | White | 14° | 16 | 14.8 kg | 370*350*600 mm |
| SL-1014-120 | 180W | 120W LED | White | 14° | 16 | 14 kg | 390*600*500 mm |
- Optical System

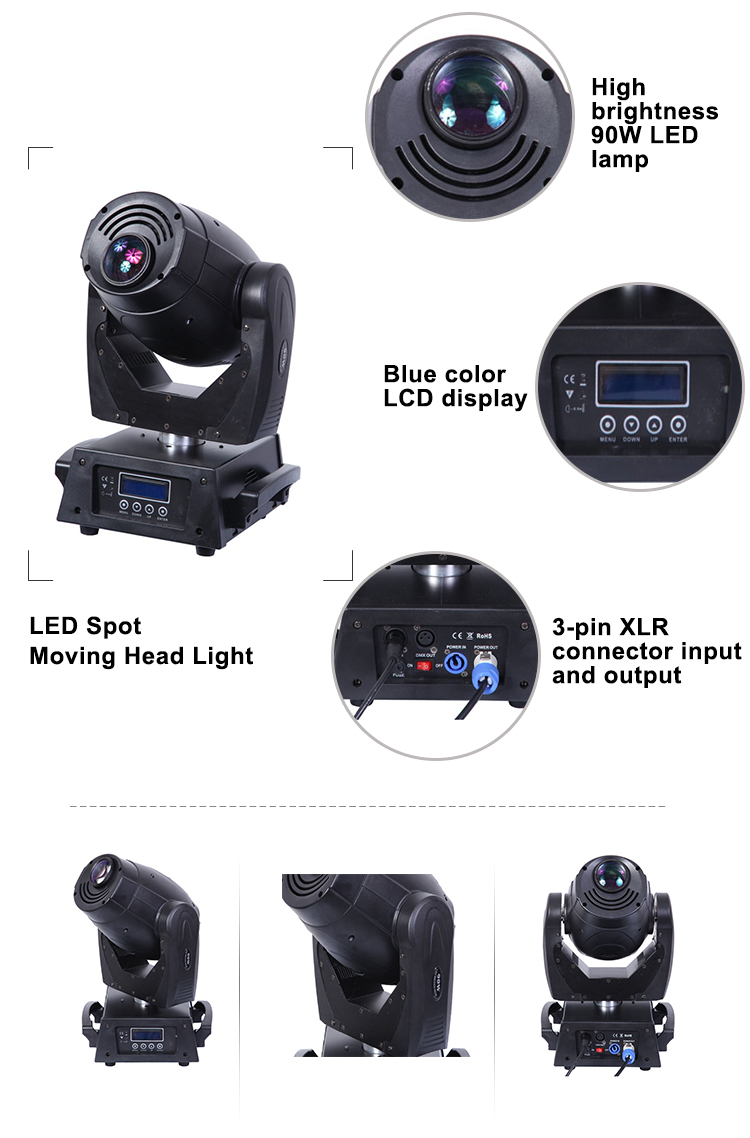

- Light source: 1PCS 90W white LED
- Colour temperature: 6500K
- LED lifespan: 50,000 hours
- Beam angle: 14°
- Lumen: 3600
- CRI=70
- Dynamic Effects
- Colour wheel: 7 color + white
- Rotating gobo wheel：7 rotating gobo(5 glass, 2 metal) + white
- Pattern dimensions: 26.9mm(outer diameter) / 21mm(inner diameter )
- Fixed gobo wheel: 9 fixed gobo + white
- A rotating 3-facet prism
- Bi-directional rainbow effect, speed adjustable
- Linear electronic focusing
- 0-100%electronic dimming
- Shutter:0-18 time/scond high-speed strobe, with random and pulse strobe
- Control and Program
- Blue color LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position automatic correction
- DB rate: 55db(3”)
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 150 W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:330*270*510 mm (13*10.6*20 inch)
- Carton:370(L)*350(W)*600(H) mm (14.6*13.8*23.6 inch)
- Net weight: 13.5 kg (29.8 lbs)
- Gross weight: 14.8 kg (32.6 lbs)

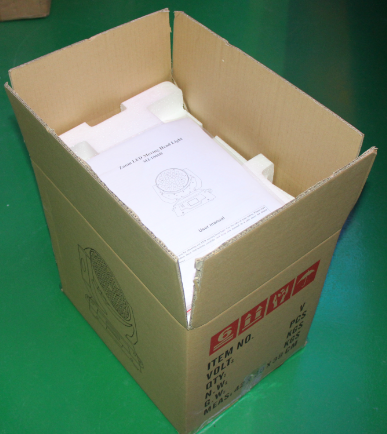

- Packing List

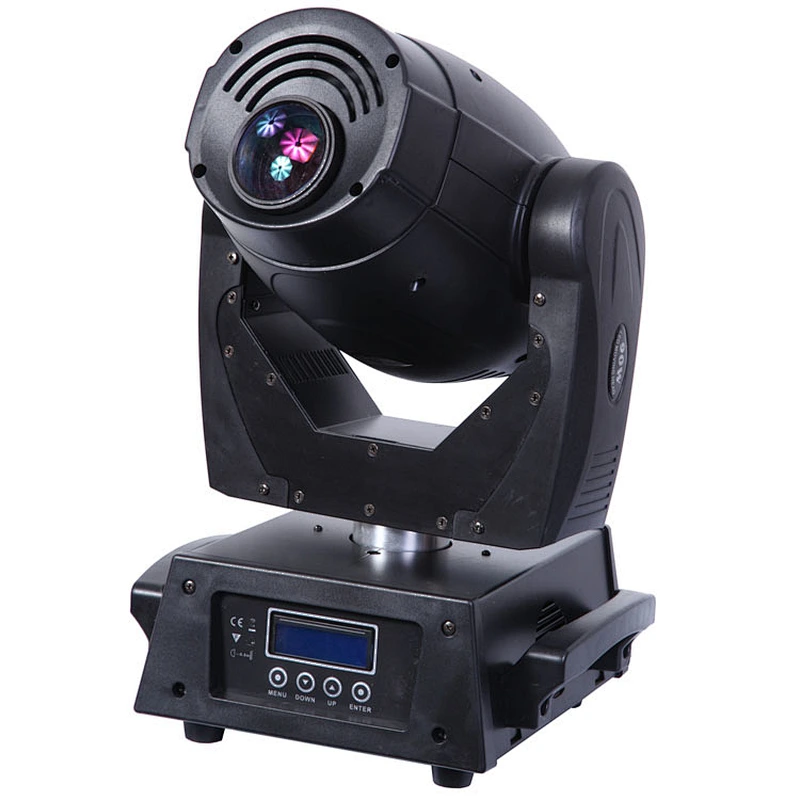

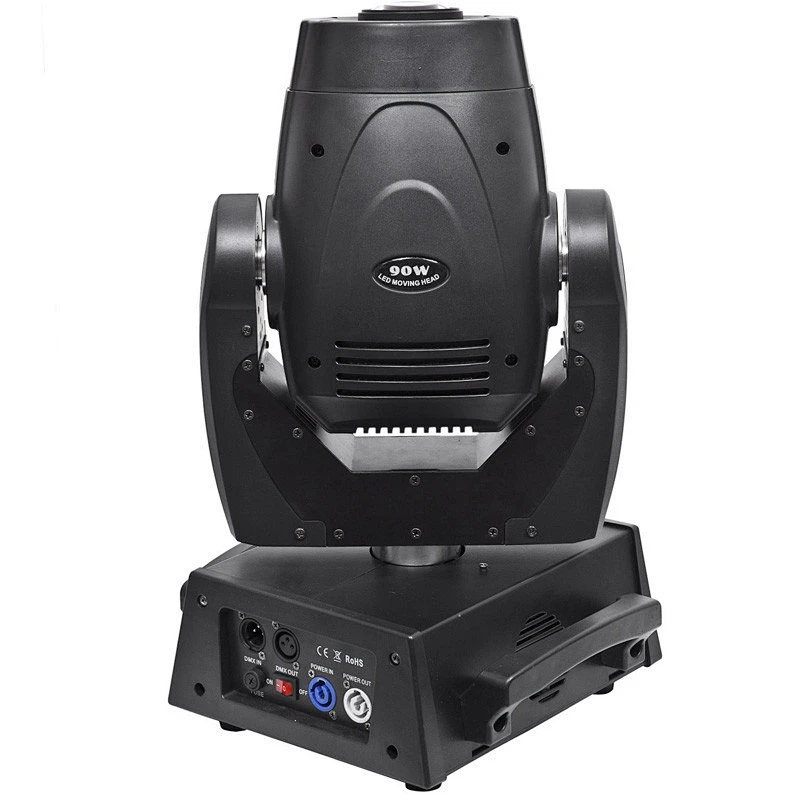

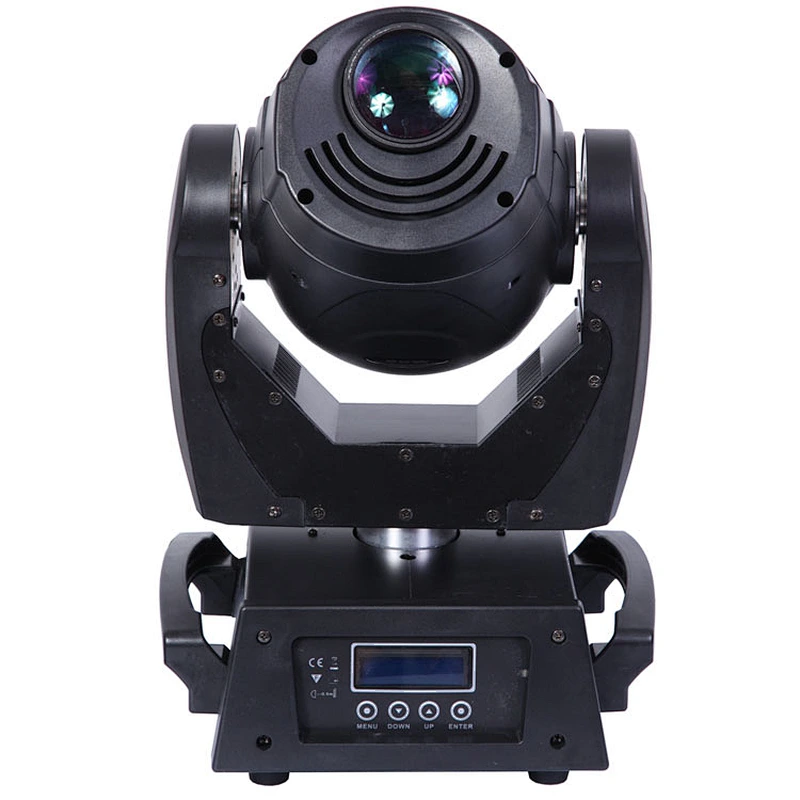

- LEDSPOT 90
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1 (630*410*590 mm=24.8*16.1*23.2 inch, 48 kg=105.8 lbs)
- Clamp
- Safety rope
- DMX wire
