- Dynamic Effects
- Colour wheel: 7 colors + open

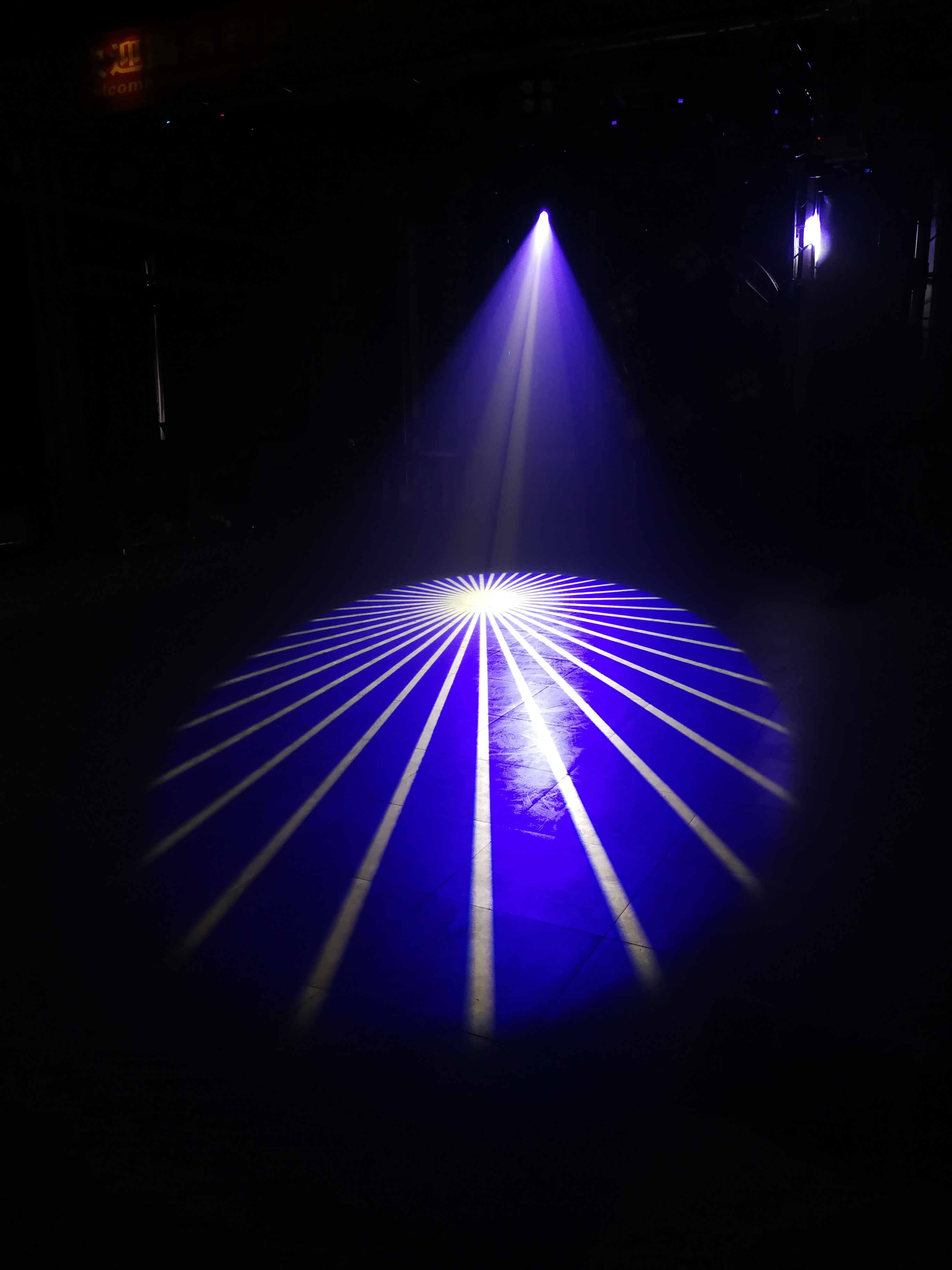

- Rotating gobo wheel：7 rotating and interchangeable glass gobos + open
- Gobo size: 26.9mm (external dimensions)/21mm (inner dimensions)

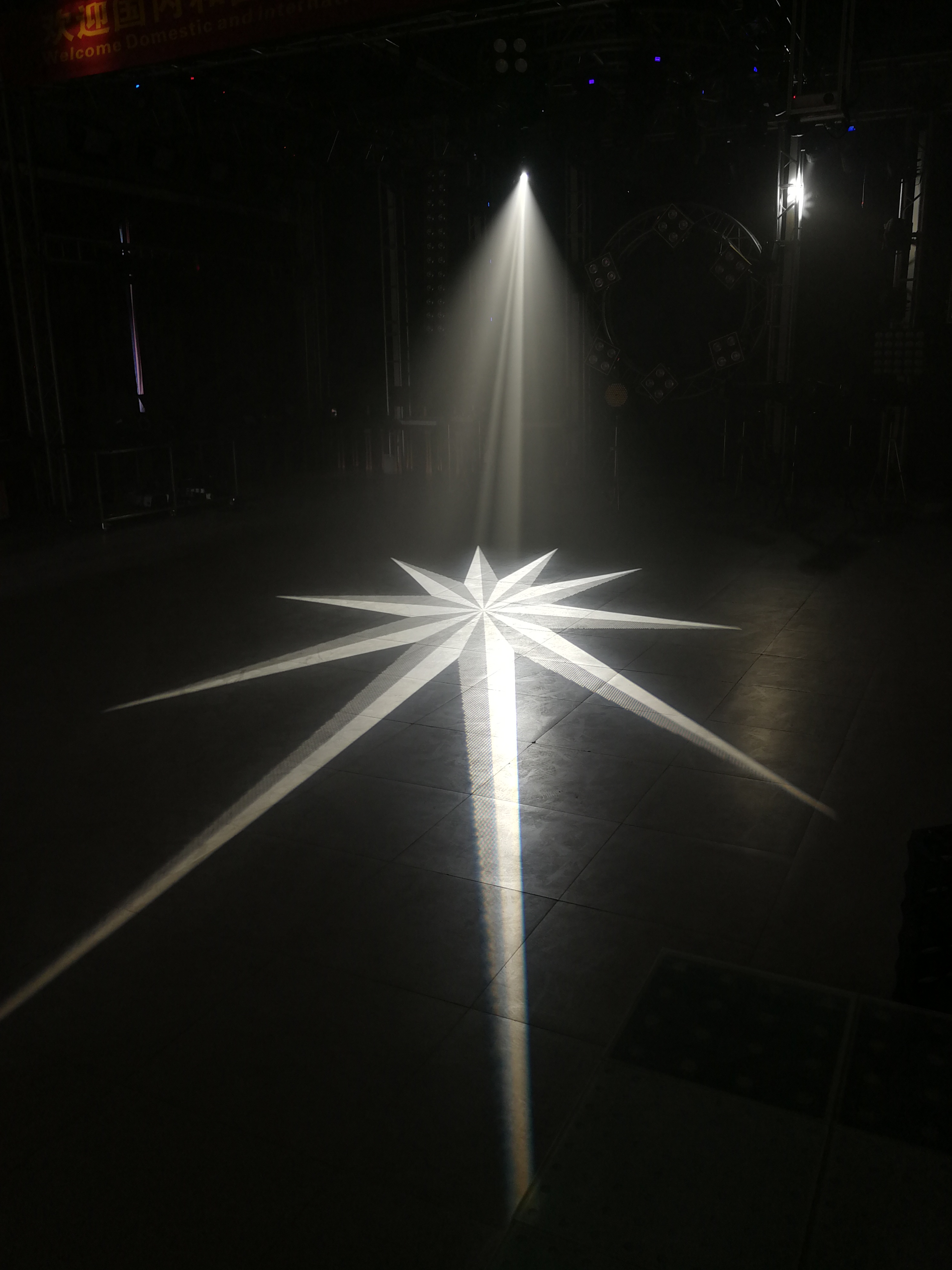

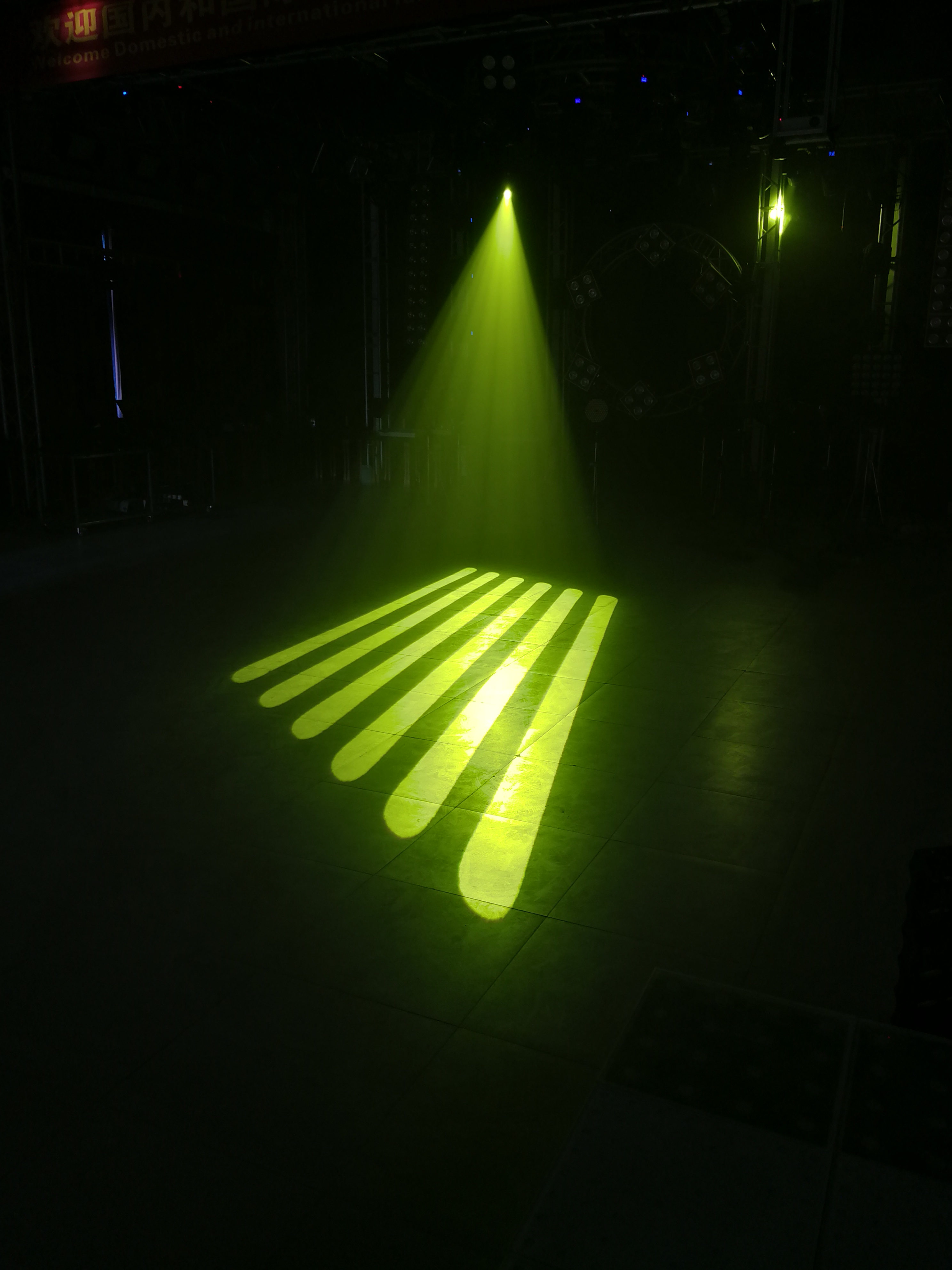

- Fixed gobo wheel: 8 fixed gobos + open
- A 3-facet prism
- Variable direction rainbow effect with speed adjustable
- Linear frost filter ( effect for wash)
- Gobo overlay (gobo morphing)
- Stream effect
- Dithering effect
- 2m-15m electric focus
- 0-100% smooth linear dimming system
- Shutter:1-25 time/scond high-speed strobe, variable speed
- Control and Program

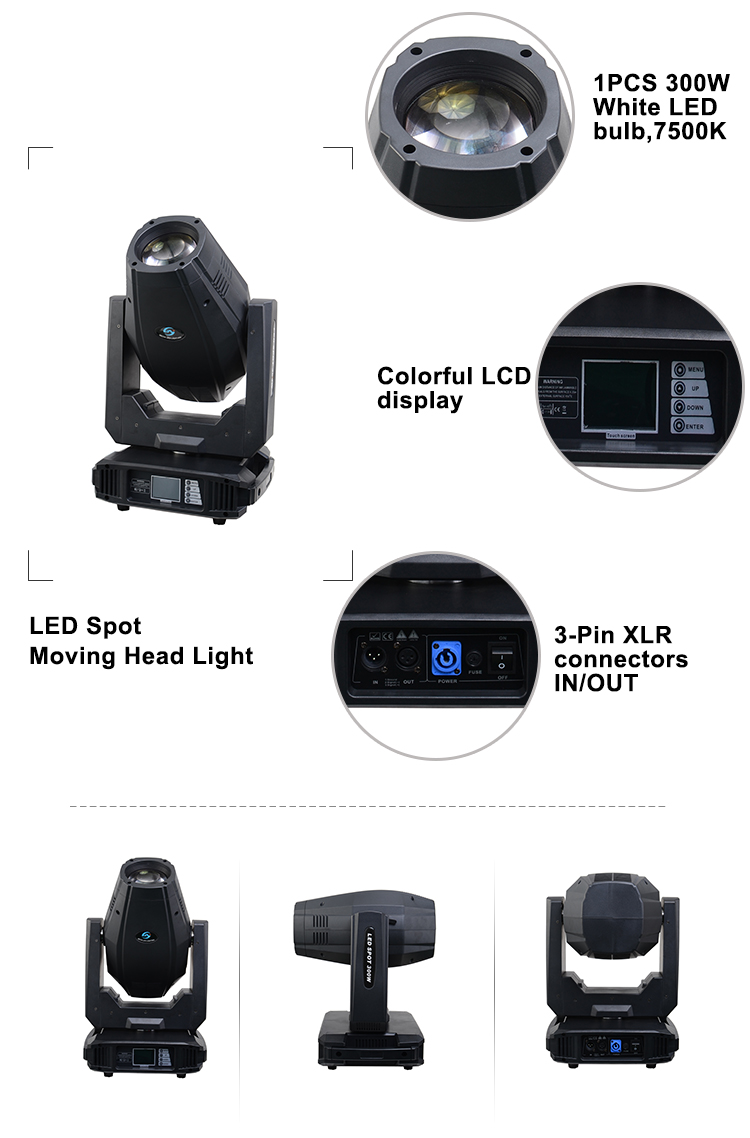

- Colorful background LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 20/25 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Motorized linear IRIS
- DB rate: 55db(3”)
- Electrical Specification and Connections
- Power supply: Electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 380 W

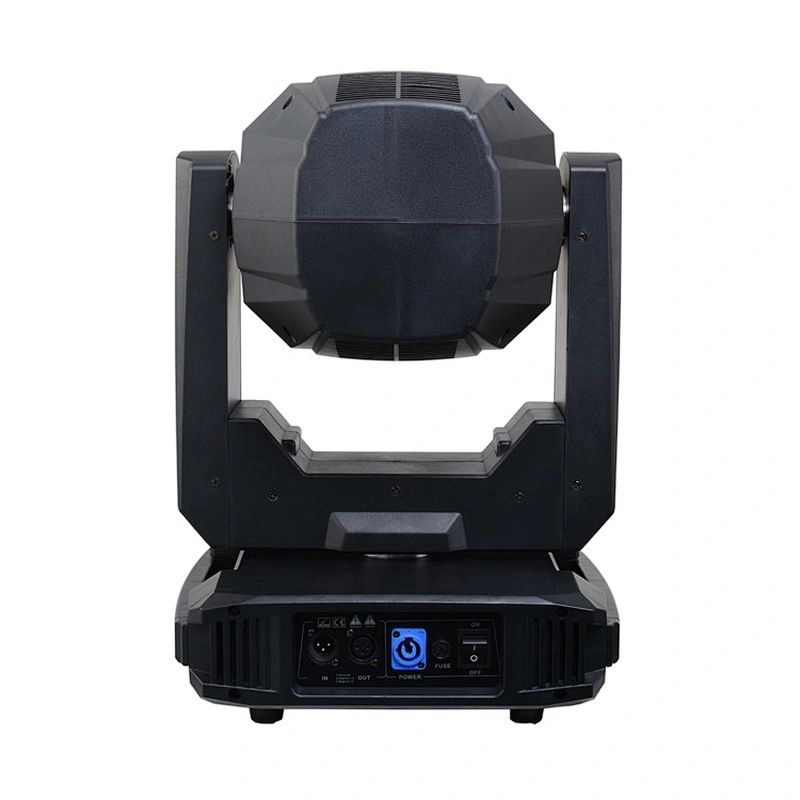

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2pcs 1/4 turn fastening Omega clamps
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product:365*290*620 mm (14.4*11.4*24.4 inch)

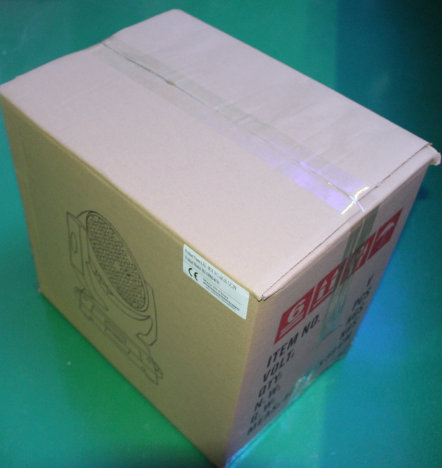

- Carton:450(L)*430(W)*570(H) mm (17.7*16.9*22.4 inch)
- Net weight: 18.5 kg (40.8 lbs)
- Gross weight: 21 kg (46.3 lbs)

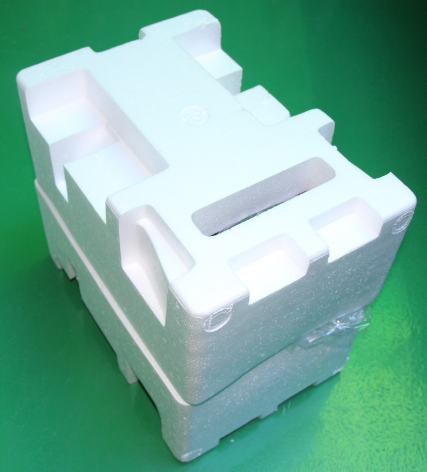

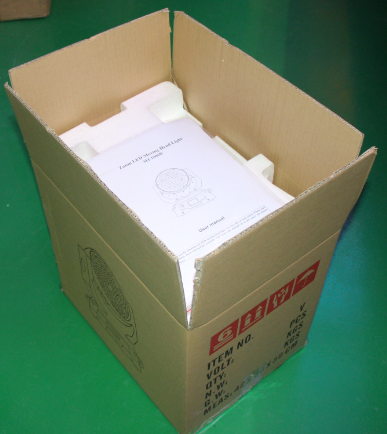

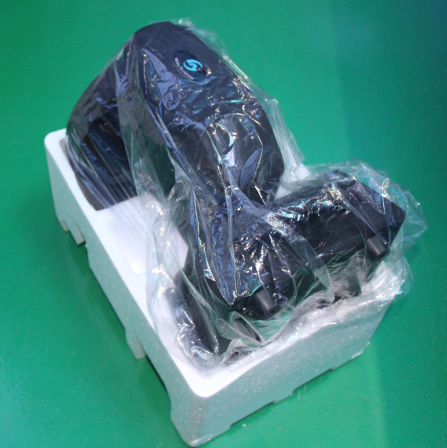

- Packing List

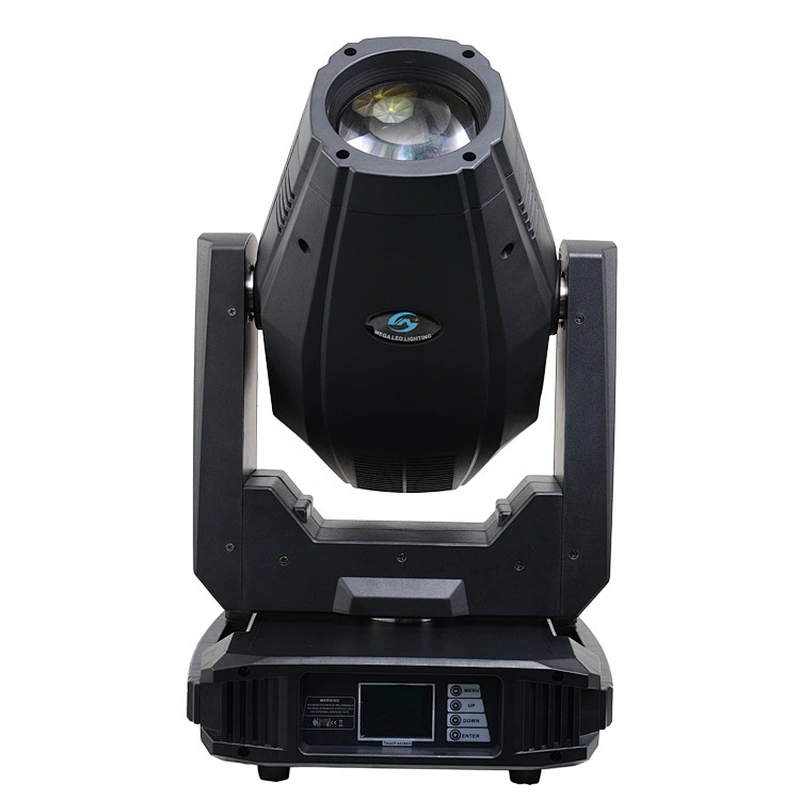

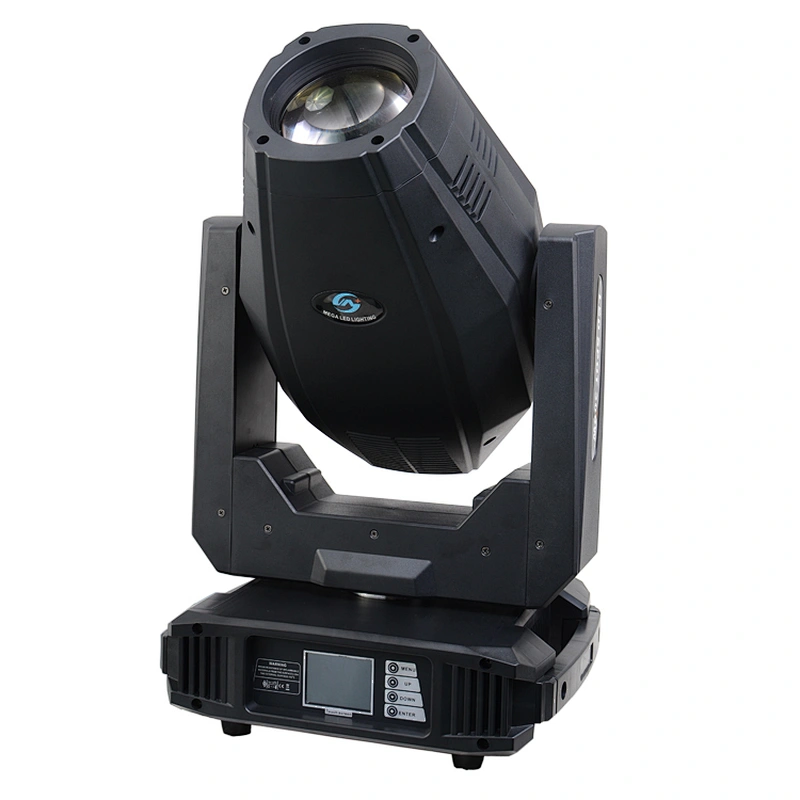

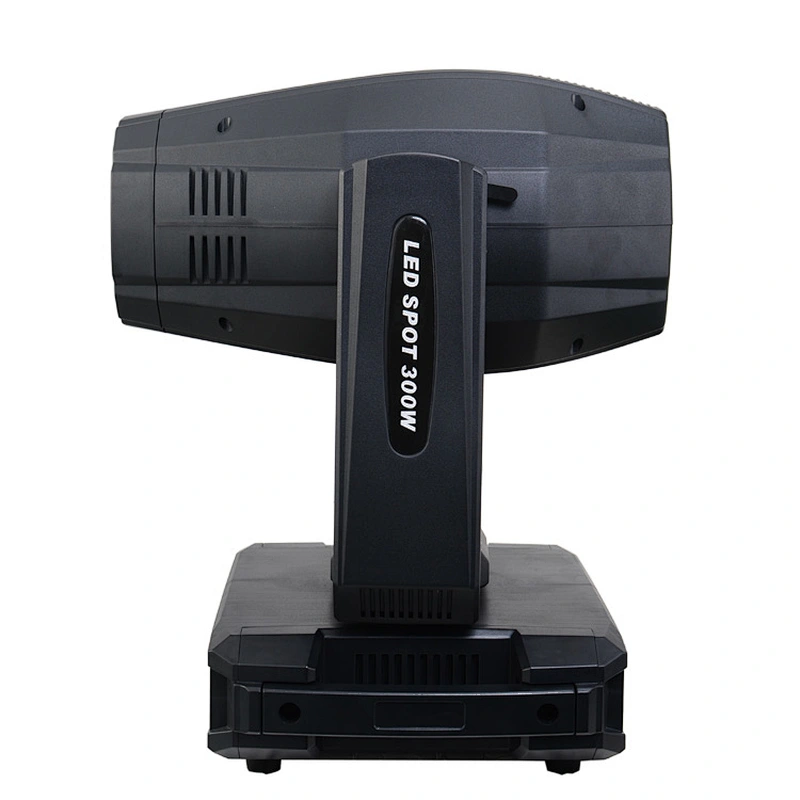

- LEDSPOT 300
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1 (790*470*810 mm=31.1*18.5*31.9 inch, 69 kg=152.1 lbs)
- Clamp
- Safety rope
- DMX wire
