WALLWASHER 4IN1

. Optical System

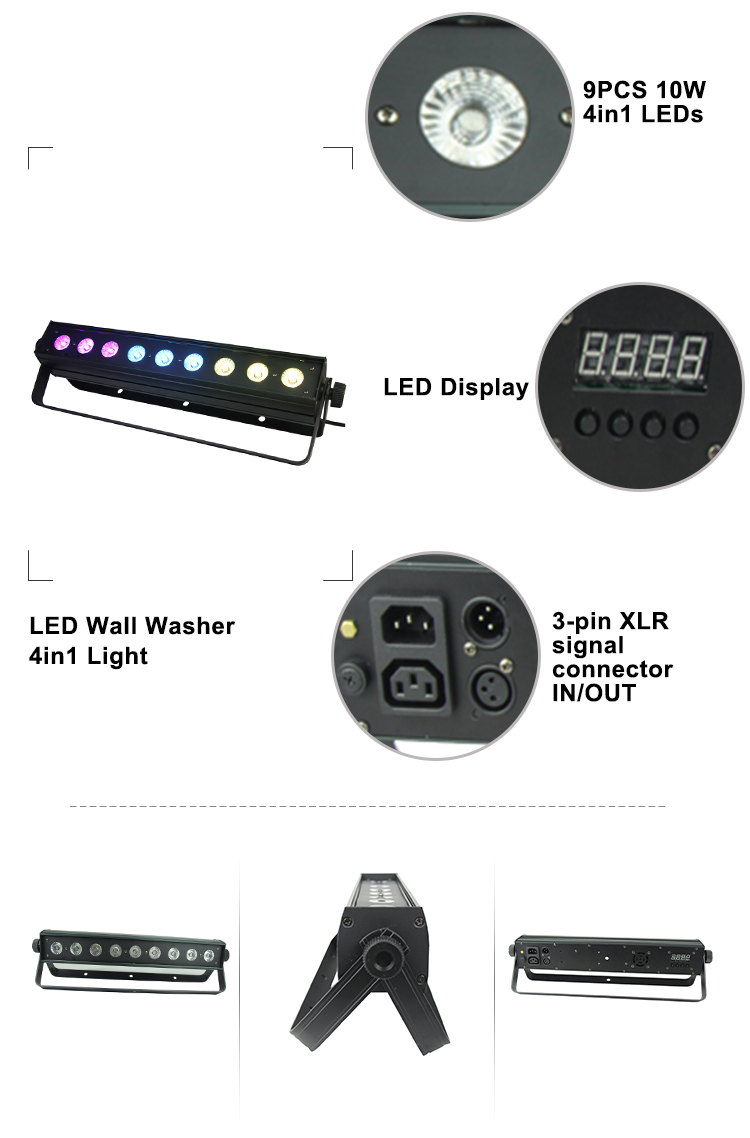

1. Light source:9X10W 4IN1 LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 25°(45° optional)

• Dynamic Effects

1. Colour rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect
5. LED pixel control

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Power connector in/out: IEC standard
3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 560*85*85 mm (22.0*3.3*3.3inch)
2. Box: 605*130*200 mm (23.8*5.1*7.9inch)
3. Net weight: 3.5 kg (7.7 lbs)
4. Gross weight: 4.2 kg (9.3 lbs)
5. Carton (10pcs-in-1): 1160*630*400mm, 60kg (45.7*24.8*15.7 inch, 132.3lbs)

• Packing List

1. MATRIX BAR 910
2. User manual
3. Power cable
