- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Lens Angle | Lens Optional | DMX Channels | Length |
| MJ-2007-30 9P1W25DRGB | 9W | 9*1W | RGB | 25° | 15°, 45°, 60° | 3/7CH | 330mm |
| MJ-2007-30 9P3W25DRGB | 27W | 9*3W | RGB | 25° | 15°, 45°, 60° | 3/7CH | 330mm |
| MJ-2007-30 9P1W25DR | 9W | 9*1W | R | 25° | 15°, 45°, 60° | 3/7CH | 330mm |
| MJ-2007-30N 9P1W25D3200K | 9W | 9*1W | 3200K | 25° | 15°, 45°, 60° | 330mm |
- Optical System
- Light source: 9pcs 1/3W LED
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25°
- Dynamic Effects
- LED rainbow effect
- LED shutter effect
- 0-100% smooth linear dimming system
- Control and Program
- Protocol: DMX512, master-slave, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 330*130*145mm (13*5.1*5.7inch)
- Carton: 390*130*145 mm (15.4*5.1*5.7 inch)
- Net weight: 2 kg (4.4 lbs)
- Gross weight:2.2 kg (4.9 lbs)
- Carton (8pcs-in-1): 555*410*325mm, 22kg (21.9*16.1*12.8 inch, 48.5lbs)
- Packing List

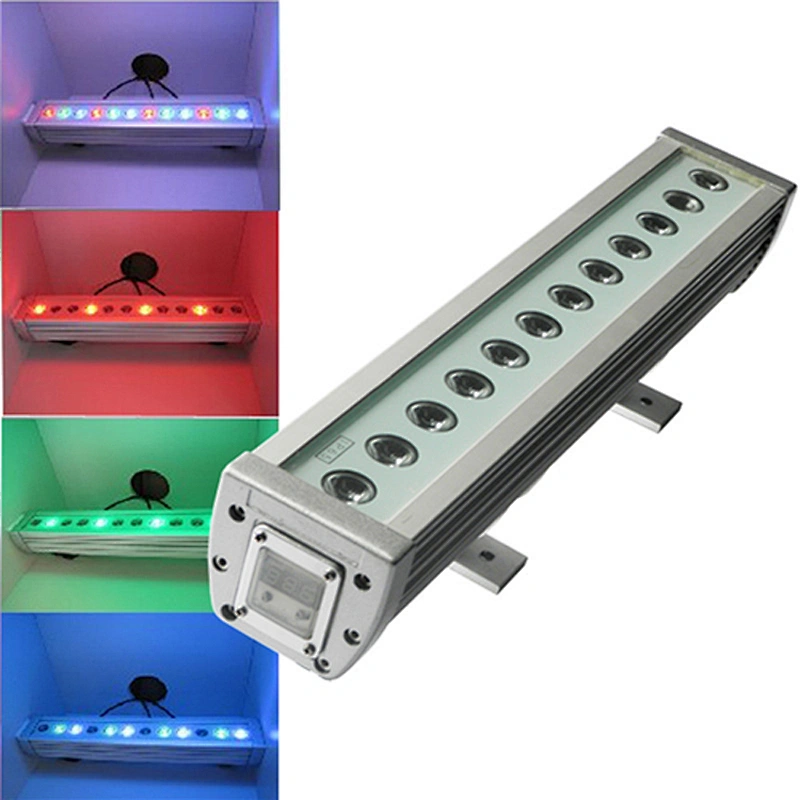

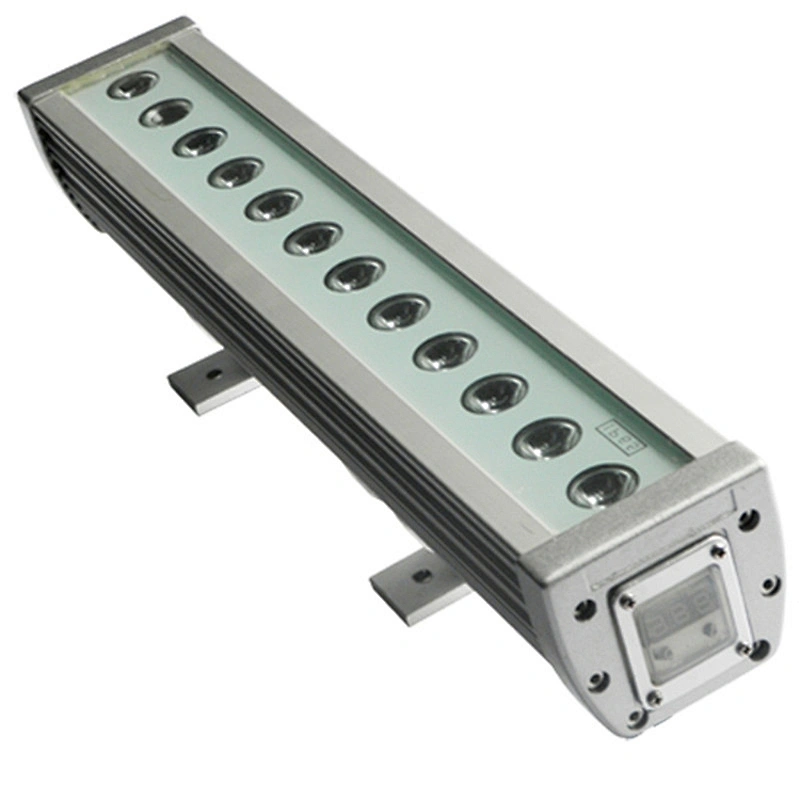

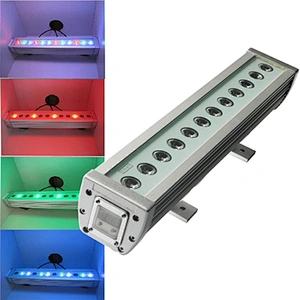

- LED WALL WASHER 9
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
