- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Lens Angle | Lens Optional | DMX Channels |
| MJ-2006A 1W15DRGB | 48W | 36*1W | RGB | 15° | 25°, 45°, 60° | 3CH |
| MJ-2006A 1W25DRGB | 48W | 36*1W | RGB | 25° | 15°, 45°, 60° | 3CH |
| MJ-2006A 1W25DR | 48W | 36*1W | R | 25° | 15°, 45°, 60° | 3CH |
| MJ-2006A 1W25DB | 48W | 36*1W | B | 25° | 15°, 45°, 60° | 3CH |
| MJ-2006AN 1W25DB | 48W | 36*1W | B | 25° | 15°, 45°, 60° |
- Optical System

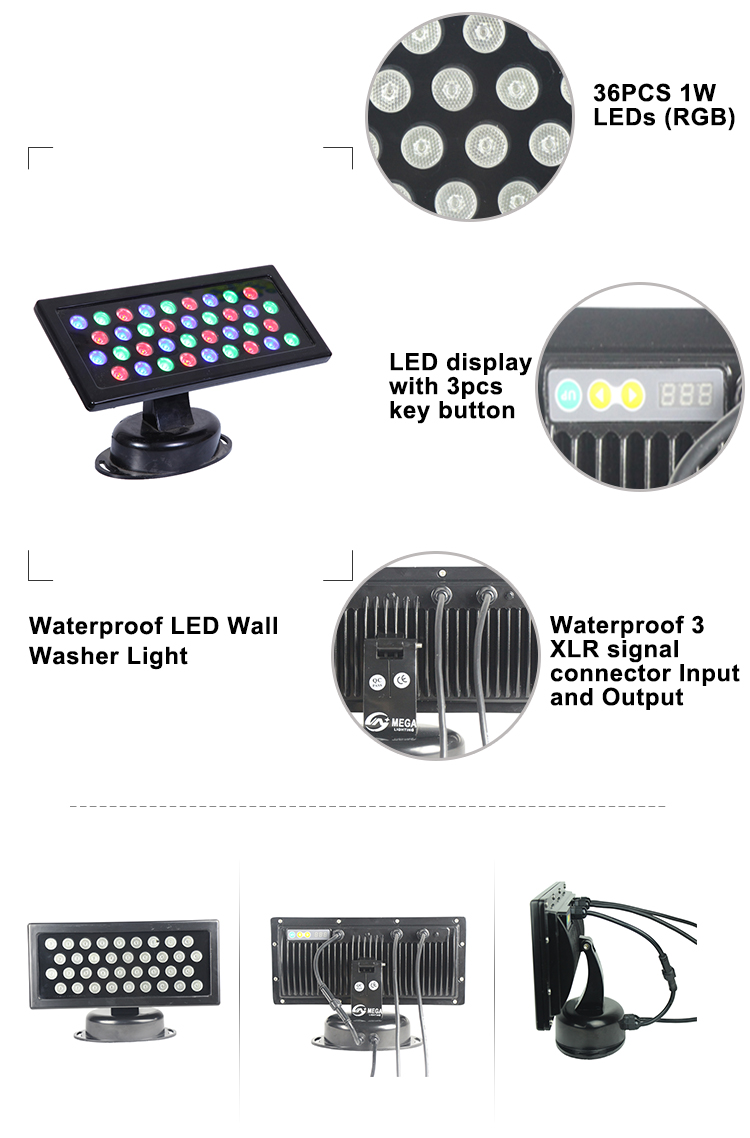

- Light source: 36pcs 1W LED
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25°
- Dynamic Effects
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- Control and Program
- LED display
- Protocol: DMX512, master-slave, sound control, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 335*150*220 mm (13.19*5.90*8.66inch)
- Carton: 400*150*270 mm (15.75*5.90*10.63 inch)
- Net weight: 3.5 kg (7.2 lbs)
- Gross weight: 4 kg (8.8 lbs)
- Carton (3pcs-in-1): 480*415*290mm, 10.5kg (15.9*16.3*11.4 inch, 23.1 lbs)
- Die-cast aluminum housing and metal base
- Packing List

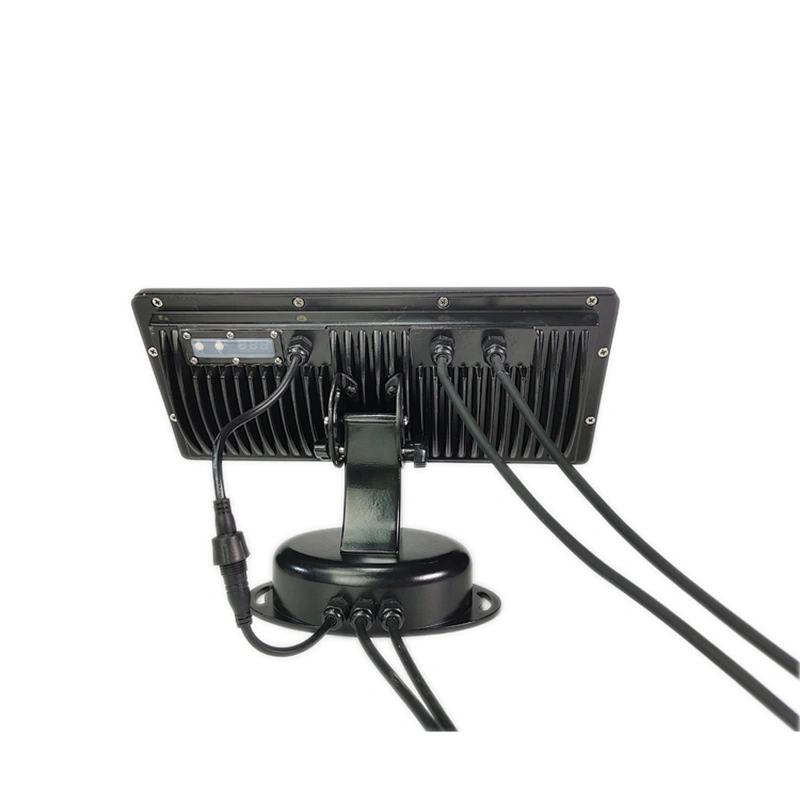

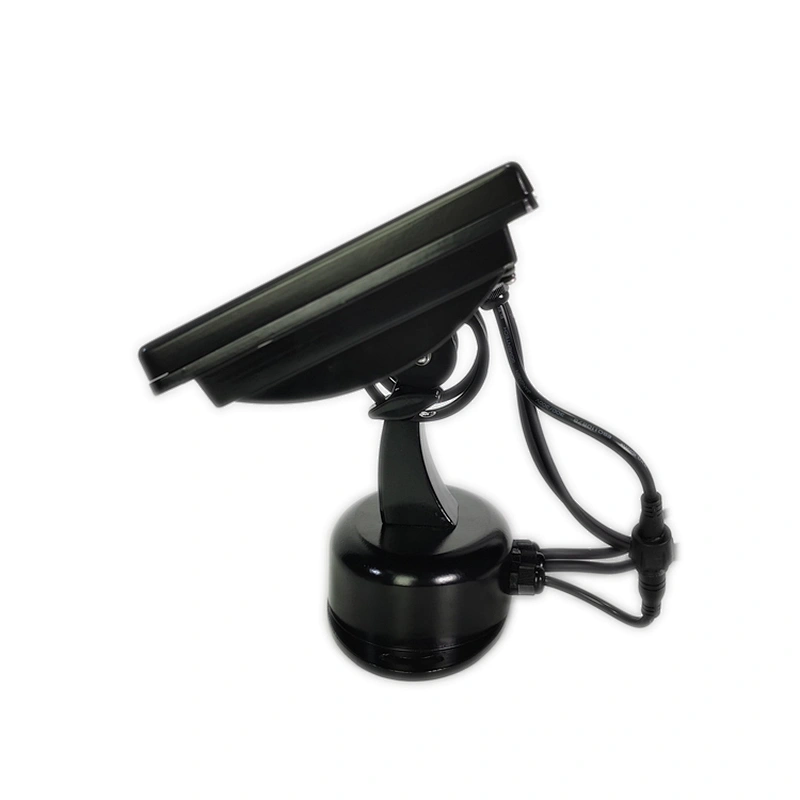

- LED WALL WASHER 361
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- Extensional DMX wire
