• Optical System

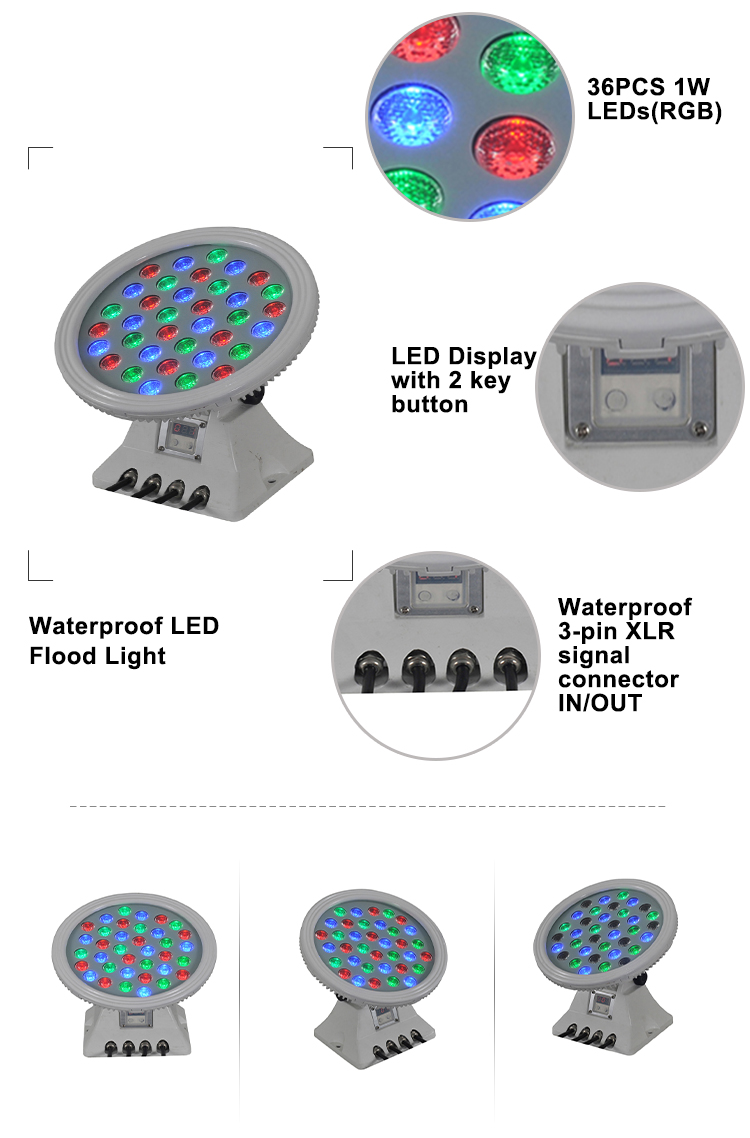

1. Light source: 36pcs 1W LED
2. LED lifespan: min. 50,000 - 80,000 hours
3. Lens angle: 25° (15°，45°，60° optional)

• Dynamic Effects

1. LED rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable

• Control and Program

1. Protocol: DMX512, master-slave, sound control, auto
2. Built-in pre-programs
3. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC 90-240 V, 50-60 Hz
3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

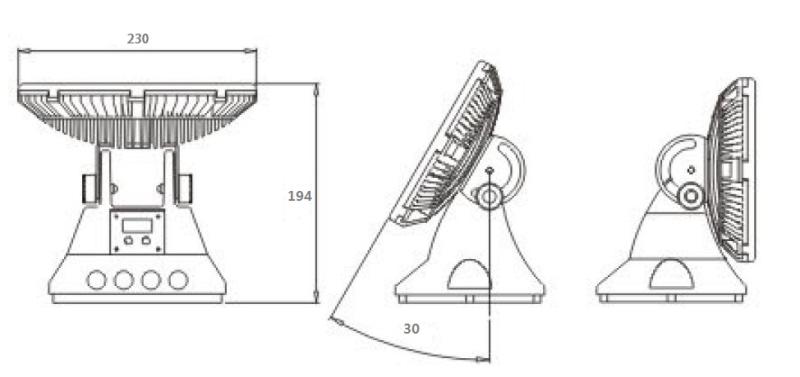

1. Product: 280*215*290mm (11.0*8.5*11.4inch)
2. Carton: 250*250*245 mm (9.8*9.8*9.6 inch)
3. Net weight: 3.5 kg (7.7 lbs)
4. Gross weight:4.5 kg ( 9.9lbs)

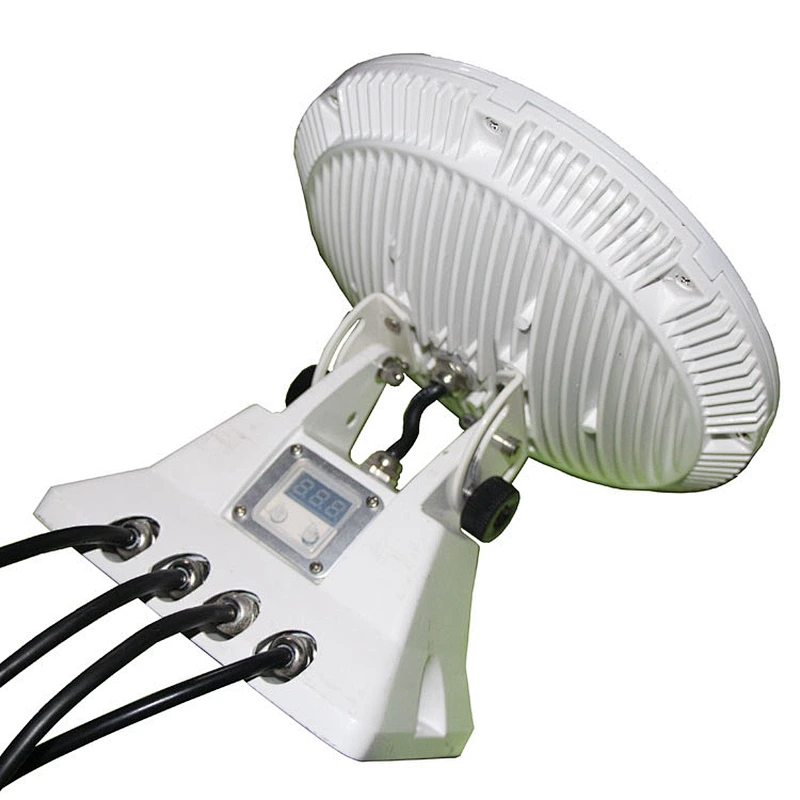

5. Die-cast Aluminum housing and metal base

• Packing List

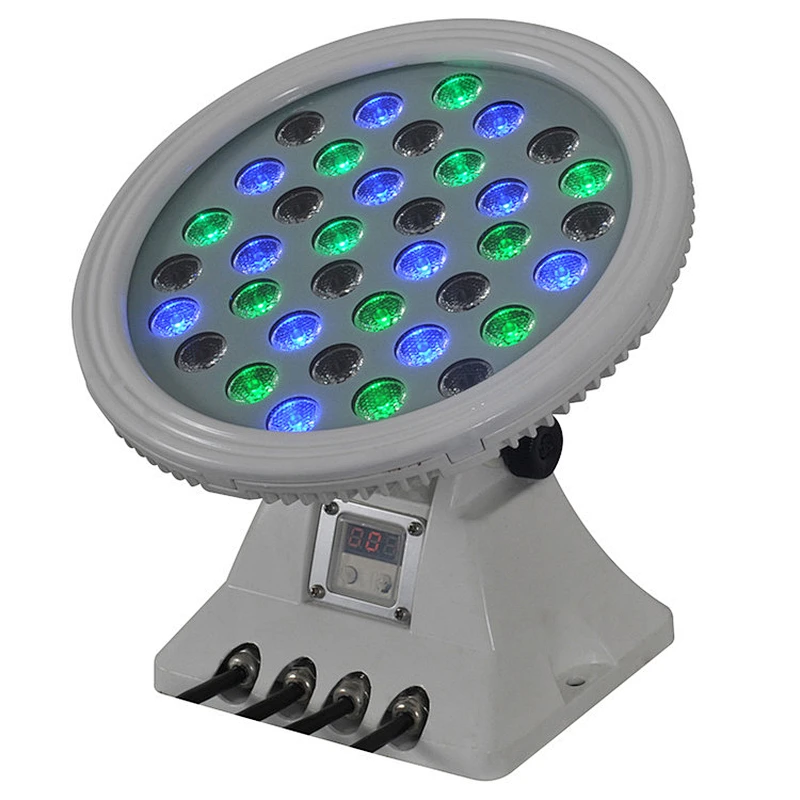

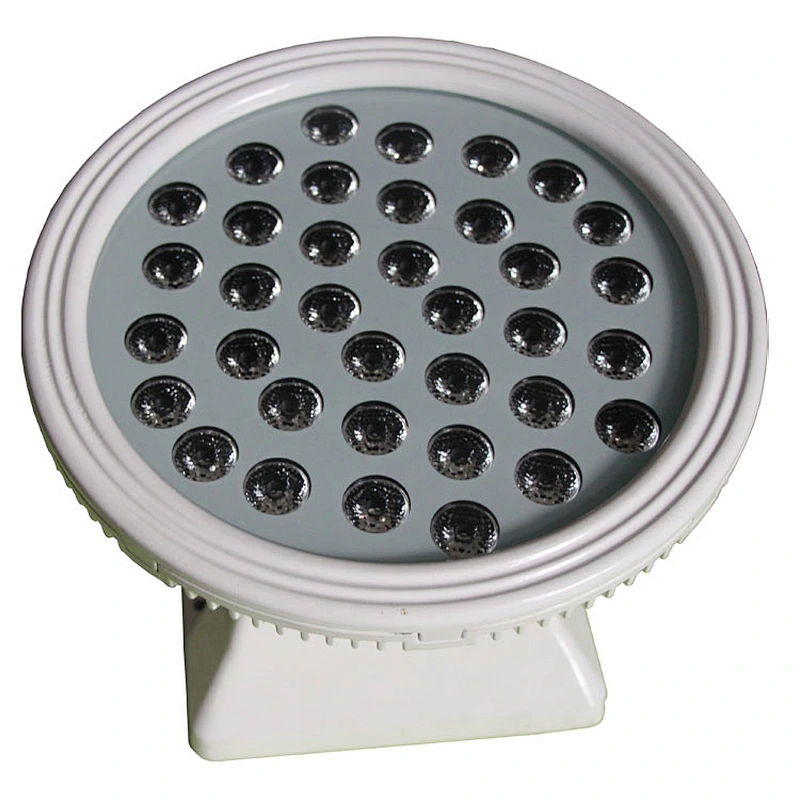

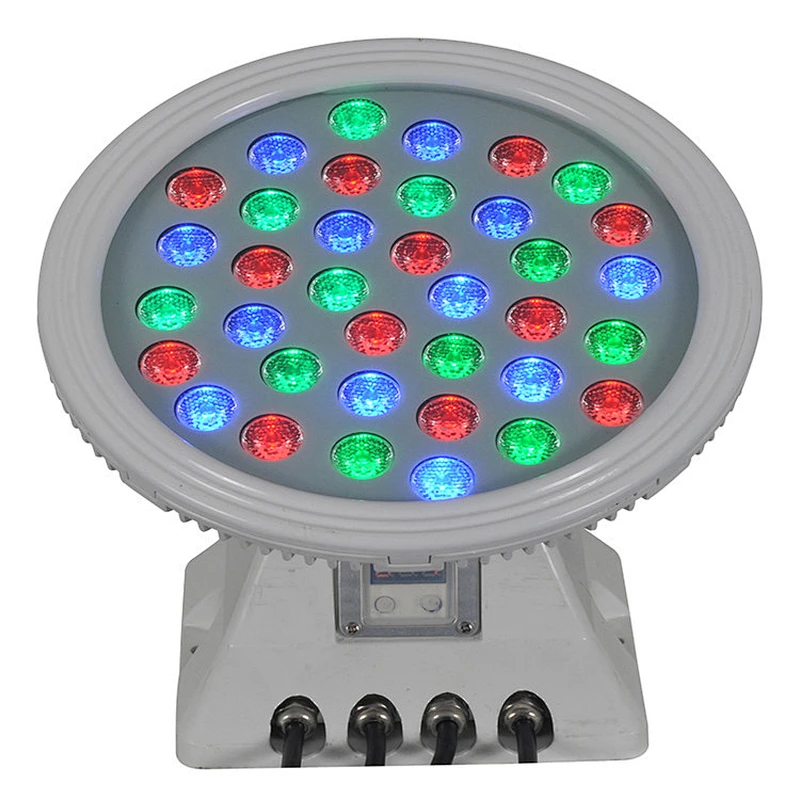

1. LED WALL WASHER 361
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

• Optional Accessories

1. Flight case
2. Clamp
3. Safety rope
4. Extensional DMX wire

、
