.Optional Models
| Model No. | Power | Light Source | Emitting Color | Zoom Angle | DMX Channels |
| MJ-3331A 150/200/300WW | 200/260/360 | 1*150/200/300W | 3200K | 15°-50° | 1/3CH |
| MJ-3331AZ 150/200/300WW | 220/280/380 | 1*150/200/300W | 3200K | 15°-50° | 2/5CH |
| MJ-3331A 150/200/300CW | 200/260/360 | 1*150/200/300W | 5600K | 15°-50° | 1/3CH |
| MJ-3331AZ 150/200/300CW | 220/280/380 | 1*150/200/300W | 5600K | 15°-50° | 2/5CH |
| MJ-3331C200-2IN1 | 260 | 1*200W | 2IN1 | 15°-50° | 2/5CH |
| MJ-3331CZ200-2IN1 | 280 | 1*200W | 2IN1 | 15°-50° | 3/7CH |
| MJ-3331C200-4IN1 | 260 | 1*200W | 4IN1 | 15°-50° | 4/8CH |
| MJ-3331CZ200-4IN1 | 280 | 1*200W | 4IN1 | 15°-50° | 5/10CH |
.Optical System

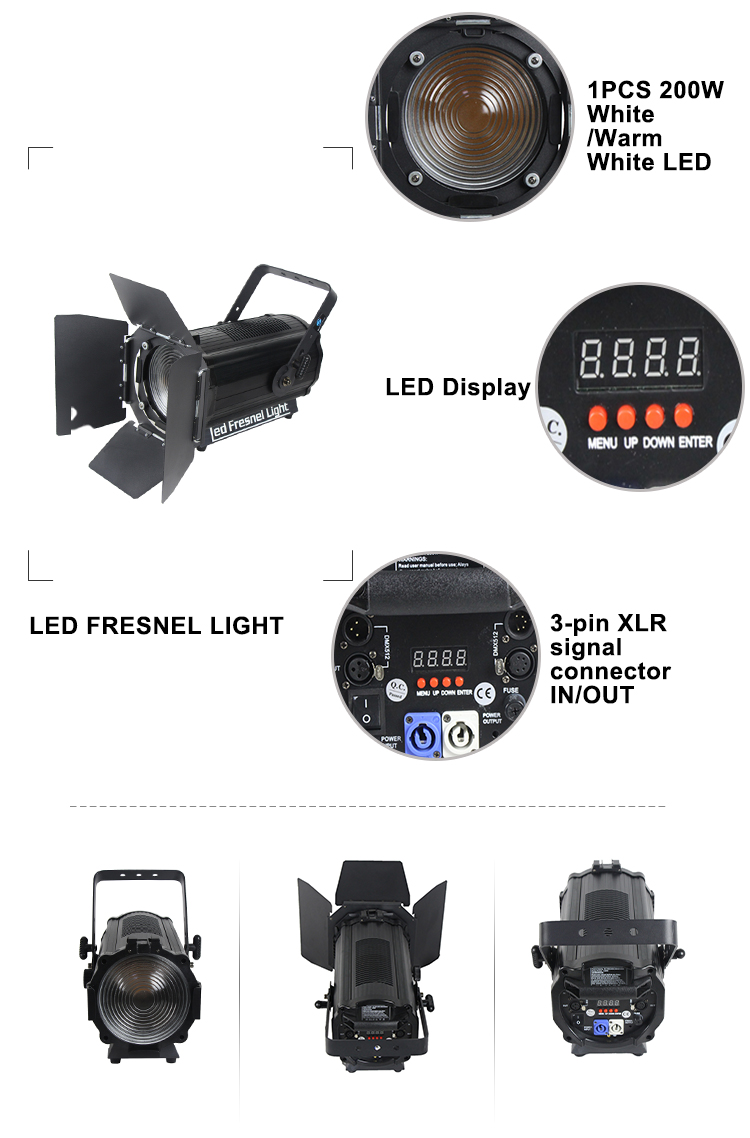

- Light source:1pcs 150/200/300W LED
- LED life expectancy: 50,000 - 80,000 hours
- Color Rendering Index(CRI) Ra≥90
- Dynamic Effects
- Manual zoom angle: 15°-50°
- 0-100% smooth linear dimming system
- Shutter: 1-18times/sec high speed strobe, speed adjustable
- Control and Program
- DMX512, master-slave, sound control, auto programs
- Built-in pre-program
- Marco function
- Electrical Specification and Connections
- Input voltage: AC90-240 V, 50-60 Hz, auto ranging

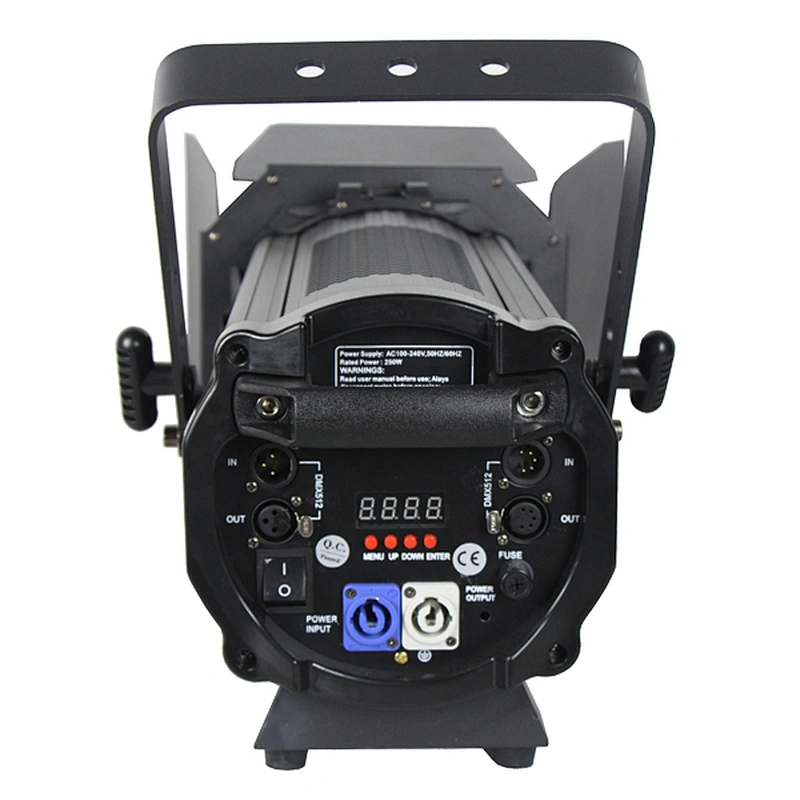

- Power connector in/out: Powercon
- Data connector in/out: 3-pin and 5-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE, RoHS,
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 475*285*260mm (18.7*11.2*10.2inch)
- Box: 580*325*320mm (22.8*12.8*12.6inch)
- Net weight: 8.4kg (18.5 lbs)
- Gross weight: 9.8 kg (21.6 lbs)
- Packing List
- Fresnel 150
- User manual
- Power cable
- Optional Accessories
- Flight case:4pcs-in-1
- Clamp
- Safety rope
- DMX wire
