English
.Optional Models
| Model No. | Power | Light Source | Emitting Color | Zoom Angle | DMX Channels |
| MJ-3332A 100WW | 130 | 1*100W | 3200K | 15°-50° | 1/3CH |
| MJ-3332A 100CW | 130 | 1*100W | 5600K | 15°-50° | 1/3CH |
| MJ-3332C100-2IN1 | 130 | 1*100W | 2IN1 | 15°-50° | 2/5CH |
| MJ-3332C100-4IN1 | 130 | 1*100W | 4IN1 | 15°-50° | 4/8CH |
.Optical System
- Light source:1pcs 100W LED
- LED life expectancy: 50,000 - 80,000 hours
- Color Rendering Index(CRI) Ra≥90
- Dynamic Effects
- Manual zoom angle: 15°-50°
- 0-100% smooth linear dimming system
- Shutter: 1-18times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program
- DMX512, master-slave, sound control, auto programs
- Built-in pre-program
- Marco function
- Electrical Specification and Connections
- Input voltage: AC90-240 V, 50-60 Hz, auto ranging
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE, RoHS,
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 280*190*420mm (11.0*7.5*16.5inch)
- Box: 336*278*334mm (13.2*10.9*13.1inch)
- Net weight: 5.0kg (11.0 lbs)
- Gross weight: 6.5 kg (14.3 lbs)
- Packing List

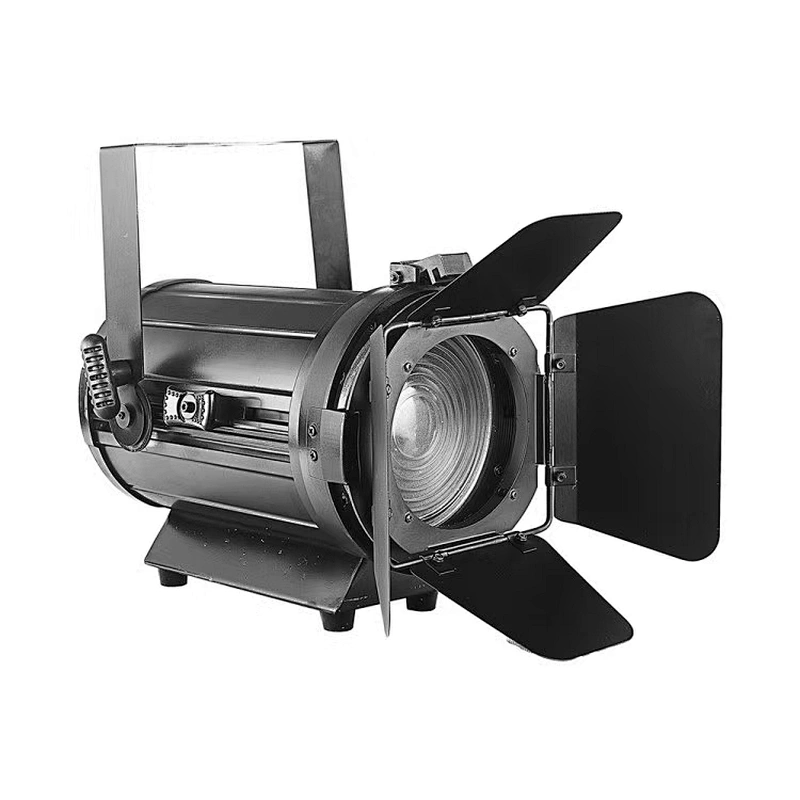

- Fresnel 100
- User manual
- Power cable
- Optional Accessories
- Flight case:4pcs-in-1
- Clamp
- Safety rope
- DMX wire
