- Optical System

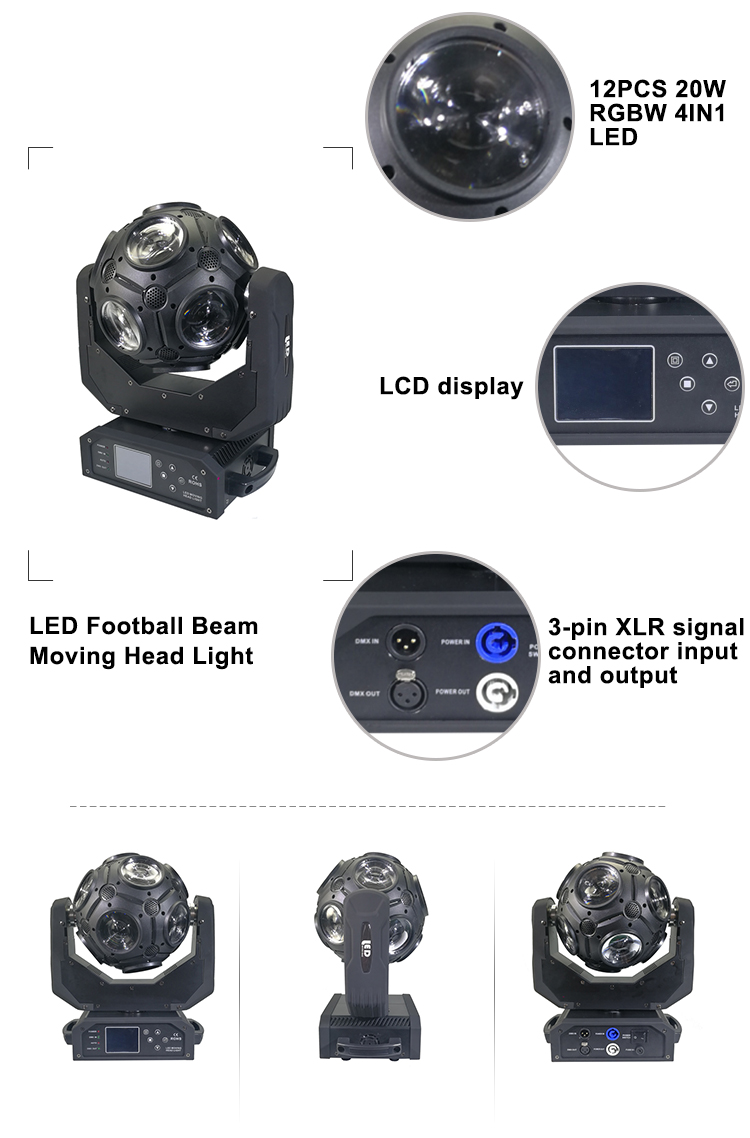

- Light source: 12PCS 20W RGBW 4IN1 LED
- LED lifespan: 50,000 hours
- Beam angle: 3°
- Dynamic Effects
- Pixel control: 12 pixel (each LED as a pixel), individually controllable
- 0-100% smooth linear dimming
- Shutter: 1-25 times/s strobe, random and plus strobe
- Control and Program

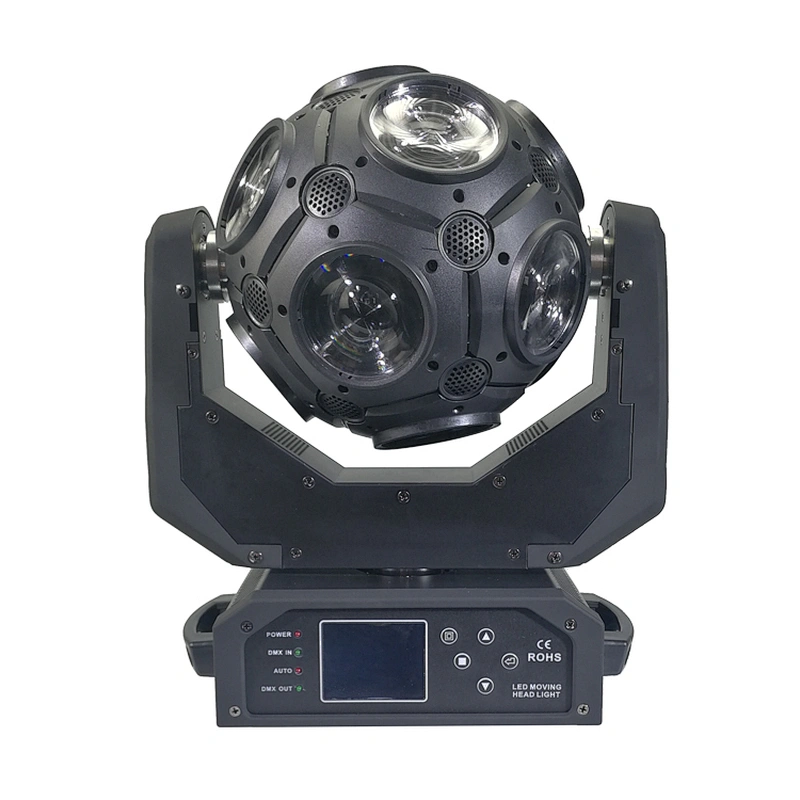

- LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 21 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement:360° endless rotation
- Tilt movement:360° endless rotation
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 300W

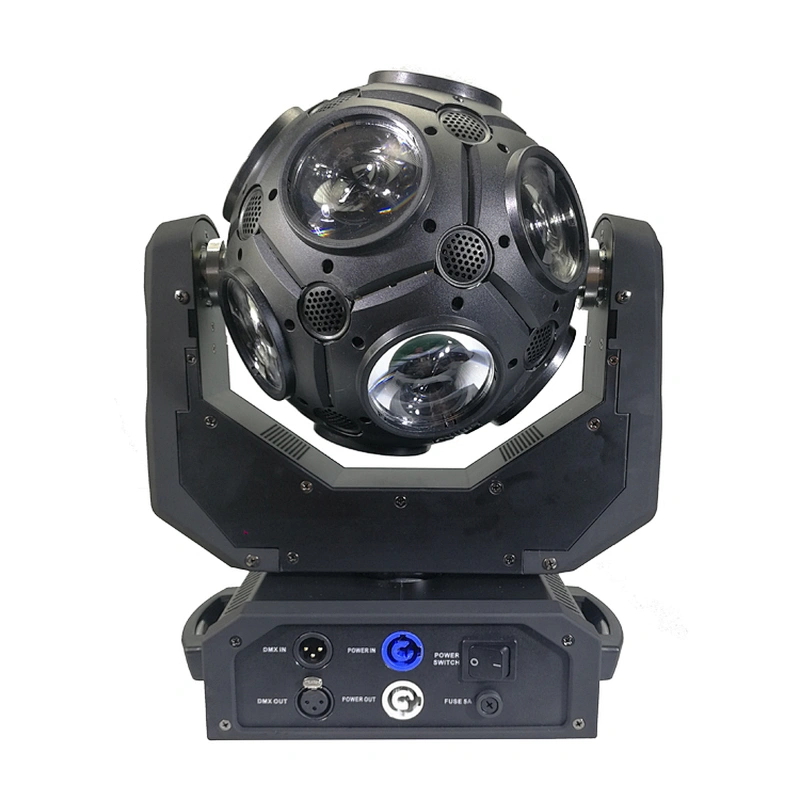

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 340*240*370mm (13.4*9.4*14.6 inch)
- Carton: 375*285*470mm (14.8*11.2*18.5 inch)
- Net weight: 6.9 kg (15.2 lbs)
- Gross weight: 8.2kg (18.1 lbs)
- Packing List

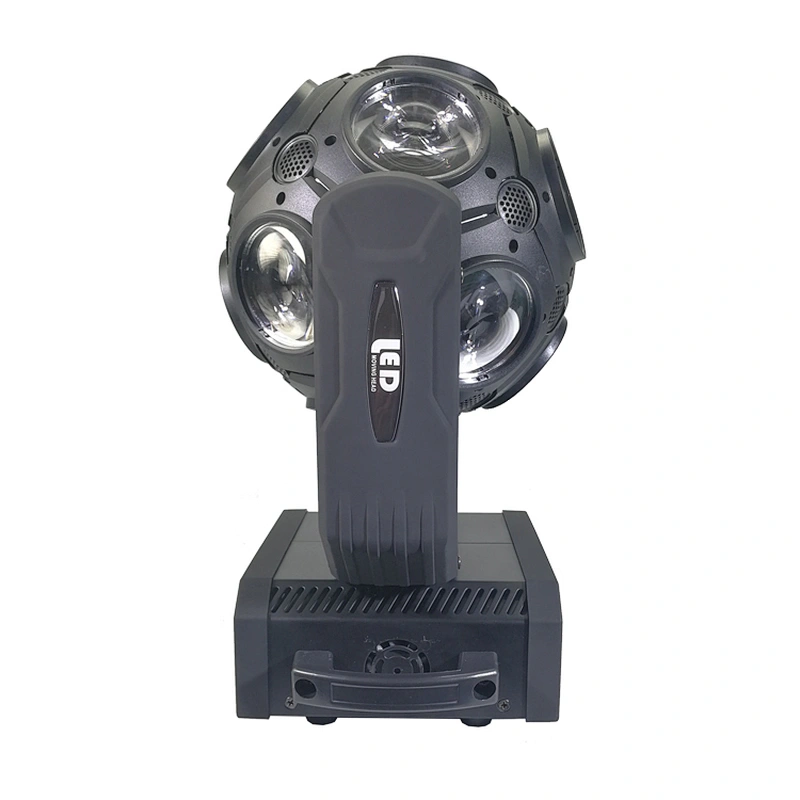

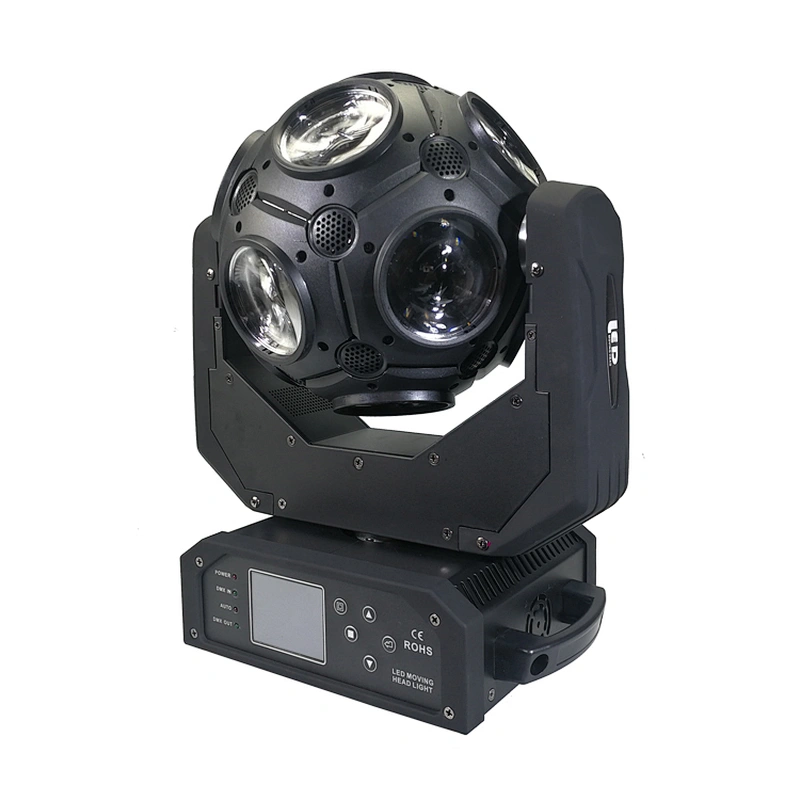

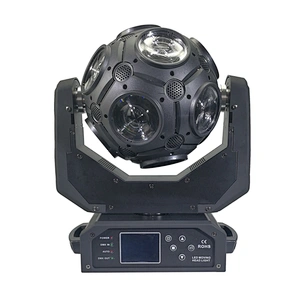

- FOOT BALL BEAM
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
