- Optical System

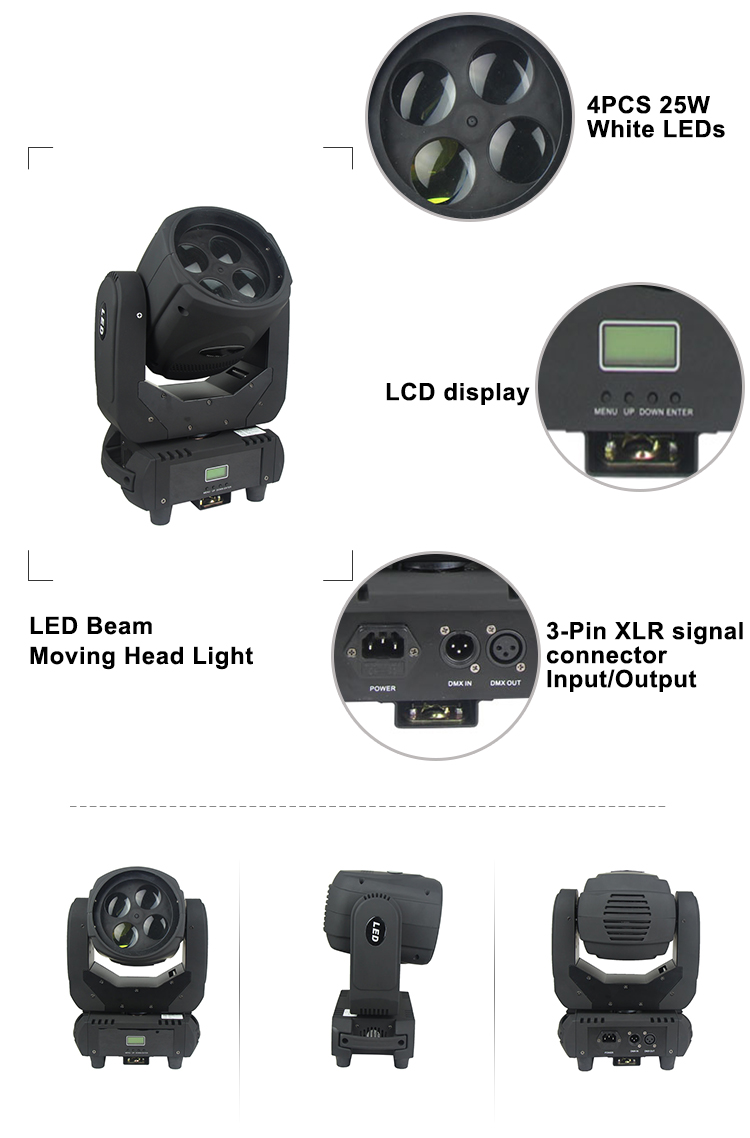

- Light source:4PCS 25W white LEDs
- LED lifespan: 50,000 hours
- Beam angle: 3°
- Dynamic Effects
- Color wheel: 4 colors
- Lens wheel can be infinite rotating
- Built macro function

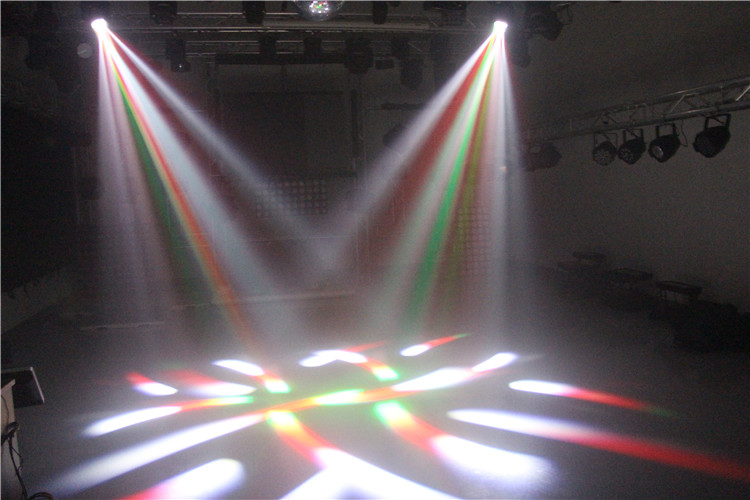

- Beam, swirl, kaleidoscope three different effects
- 0-100% smooth linear dimming
- Shutter: 1-25 times/s strobe, random and plus strobe
- Control and Program
- LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 11/16 CH
- Pan/Tilt resolution: 16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 150W

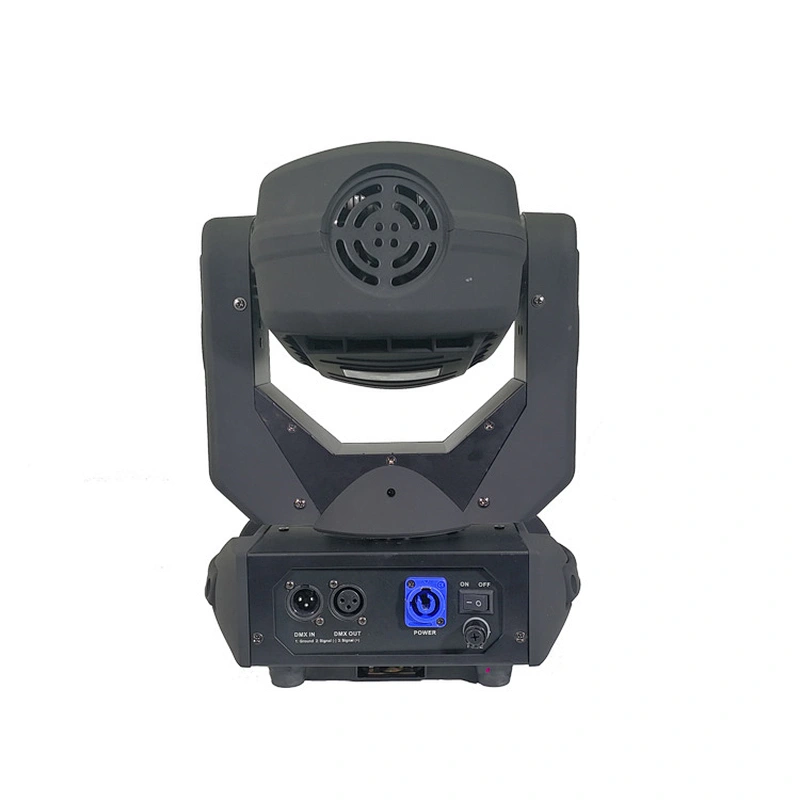

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- DB rate: 55db(3”)
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 300*190*390mm (10.6*7.1*15.2 inch)
- Carton: 360*250*460mm (12.2*10.6*15.7 inch)
- Net weight: 7.3 kg (16.1 lbs)
- Gross weight: 8.1 kg (17.9 lbs)
- Packing List

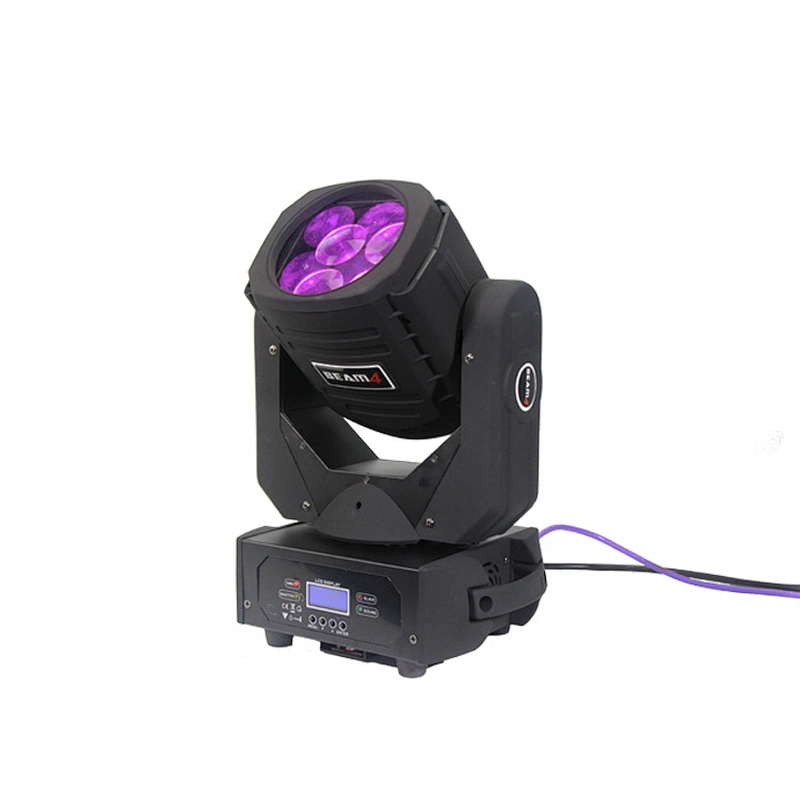

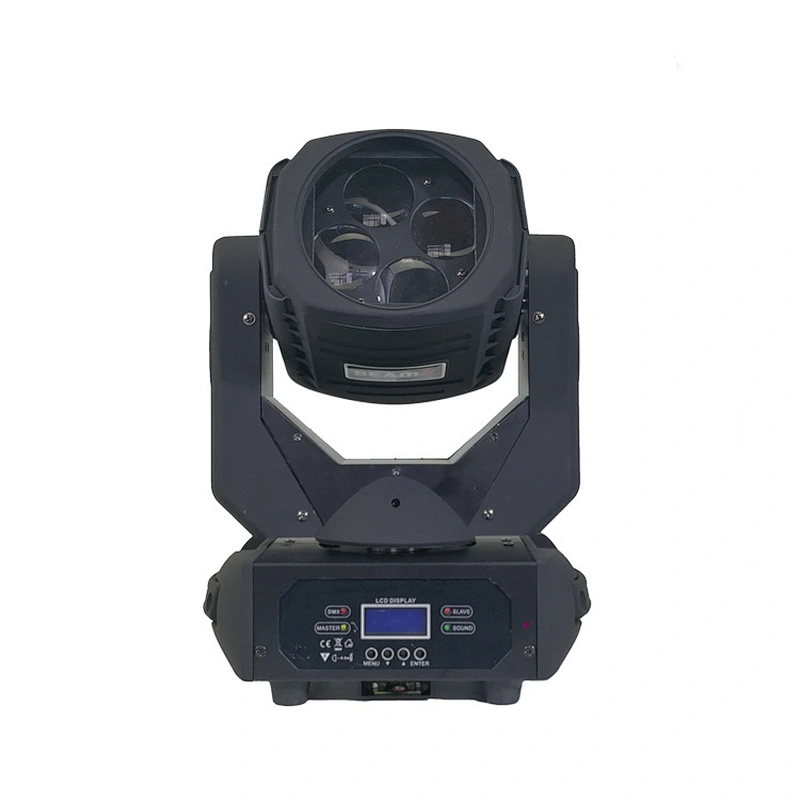

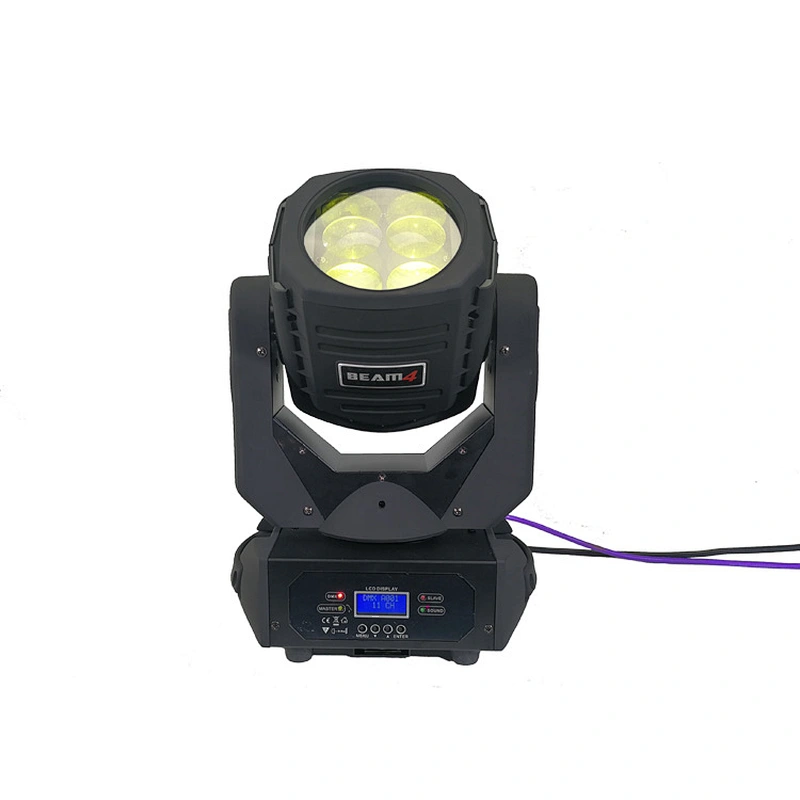

- BEAM 4
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
enviar mensaje
Productos relacionados
Modelo MJ-1019C
Modelo MJ-1018F

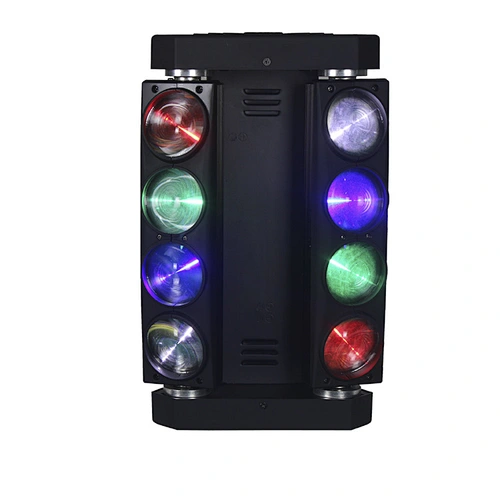

Modelo MJ-1028C-4IN1
