English
- Optical System

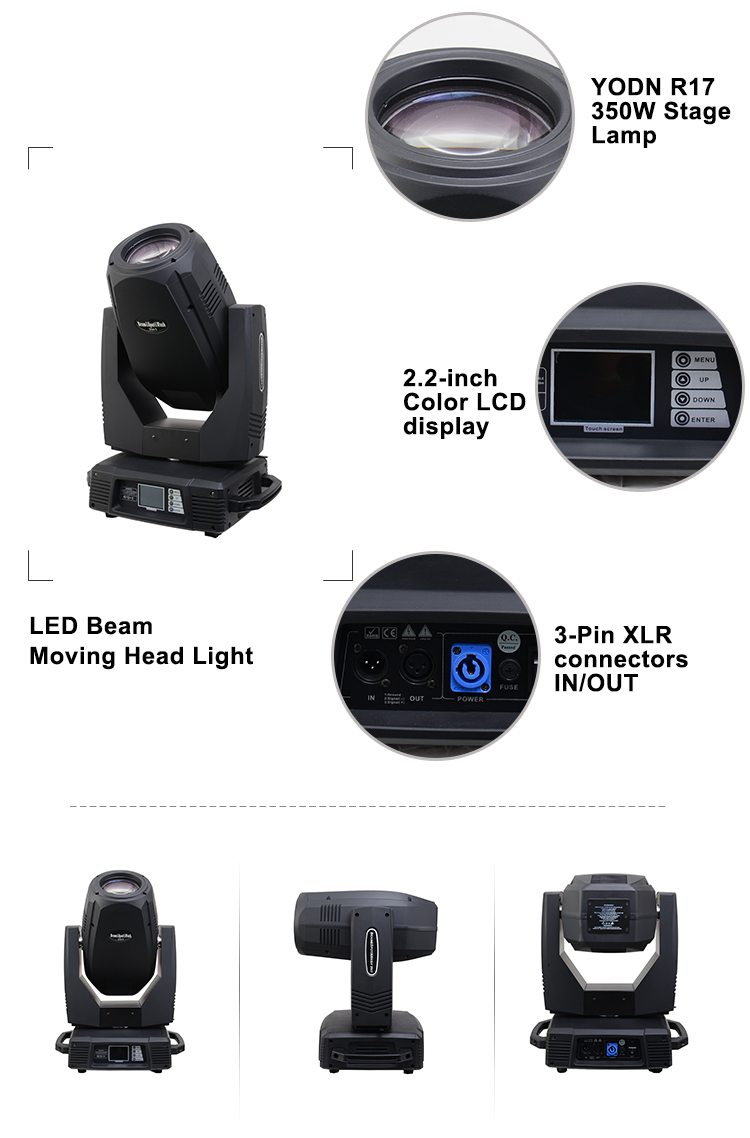

- Light source: YODN R17 350W stage lamp
- Colour temperature: 8500K
- LED lifespan: 2000 hours

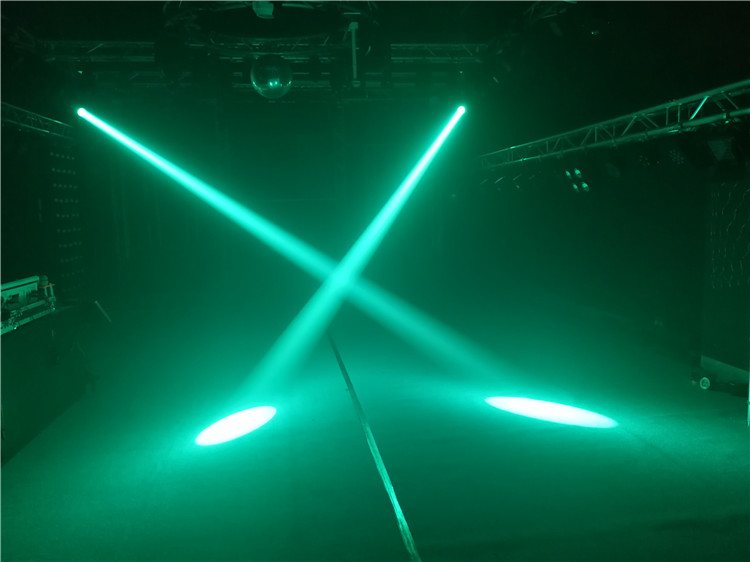

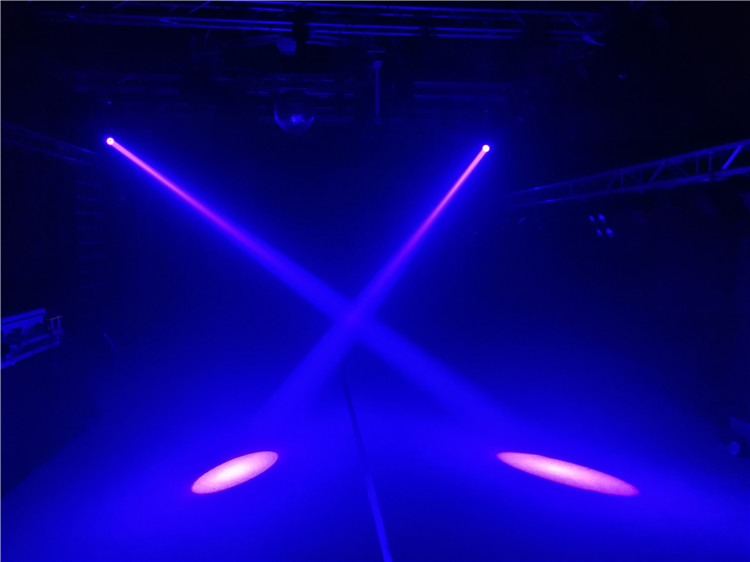

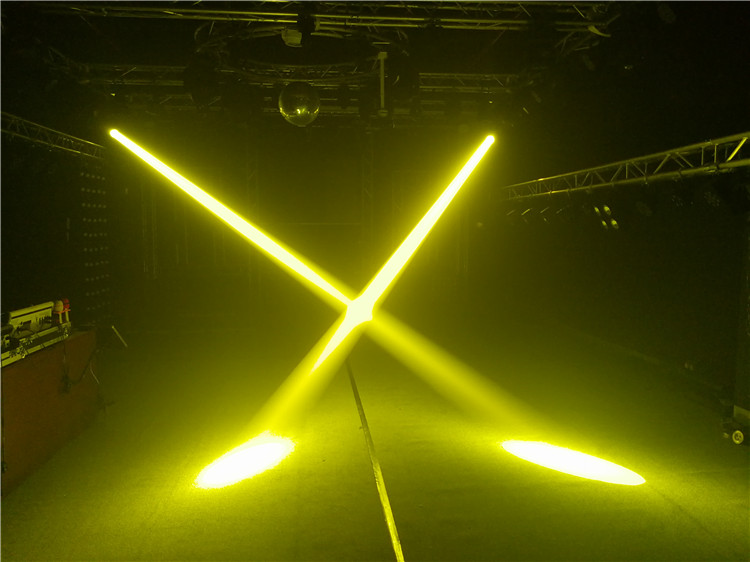

- Zoom range: 2.5°-5° beam model; 5°-39° spot model
- Dynamic Effects
- Colour wheel: 13 colours + white

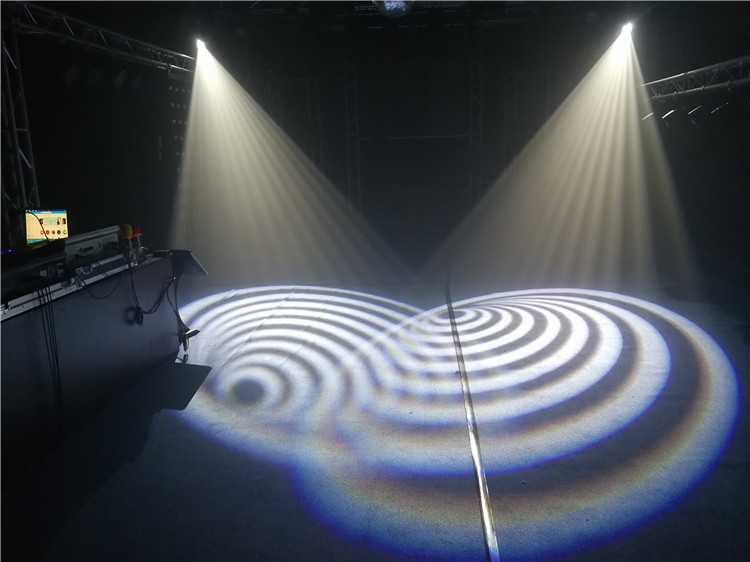

- Rotating gobo wheel:9 rotating gobos + open

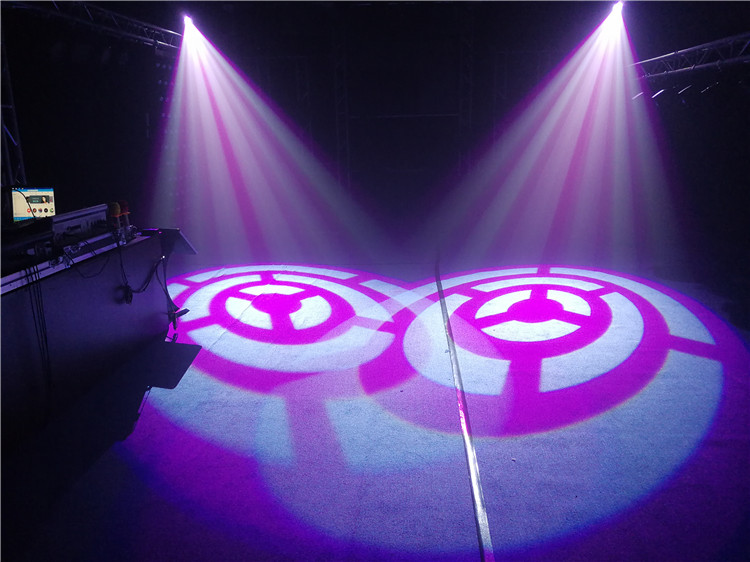

- Fixed gobo wheel: 14 fixed gobos + open

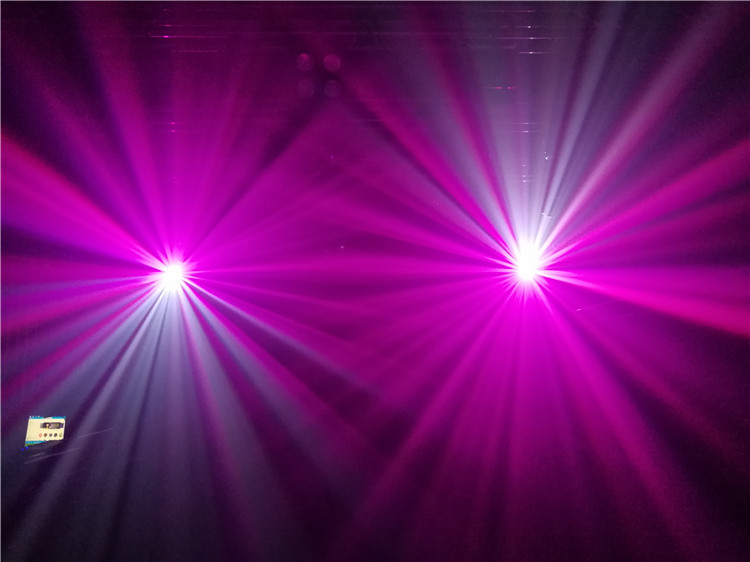

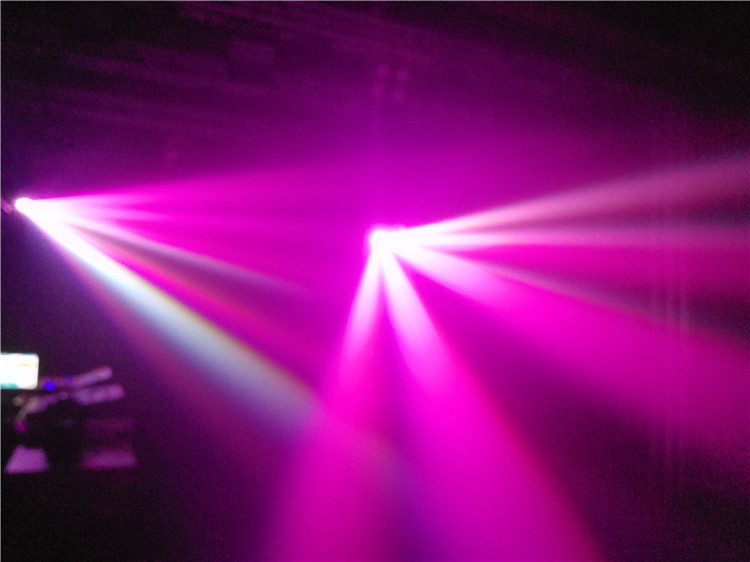

- A 16-facet prism
- A 3-facet linear prism
- Prism overlapping functions
- Color half step function
- Electric focus from near to far
- 0-100% electronic dimmer
- Shutter: 1-9 times/sec high speed strobe, random and pulse
- Control and Program

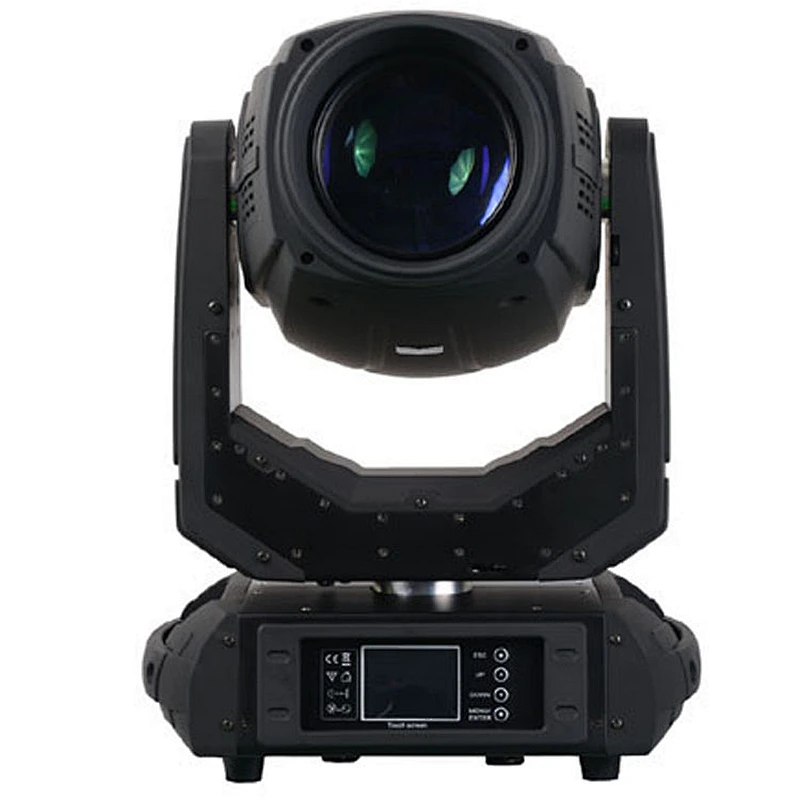

- 2.2-inch color LCD displaywith English and Chinese menu, can be rotation 180 °
- Protocol: DMX512, master-slave, sound control, auto
- Control channels:16/24 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 540W

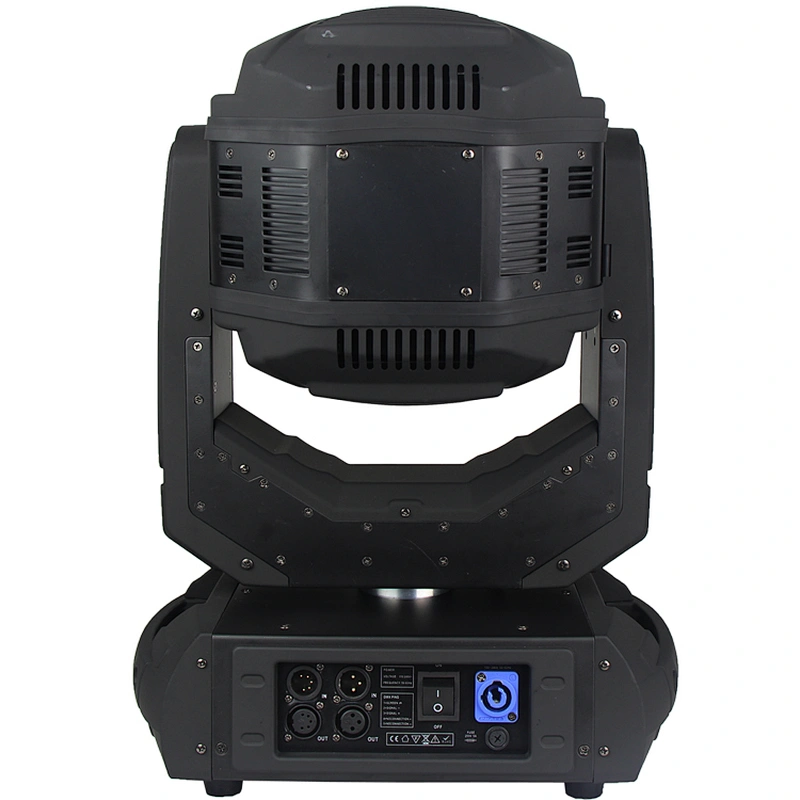

- Power connector in/out: Powercon input
- Data connector in/out: 3-pin XLR
- 2pcs 1/4 fastening Omega Clamps
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 390*255*595mm (15.4*10*23.4 inch)
- Carton: 480*480*590mm (18.9*18.9*23.2 inch)
- Net weight: 21 kg (46.3 lbs)
- Gross weight: 23 kg (50.7 lbs)
- Packing List

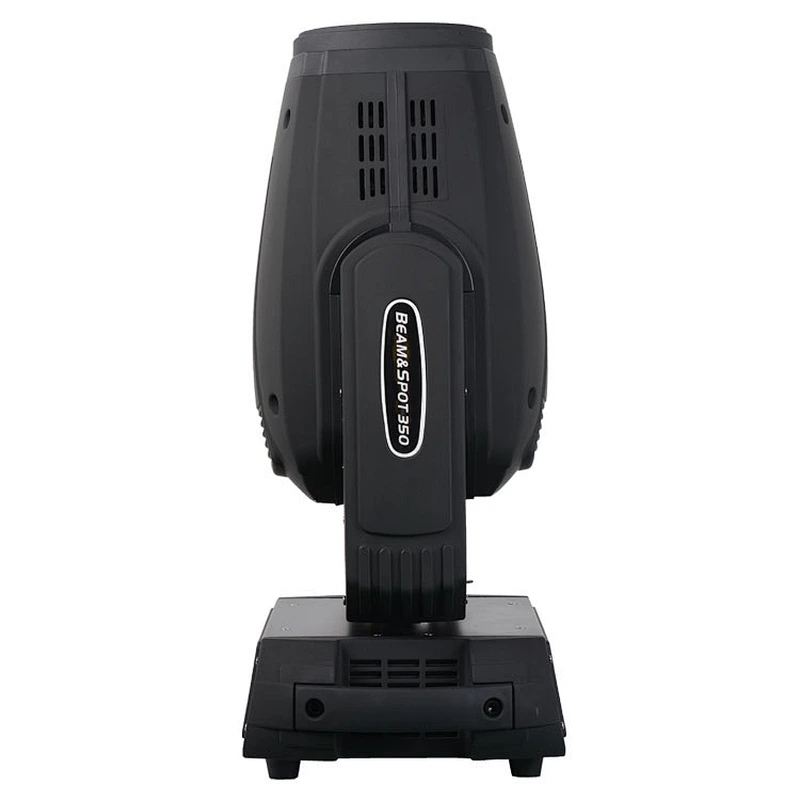

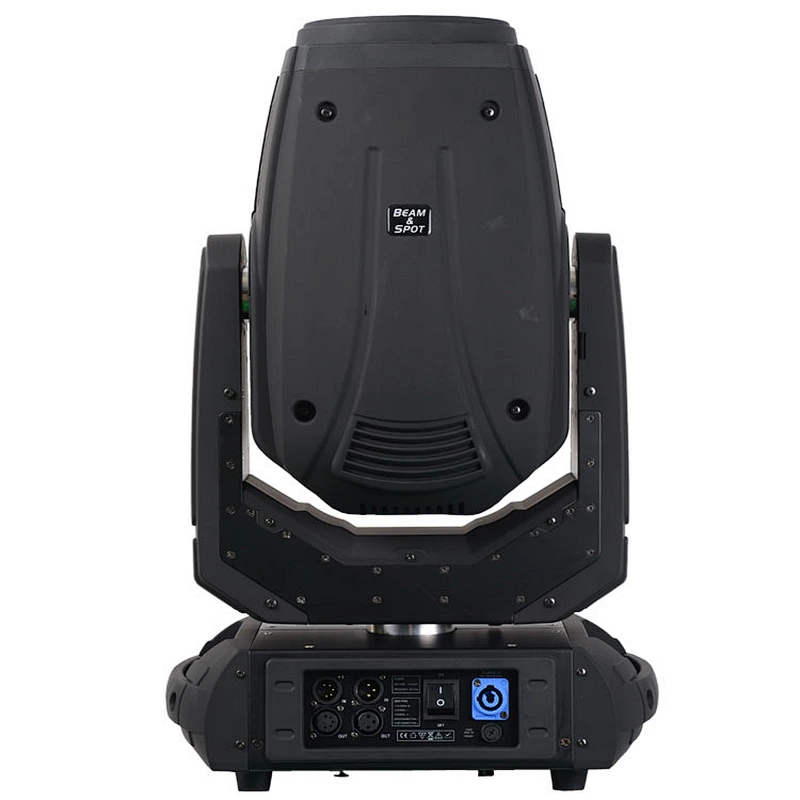

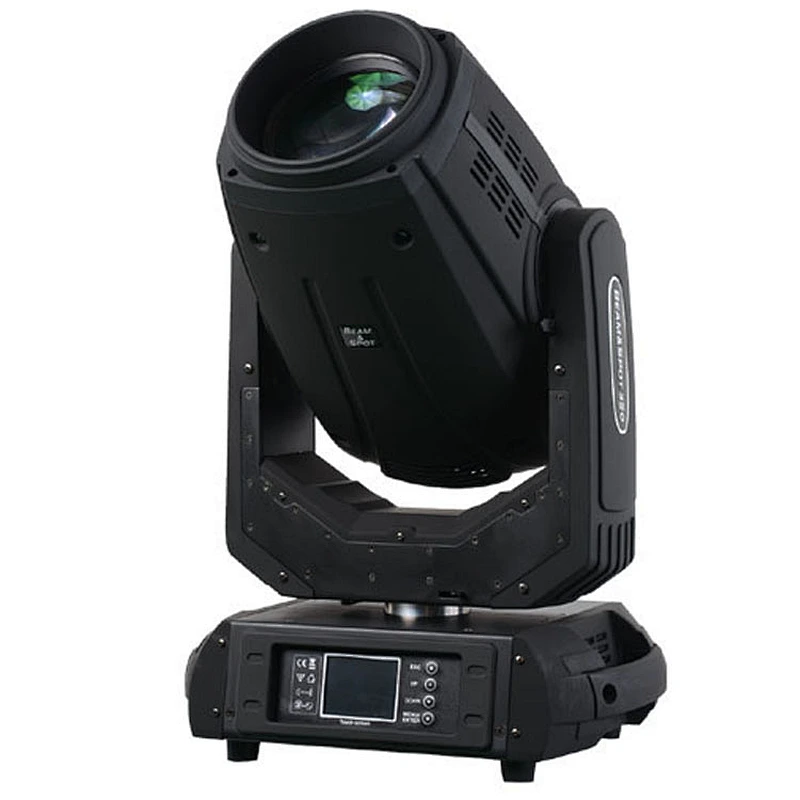

- BEAMSPOT 350
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
