English
- Optical System

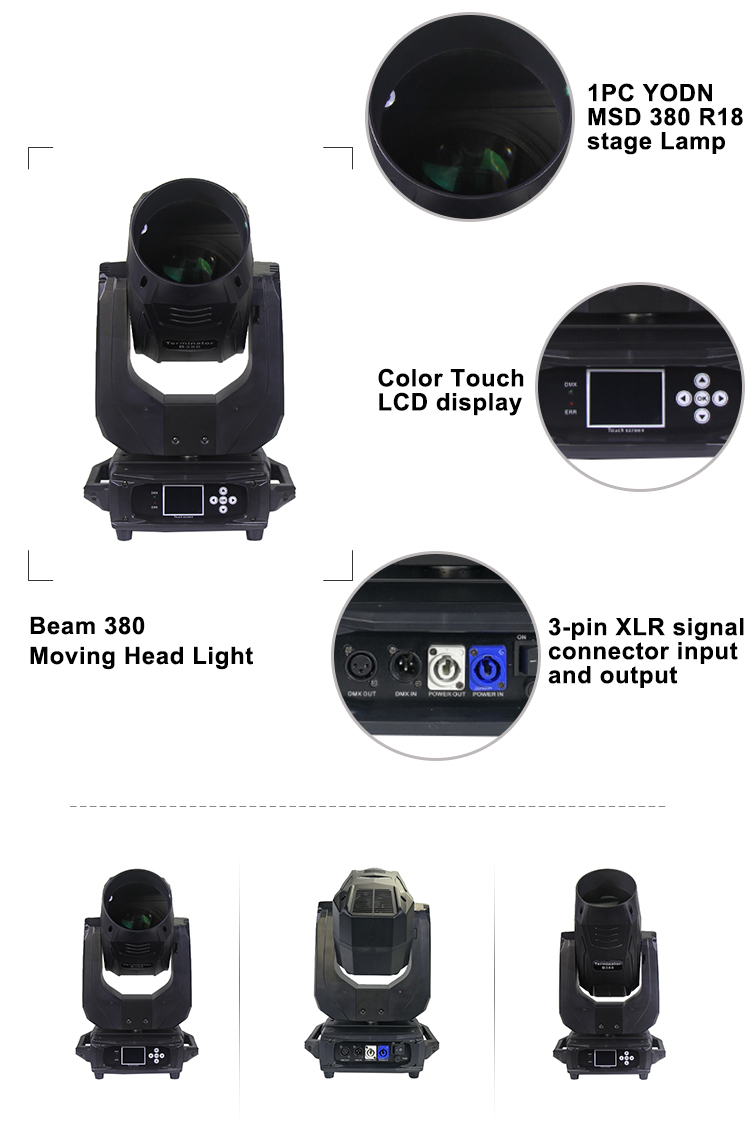

- Light source: 1PC YODN MSD 380 R18 stage Lamp
- Colour temperature: 8500K
- LED lifespan: 2000 hours
- Beam angle: 1.9°
- Dynamic Effects
- Colour wheel: 13 colors + white
- Fixed gobo wheel: 11 fixed gobos + white
- Prism 1:24+16+8-facet round prism
- Prism 2:16-facet linear round prism
- Frost: 1PC frost
- Colourful mirror: 1PC colourful mirror with 6color
- Prism overlapping functions
- Color half step function
- Electric focus from near to far
- 0-100% electronic dimmer
- Shutter: 0.5-9 times/sec, random and pulse strobe function
- Control and Program
- 2.2-inch color touch LCDdisplay with English and Chinese menu
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Motor:Three-phase motor, smooth operation, fast speed, low noise
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 550W

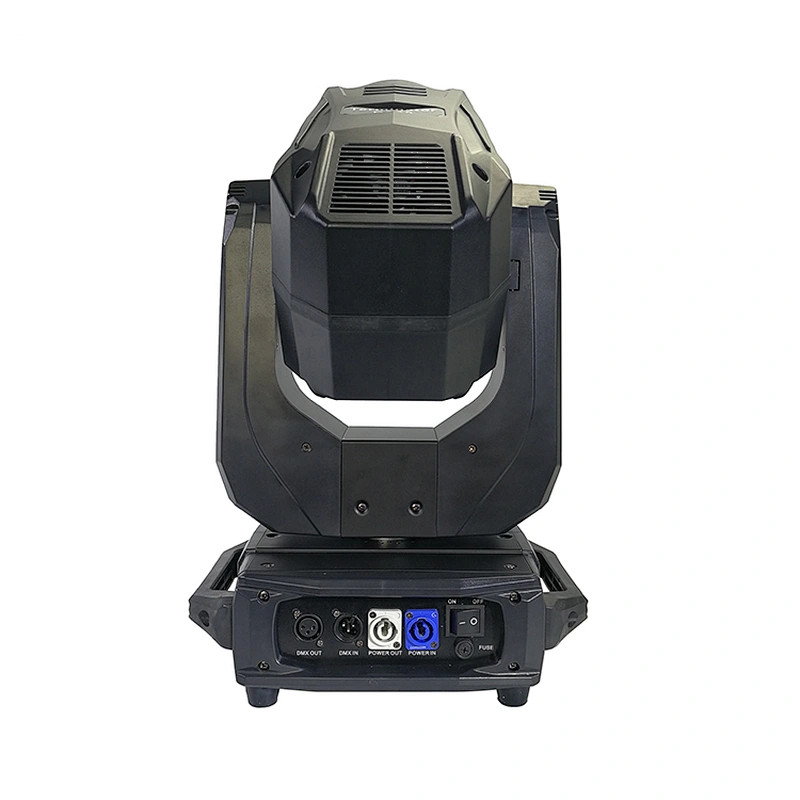

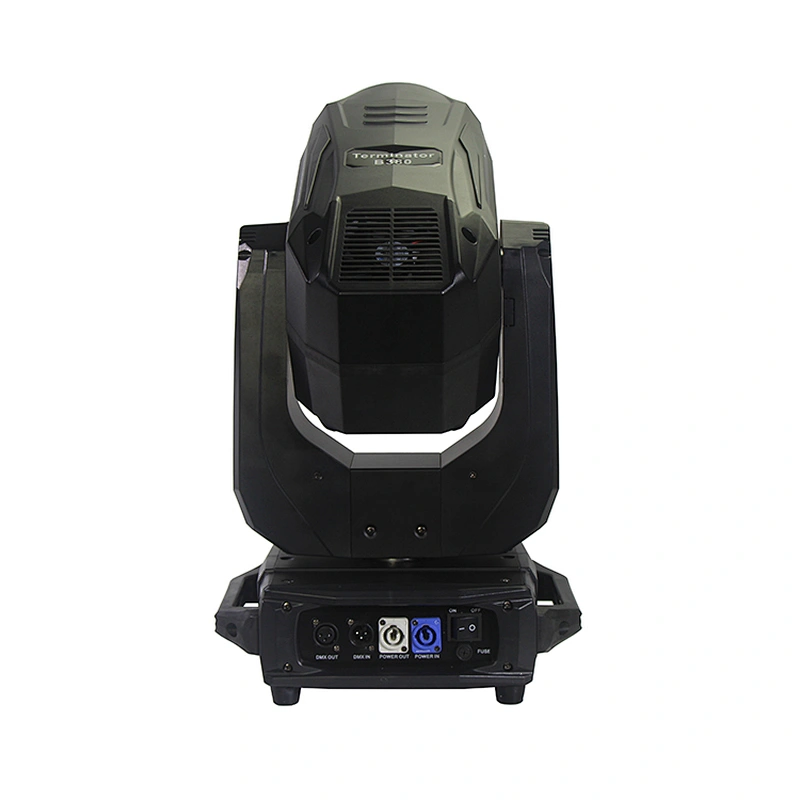

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2pcs 1/4fastening Omega Clamps
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please

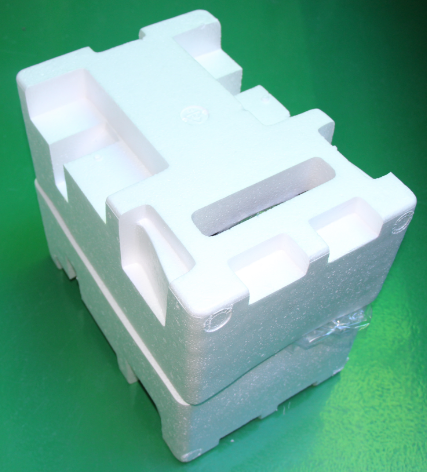

- Product and Packing Dimensions
- Product: 320*245*575mm (12.6*9.6*22.6 inch)

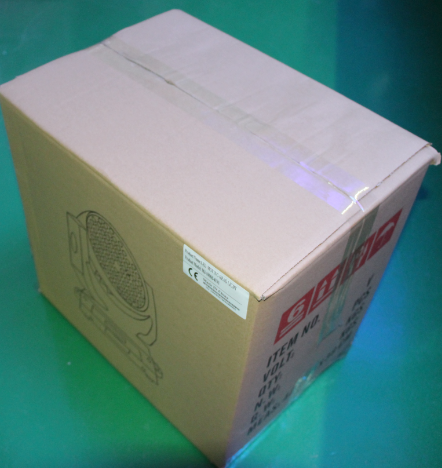

- Carton: 570*460*390mm (22.4*18.1*15.4 inch)
- Net weight: 16.5 kg (36.4 lbs)
- Gross weight: 18.5 kg (40.8 lbs)

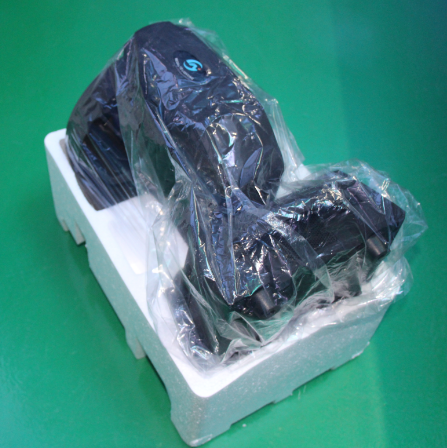

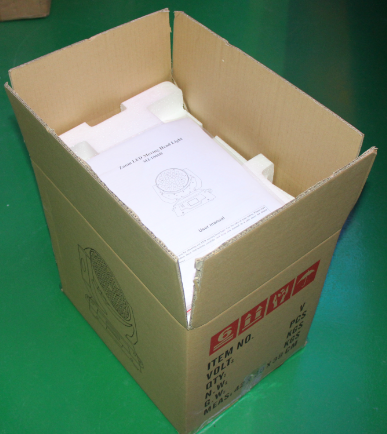

- Packing List

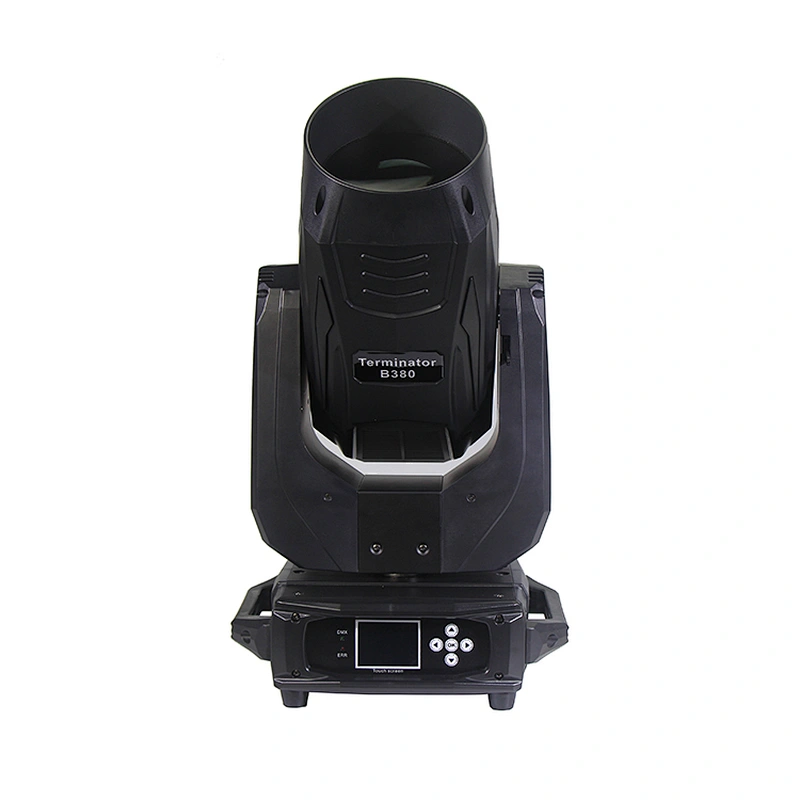

- BEAM 380
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
