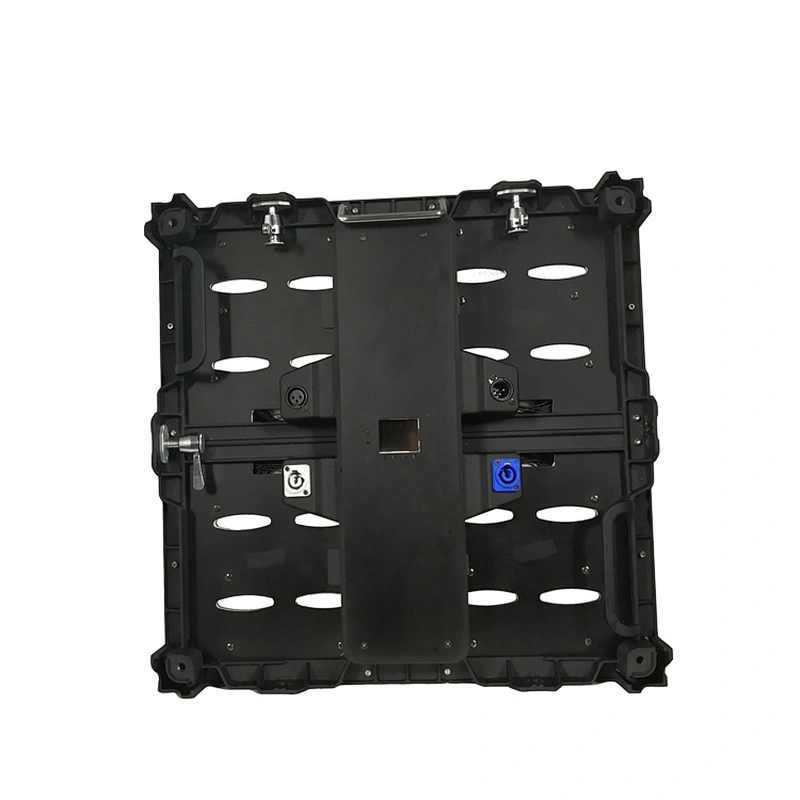

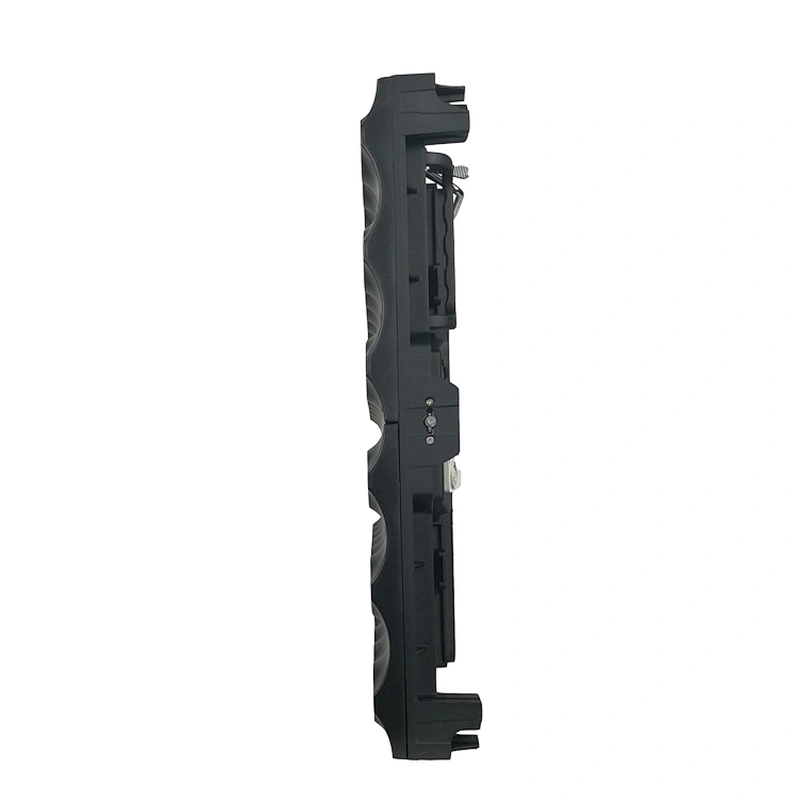

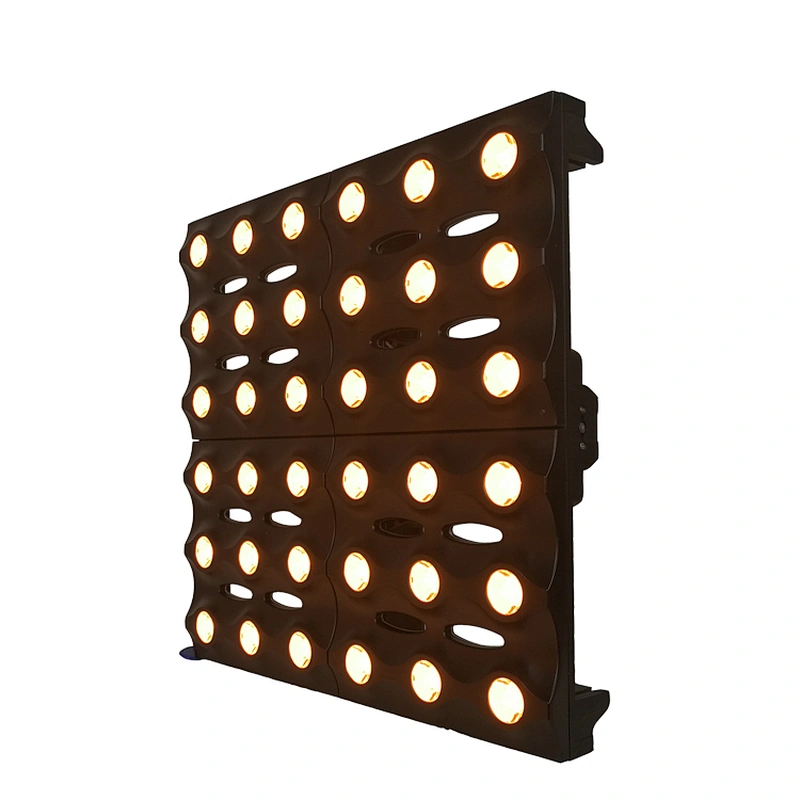

MATRIX 363

. Optical System

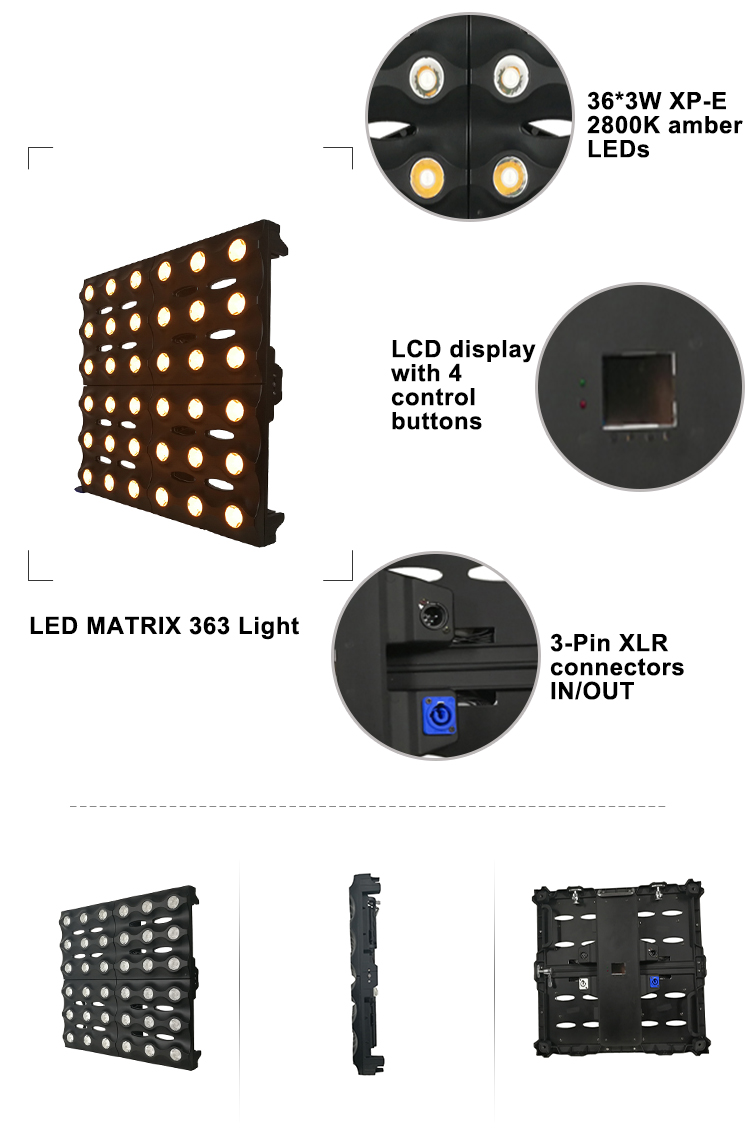

1. Light source: 36x3W CREE XP-E 2800K amber LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 7°
4. Projection angle: 12°
5. Flicker-free

• Dynamic Effects

1. 36 pixels (each LED is a pixel), controllable individually
2. 0-100% smooth linear dimming system
3. 1-30 times/s high speed strobe effect, speed adjustable
4. 20 Different patterns, speed and step controllable
5. 26 Letters, 10 digits and special signs

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Control Channels: 5/36 DMX channel
3. Built-in pre-program
4. Marco function

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Power connector in/out: Powercon
3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 500*500*90 mm (19.7*19.7*3.5inch)
2. Box: 650*650*190 mm (25.6*25.6*7.5inch)
3. Net weight: 7.5 kg (16.5 lbs)
4. Gross weight: 8.8 kg (19.4 lbs)

• Packing List

1. Led matrix 363
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 4pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
