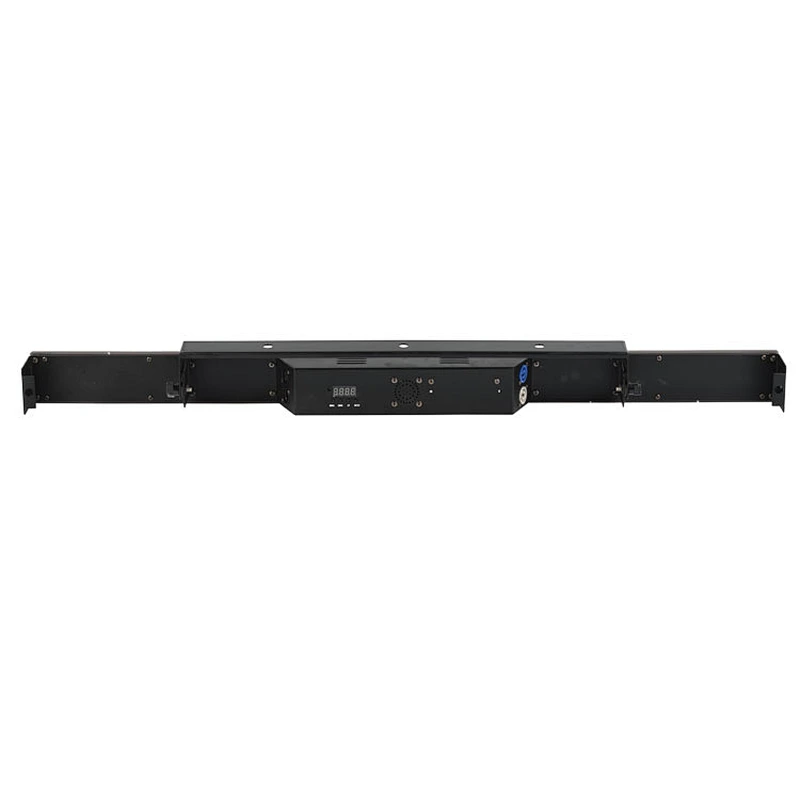

MATRIX BAR 2IN1

. Optical System

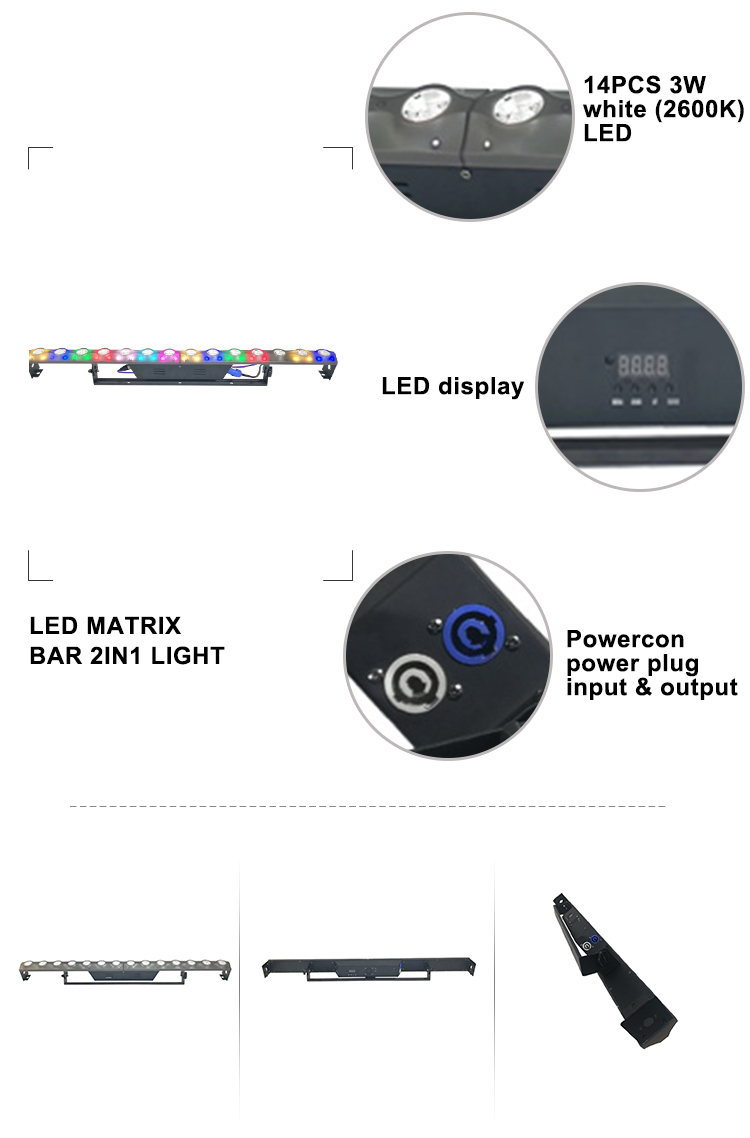

1. Light source:14X3W CREE and 56X0.3W SMD5050
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 4°

• Dynamic Effects

1. 14 group LED pixels control individually
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Control channel: 6/8/12/60CH
3. Power connector in/out: Powercon
4. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 935*75*150 mm (36.8*3.0*5.9inch)
2. Box: 970*180*120 mm (38.2*7.1*4.7inch)
3. Net weight: 3.5 kg (7.7 lbs)
4. Gross weight: 4.0 kg (8.8 lbs)
5. Carton (4pcs-in-1): 990*400*270mm, 19kg (39.0*15.8*10.7 inch, 41.9 lbs)

• Packing List

1. Led matrix bar 2in1
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 6pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
