- Optional Models
| Model No. | Power | Light | Emitting | Lens | DMX |
| Consumption | Source | Color | Angle | Channels | |
MJ-1006 1W15DRGBW | 138W | 108*1W | RGBW | 15 | 9/12/15 CH |
MJ-1006 3W25DRGBW | 358W | 108*3W | RGBW | 25 | 9/12/15 CH |
- Optical System

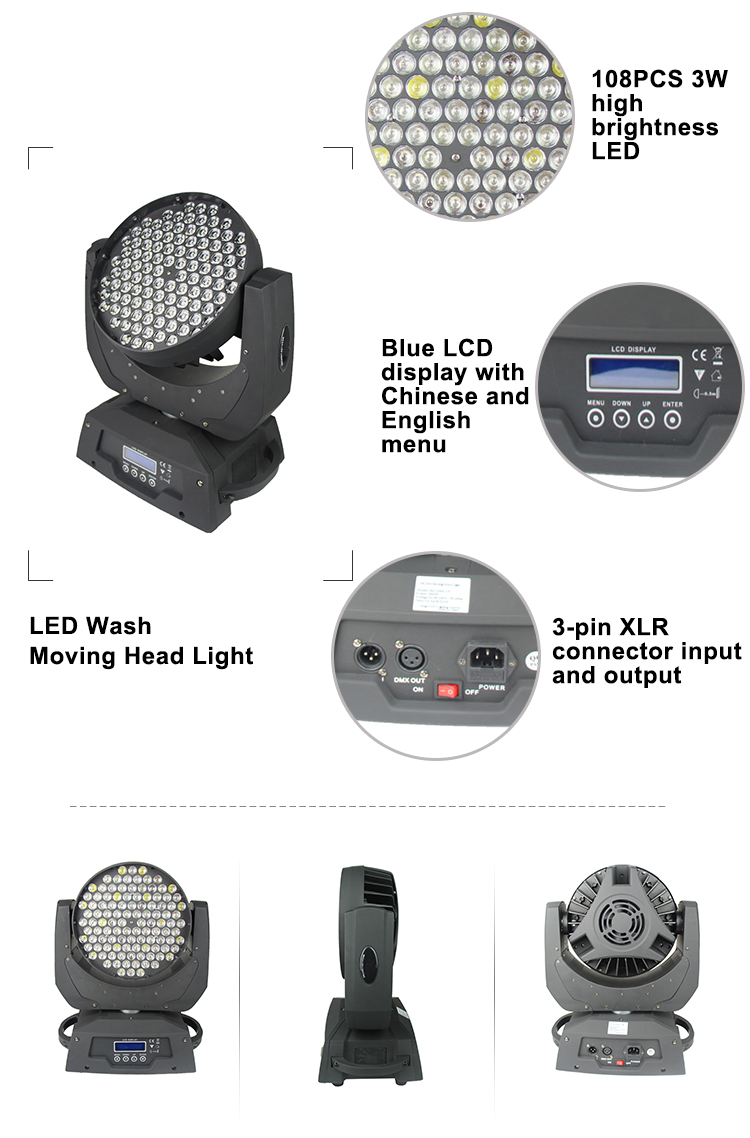

- Light source: 108PCS 3W high brightness LED (R:30pcs, G:30pcs, B:30pcs, W/A:18pcs)
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25° (15°, 45°, 60° optional)
- Dynamic Effects

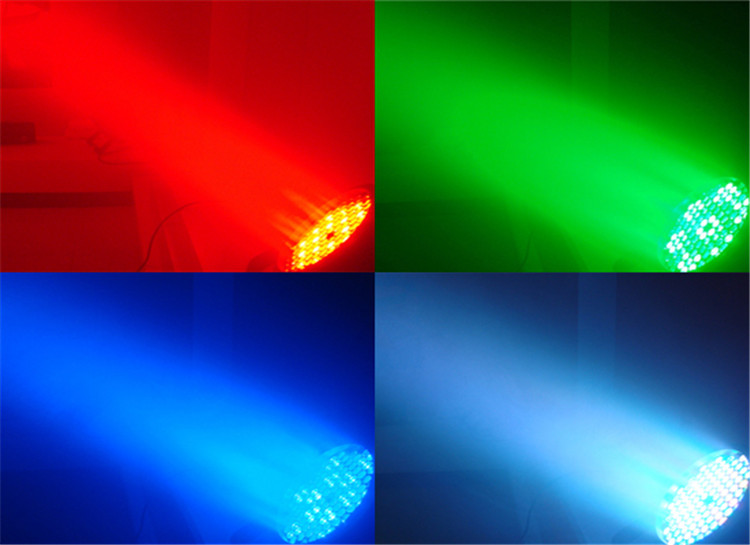

- RGBW color mixing system
- LED rainbow effect
- Macro function
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- Optional random strobo and pulse frequency flash
- Control and Program
- Blue LCD display with Chinese and English menu
- Protocol: DMX512, master-slave, sound control, auto
- Control channel: 9/12/15 CH
- Built-in 8 pre-programs
- Marco function
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Pan/Tilt resolution: 16 bit smooth scanning
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 358W

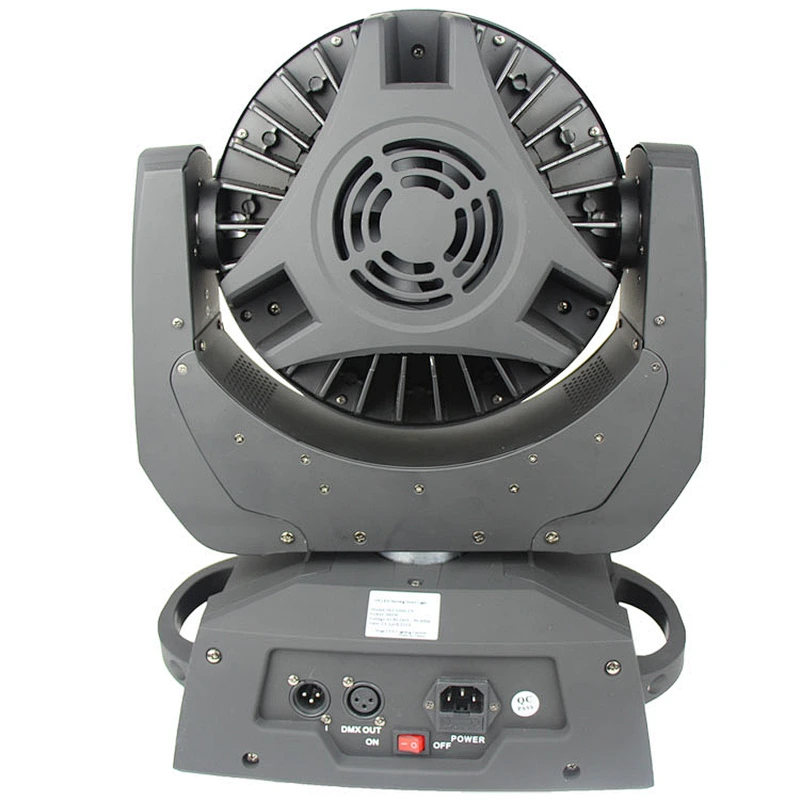

- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 340*230*470 mm (13.4*9.1*18.5 inch)
- Carton: 430*300*390 mm (16.9*11.8*15.4 inch)
- Net weight: 9.5 kg (20.9 lbs)
- Gross weight: 11 kg (24.3 lbs)
- Packing List

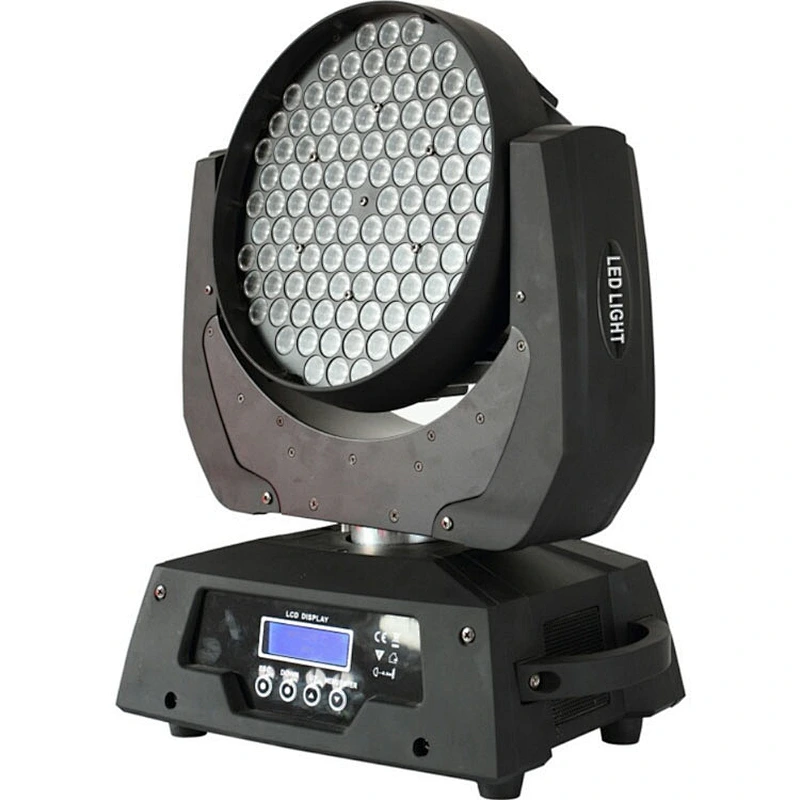

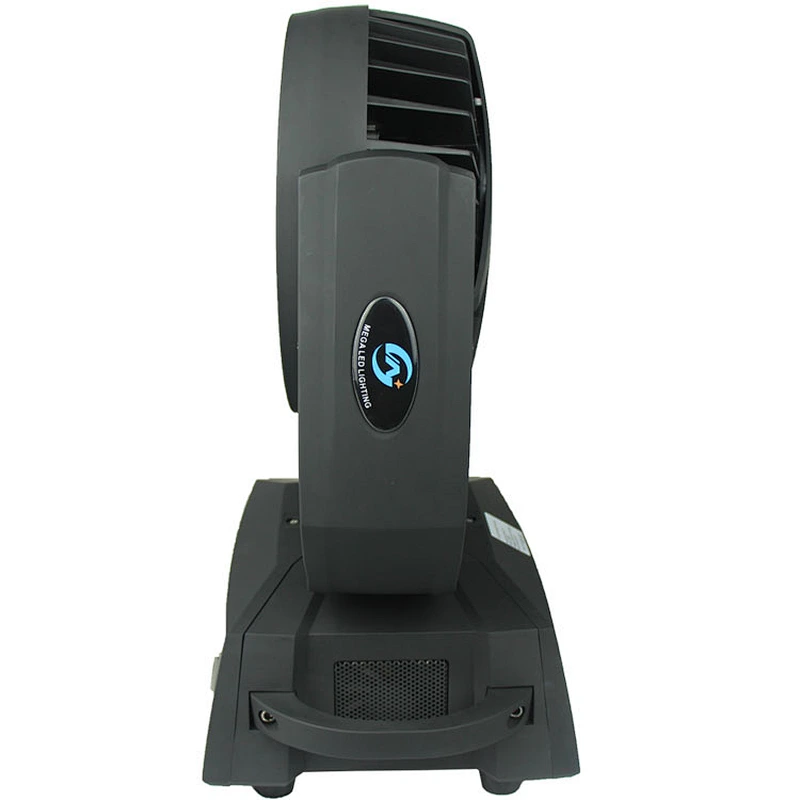

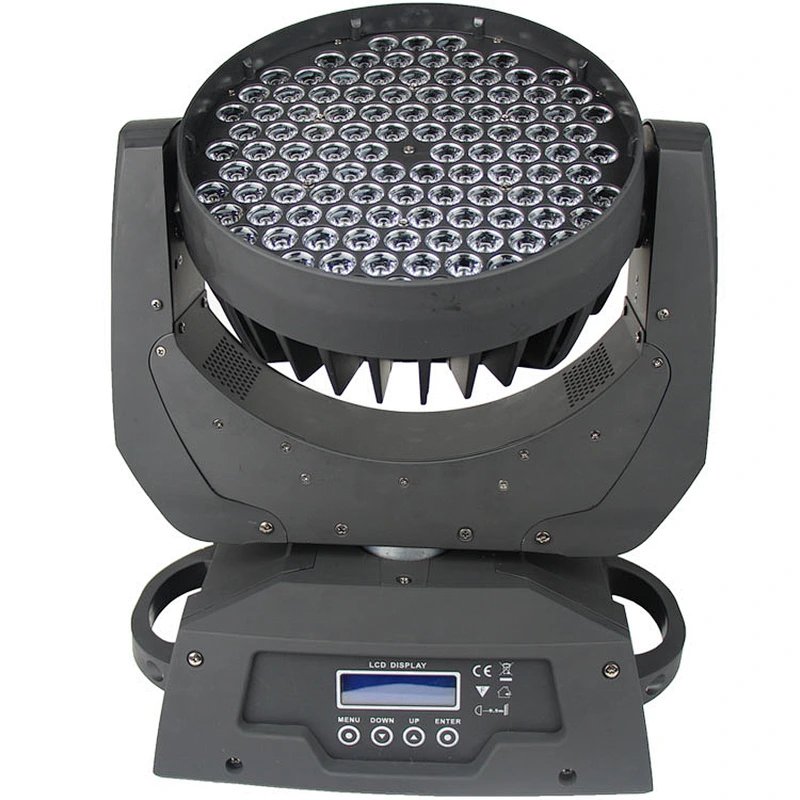

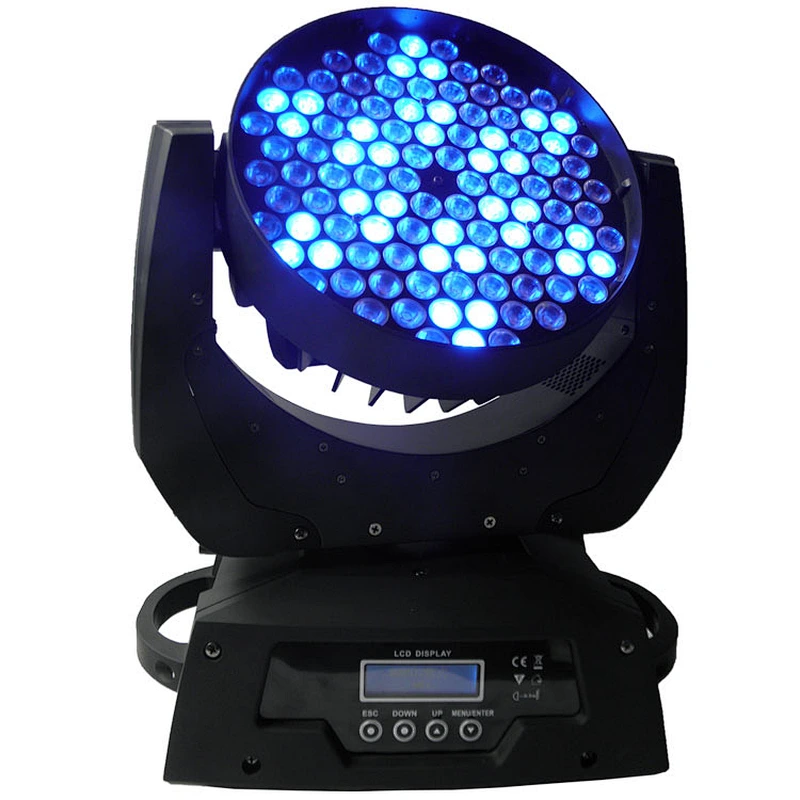

- LED WASH 1083
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs-in-1, 4pcs-in-1
- Clamp
- Safety rope
- DMX wire
