- Optional Models
| Model No. | Power | Light | Emitting | Lens | DMX |
| Consumption | Source | Color | Angle | Channels | |
MJ-1001 | 68W | 36*1W | RGB | 15 | 12 CH |
MJ-1001 | 68W | 36*1W | RGB | 25 | 12 CH |
MJ-1001 | 148W | 36*3W | RGB | 15 | 12 CH |
MJ-1001 | 148W | 36*3W | RGB | 25 | 12 CH |
MJ-1001 | 100W | 24*3W | RGB 3IN1 | 25 | 12 CH |
- Optical System

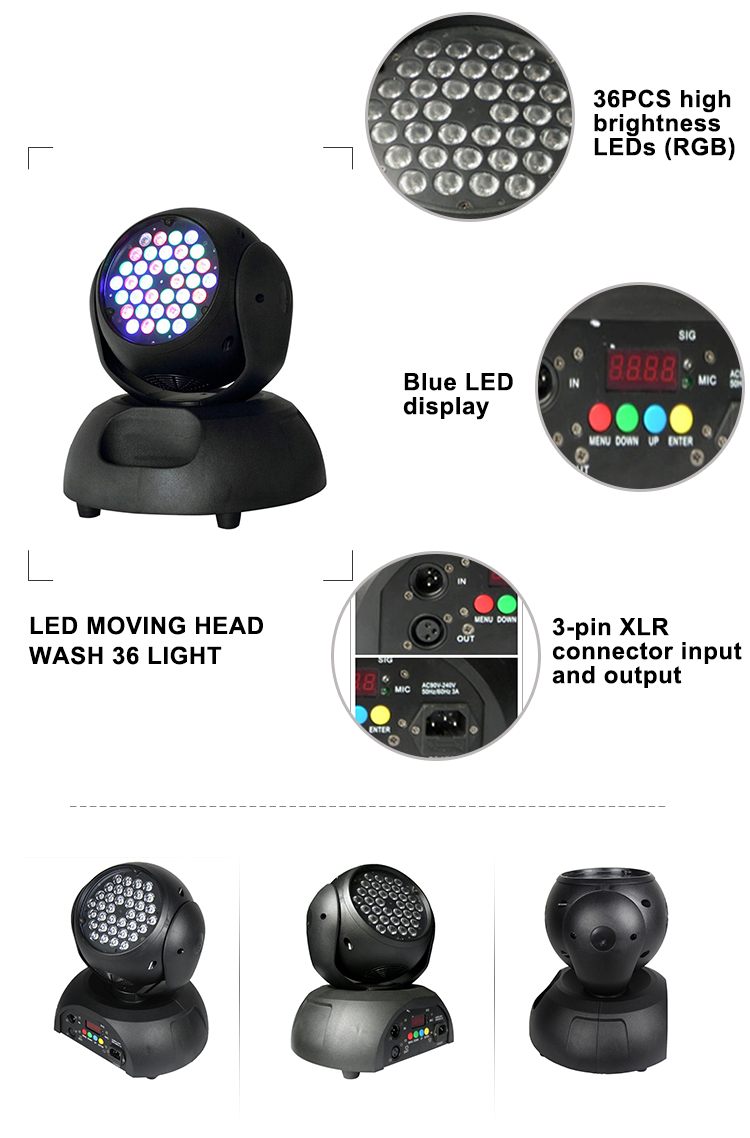

- Light source: 36PCS 3W LEDs(RGB)
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25° (15°, 45°, 60° optional)
- Dynamic Effects
- RGB color mixing system
- RGB dimming function
- RGB rainbow effect
- Macro function
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- Control and Program
- Blue LED display
- Protocol: DMX512, master-slave, sound control, auto
- Control channel: 12 CH
- Built-in 8 pre-programs
- Marco function
- Movement
- Pan movement: 630°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Pan/Tilt resolution: 8 bit smooth scanning
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 148W
- Power connector in/out: IEC
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 310*270*350 mm (12.2*10.6*13.8 inch)
- Carton: 360*360*445 mm (14.2*14.2*17.5 inch)
- Net weight: 6.8 kg (15 lbs)
- Gross weight: 8.5 kg (18.7 lbs)
- Packing List
- MOVING HEAD WASH 363
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case:
- Clamp
- Safety rope
- DMX wire
