- Optical System
- Light source: YODN MSD 380 R18 stage Lamp(OSRAM optional)
- Colour temperature: 7800K
- LED lifespan: 2000 hours
- Beam angle: 2.5°-60°
- Dynamic Effects
- Colour wheel: 11 colors + white
- Rotating gobo wheel: 7 rotating gobos + white
- Gobo size: (25.6mm)outer diameter, (19mm)inner diameter
- Fixed gobo wheel: 13 fixed gobos + open
- Effect gobo: 4 effect gobo + luck color effect
- Prism 1: 24-facet prism
- Prism 2: 6-facet linear prism
- Prism overlapping functions
- Color half step function
- Electric focus from near to far
- 0-100% electronic dimmer
- Shutter: 1-12 times/sec, random and pulse strobe function
- Control and Program
- 2.2-inch color LCD display with English and Chinese menu, can be rotation 180 °
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 20/24 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Motor: Three-phase motor, smooth operation, fast speed, low noise
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 580 W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2pcs 1/4 fastening Omega Clamps
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 395*293*799 mm (15.6*11.5*31.5 inch)
- Carton: 550*480*630 mm (21.7*18.9*24.8 inch)
- Net weight: 23 kg (50.7 lbs)
- Gross weight: 25.5 kg (56.2 lbs)
- Packing List

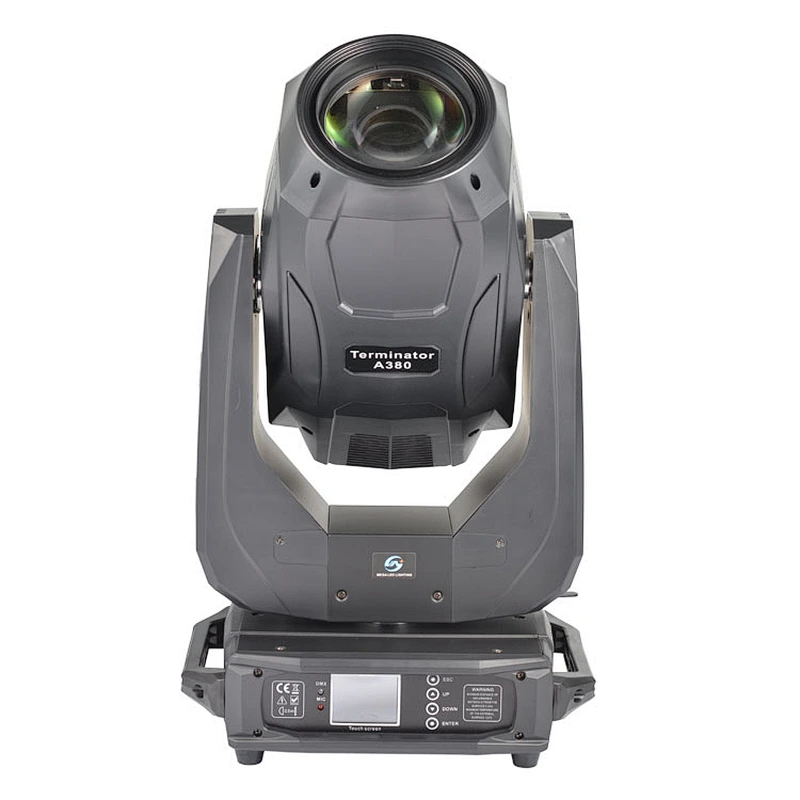

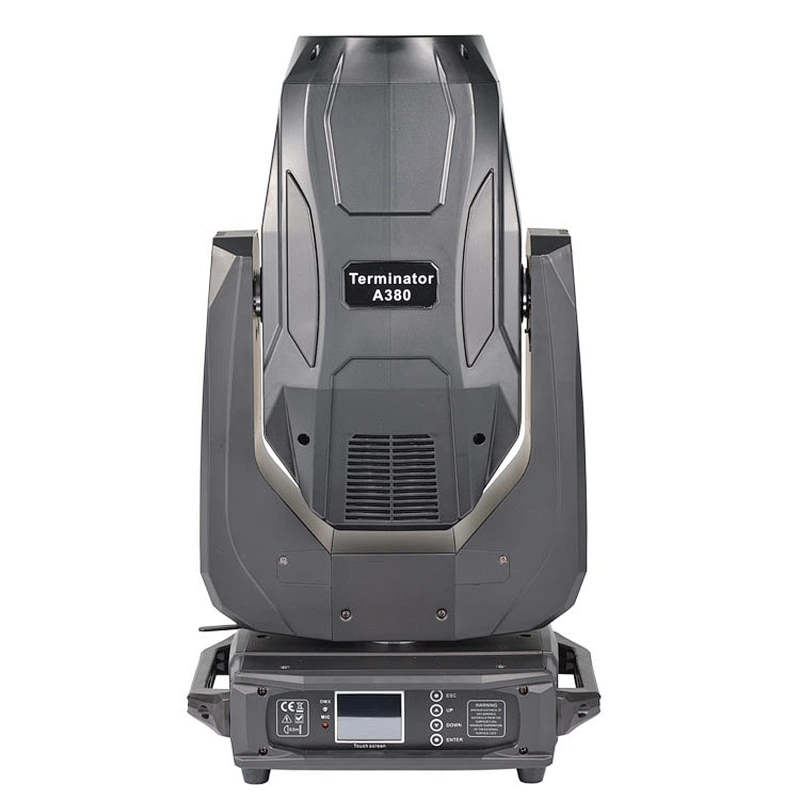

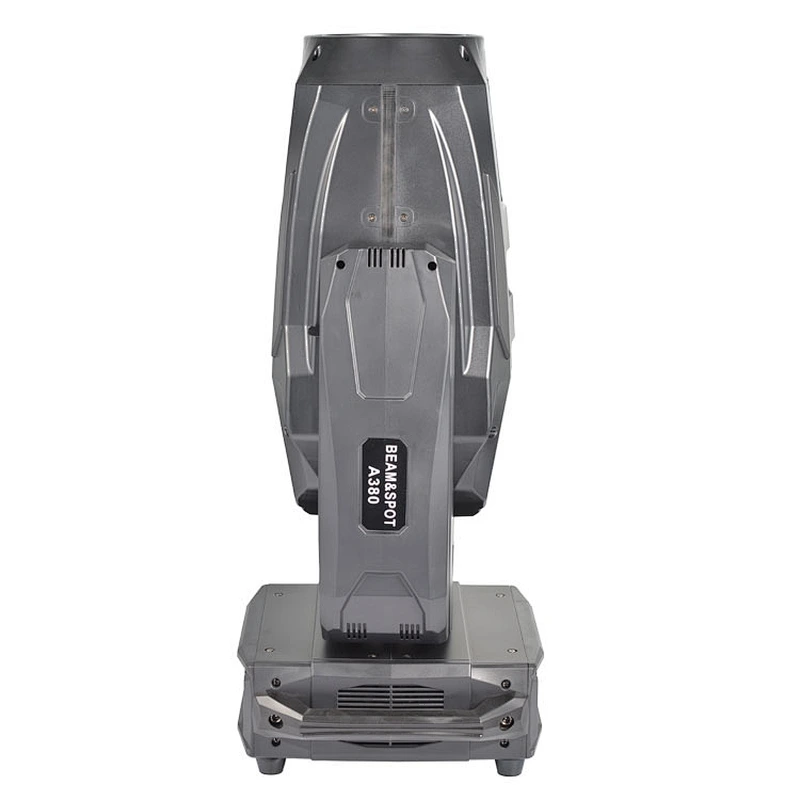

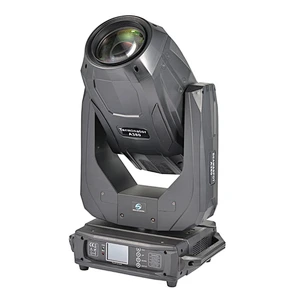

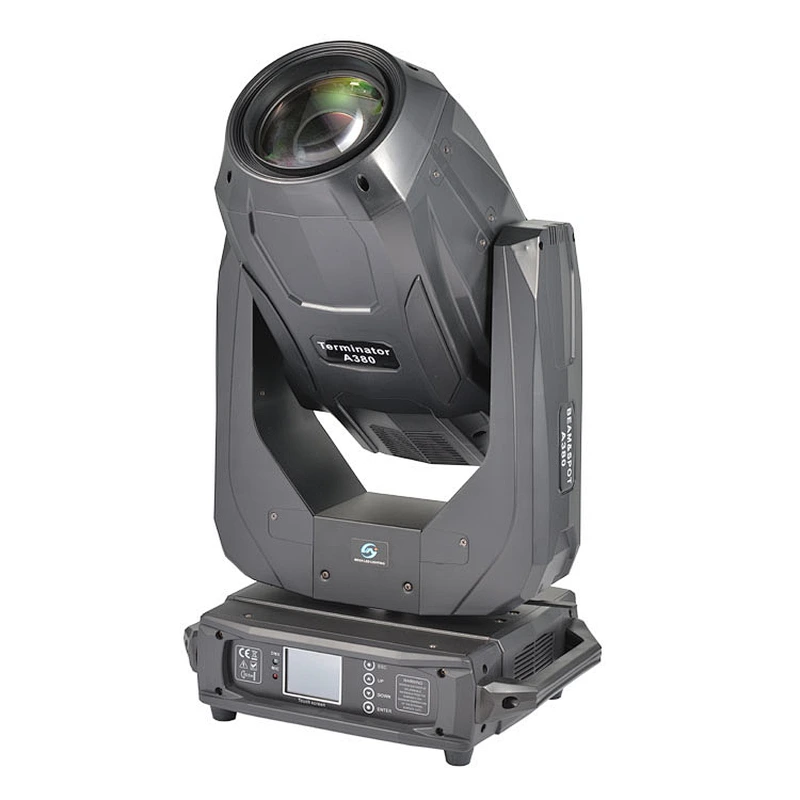

- BEAMSPOT 380
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
