- Optical System
- Light source: YODN MHD 9R 280 Lamp
- Colour temperature: 8500K
- LED lifespan: 2000 hours
- Beam angle: 2.5°~20°
- Dynamic Effects
- Colour wheel: 14 colors + white
- Rotating gobo wheel: 7 rotating gobos + white
- Gobo size: 24.5mm(outer diameter), 14mm(inner diameter)
- Static gobo wheel: 17 fixed gobos + white
- Prism: 16-facet circular prism
- Prism: 6-facet linear prism
- Variable direction rainbow effect with speed adjustable and shake function
- Frost Filter(wash effect)
- Macro-function for gobos/prism combinations
- Color half step function
- Electric focus from near to far
- 0-100% electronic dimmer
- Shutter:1-9 times/second high-speed strobe, random / pulse strobe
- Control and Program
- 2.2-inch color LCD display with English and Chinese menu, can be rotation 180 °
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 20 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC 100-240 V, 50/60 Hz
- Power consumption: 450 W
- Power connector in/out: Powercon input
- Data connector in/out: 3-pin / 5-pin XLR
- 2pcs 1/4 fastening Omega Clamps
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 410*320*520 mm (16.1*12.6*20.5 inch)
- Carton: 440*410*540 mm (17.3*16.1*21.3 inch)
- Net weight: 17.7 kg (39 lbs)
- Gross weight: 19.5 kg (43 lbs)
- Packing List

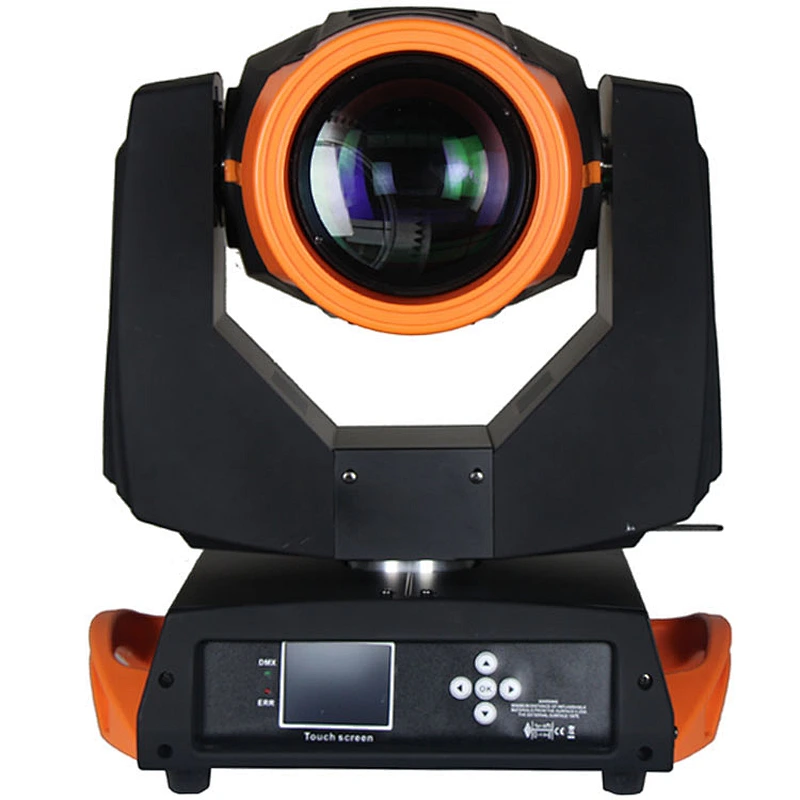

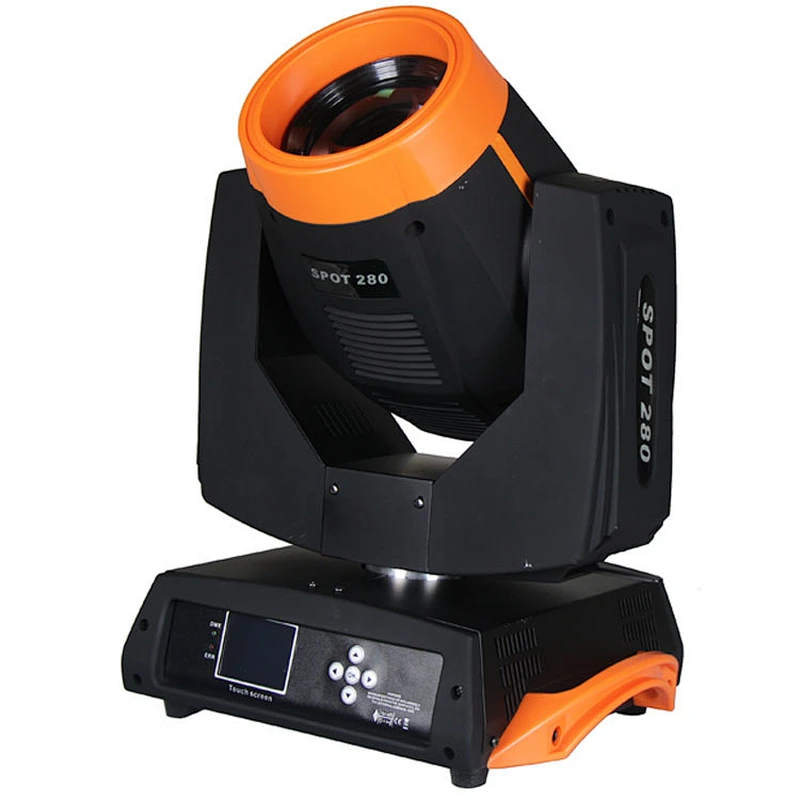

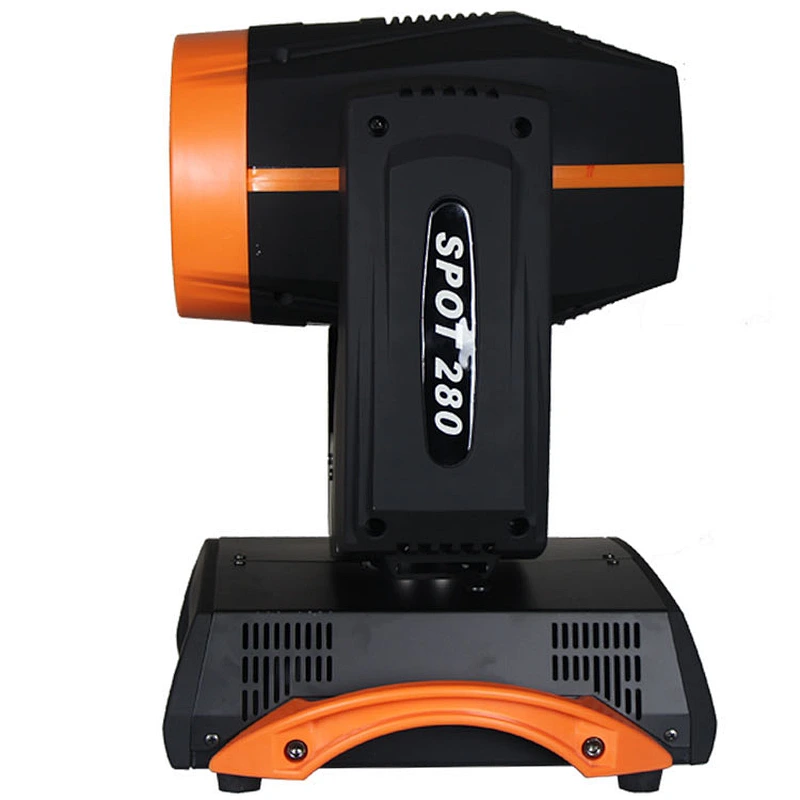

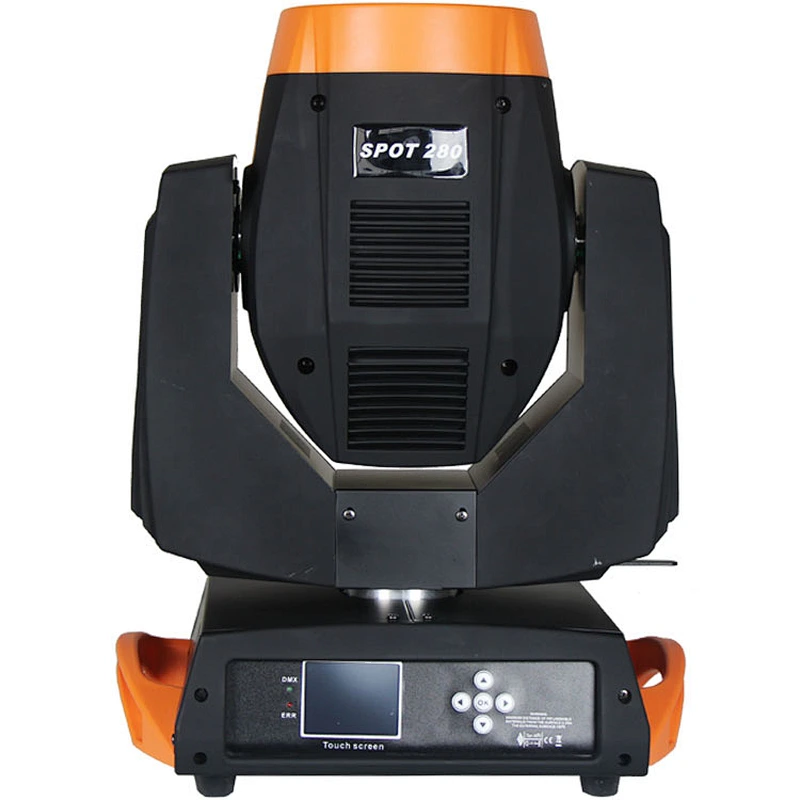

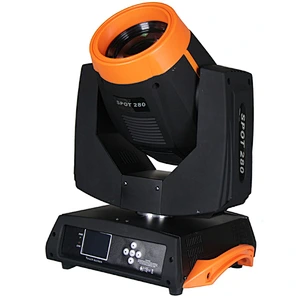

- BEAMSPOT 280
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
