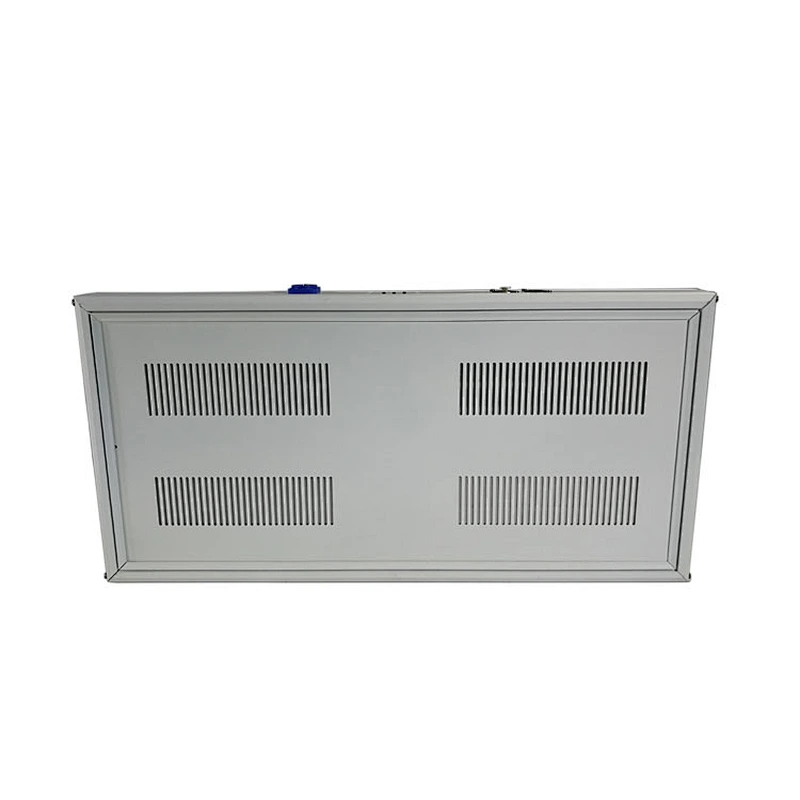

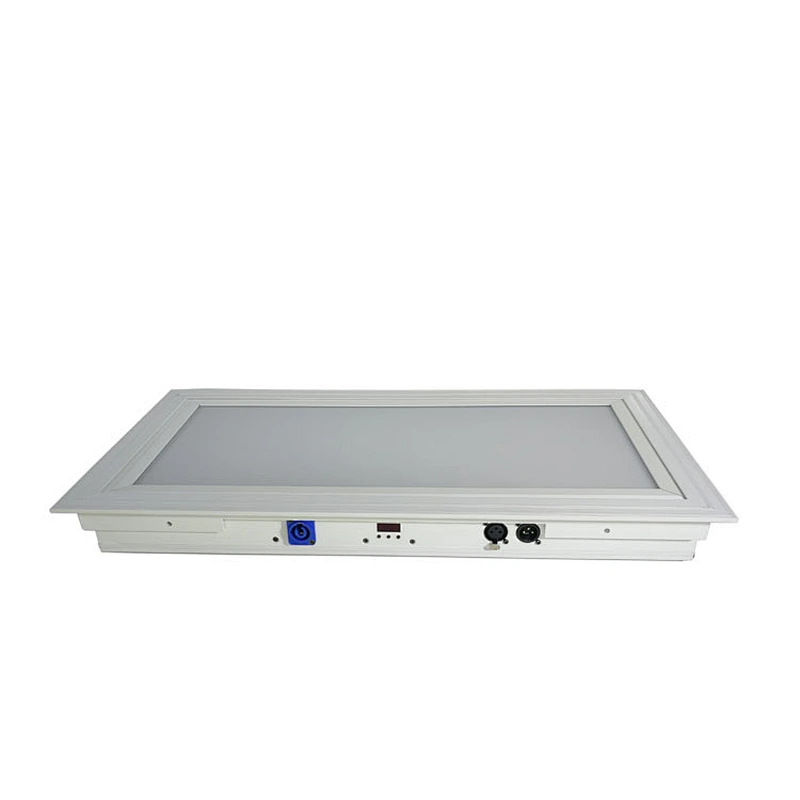

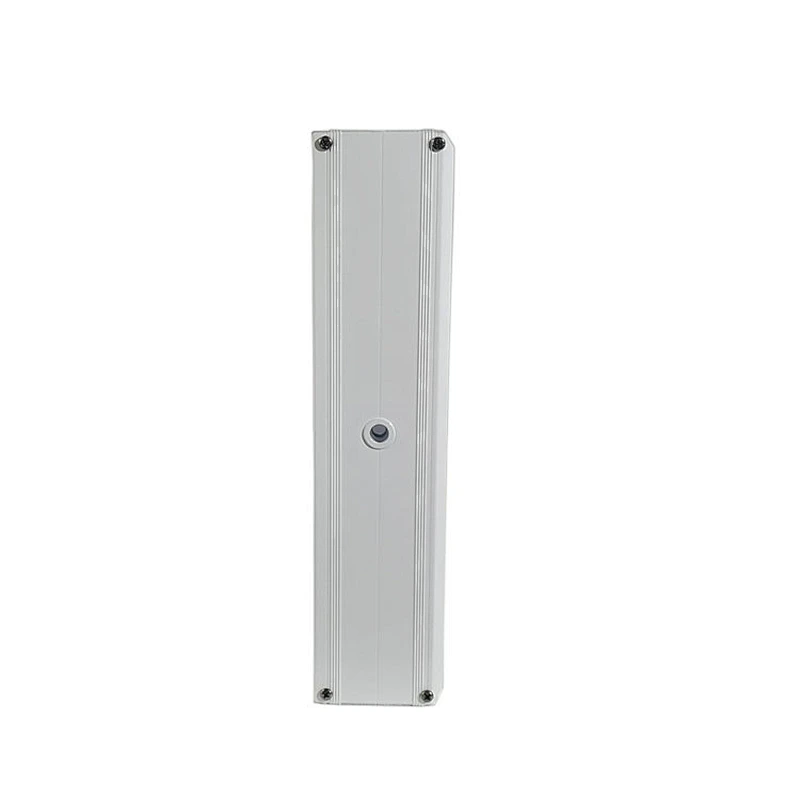

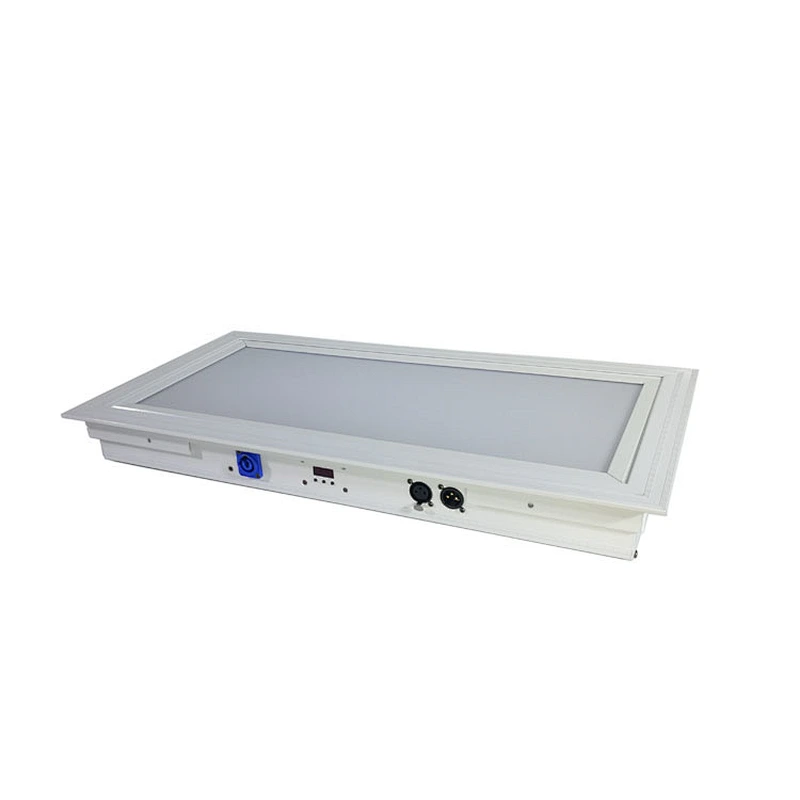

PANEL 256

.Optical System

1. Light source:256X0.5W LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 120°

• Dynamic Effects

1. Colour rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC90-240 V, 50-60 Hz, auto ranging
2. IEC standard or Powercon
3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 600*300*100mm (23.6*11.8*3.9inch)
2. Box: 650*350*150mm (25.6*15.4*5.9inch)
3. Net weight: 4.0 kg (8.8 lbs)
4. Gross weight: 4.5 kg (9.9 lbs)

• Packing List

1. Panel 256
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 4pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
