- Optical System

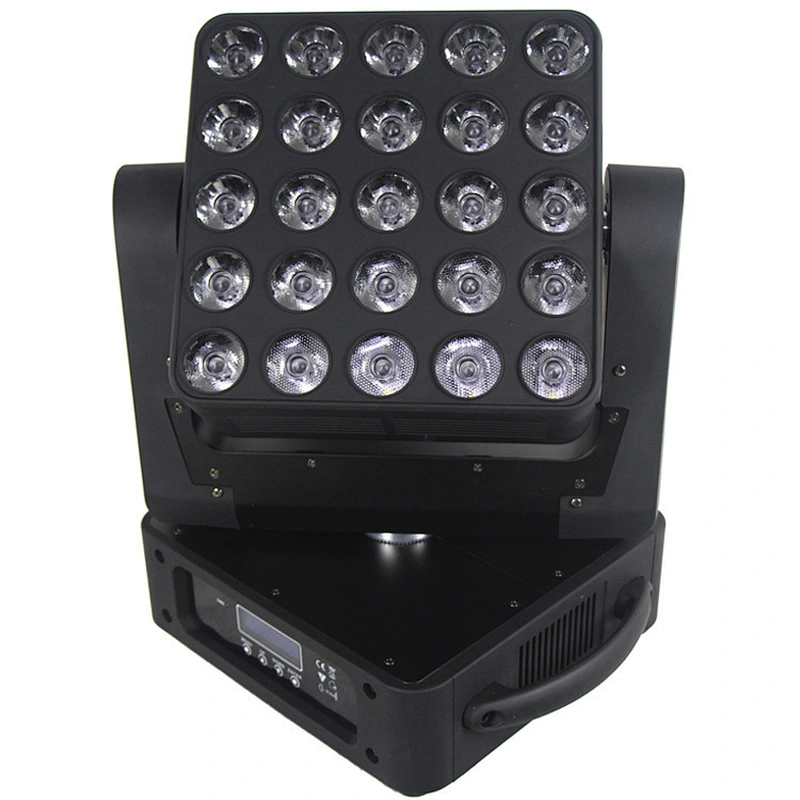

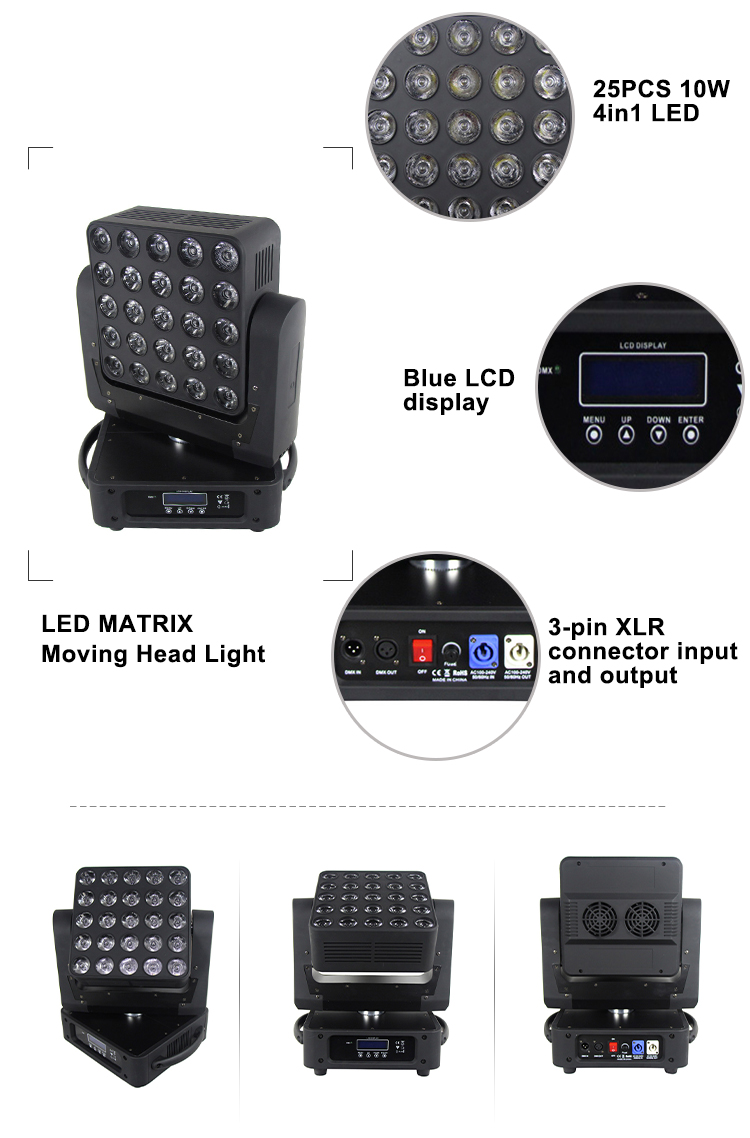

- Light source:25PCS 10W CREE 4in1 LED (XLamp XML)
- LED lifespan: 50,000 hours
- Beam angle: 8°
- Illuminance:5650LUX@7M at full RGBW
- Dynamic Effects

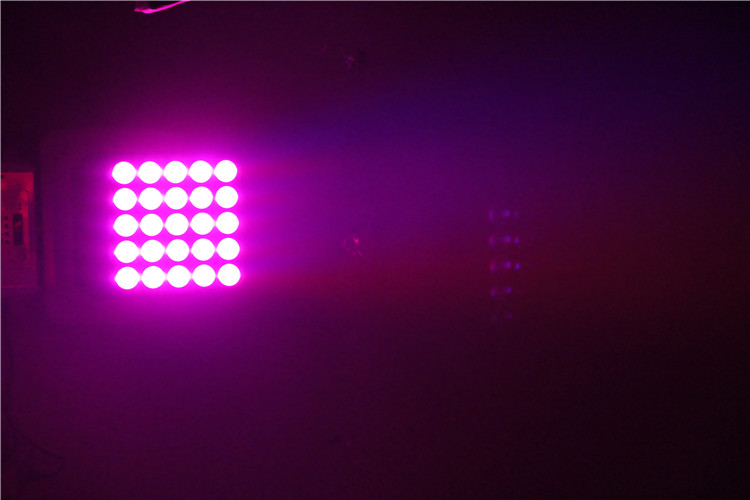

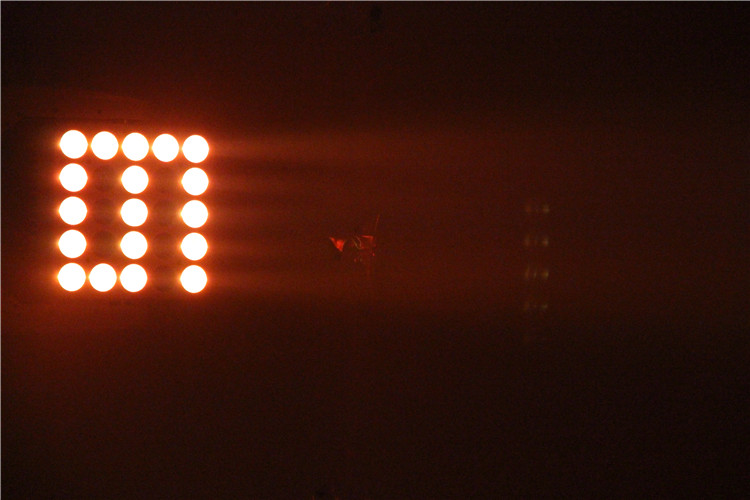

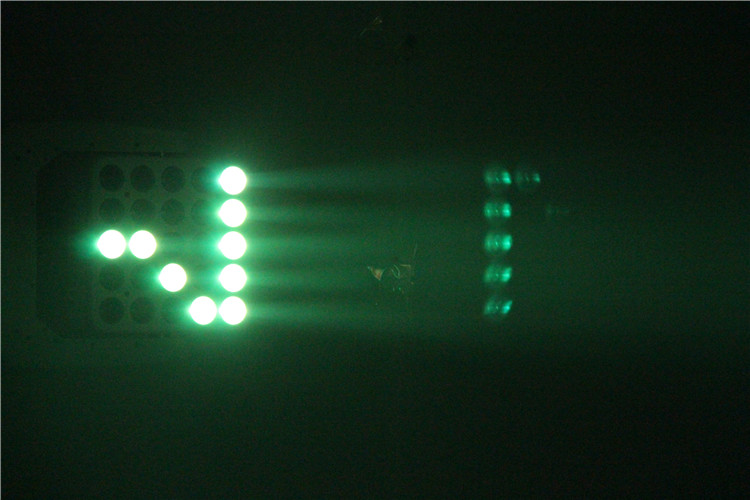

- Pixel control: 25 pixel (each LED as a pixel), individually controllable
- Attached an amazing effect according professional programming
- Built in varies of auto mode
- Buit in varies of macro function
- 0-100% electronic dimmer
- Shutter: 1-20 times/s strobe,variable/random strobe and dimming pulse effect
- Control and Program

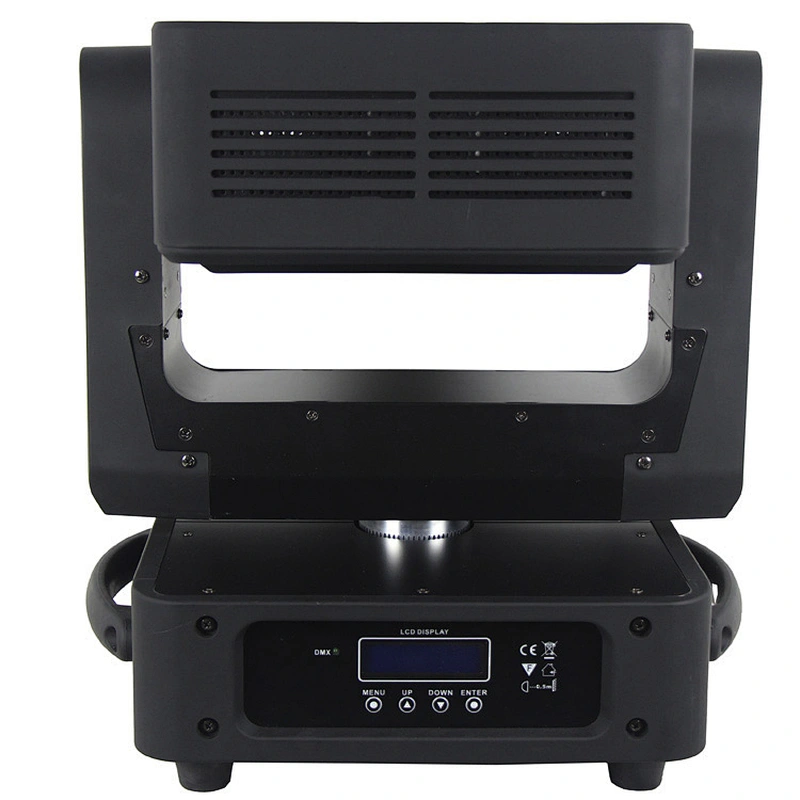

- Blue LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 16/37/112 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Housing
- Aluminium structure with die-cast plastic cover
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 300W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2PCS 1/4 turn fastening Omega clamp
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 460*320*590mm (18.1*12.6*23.2 inch)
- Carton: 490*400*550mm (19.3*15.7*21.7 inch)
- Net weight: 16.5 kg (36.4 lbs)
- Gross weight: 19 kg (41.9 lbs)
- Packing List

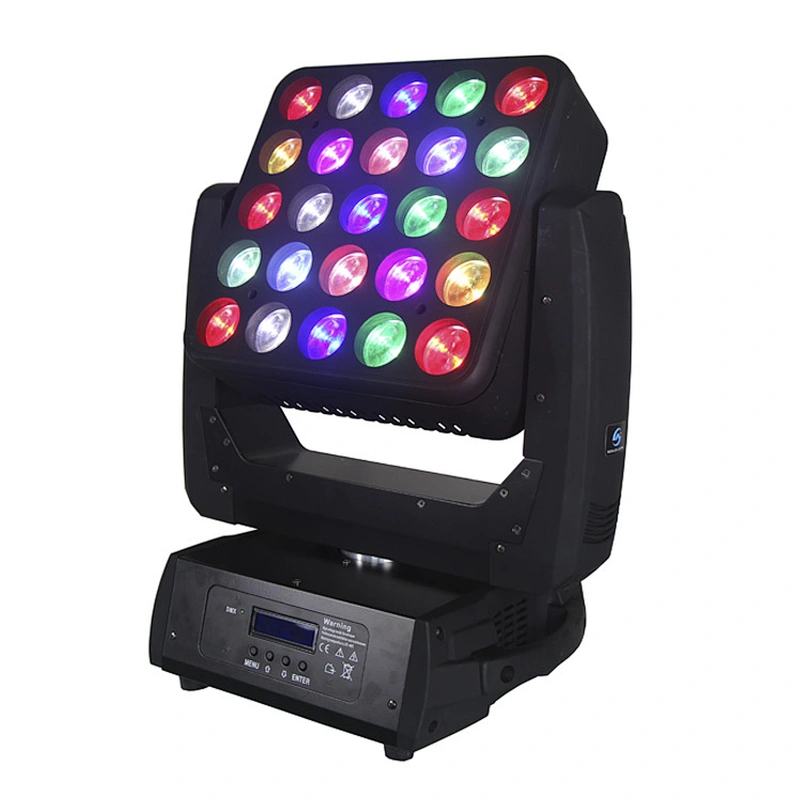

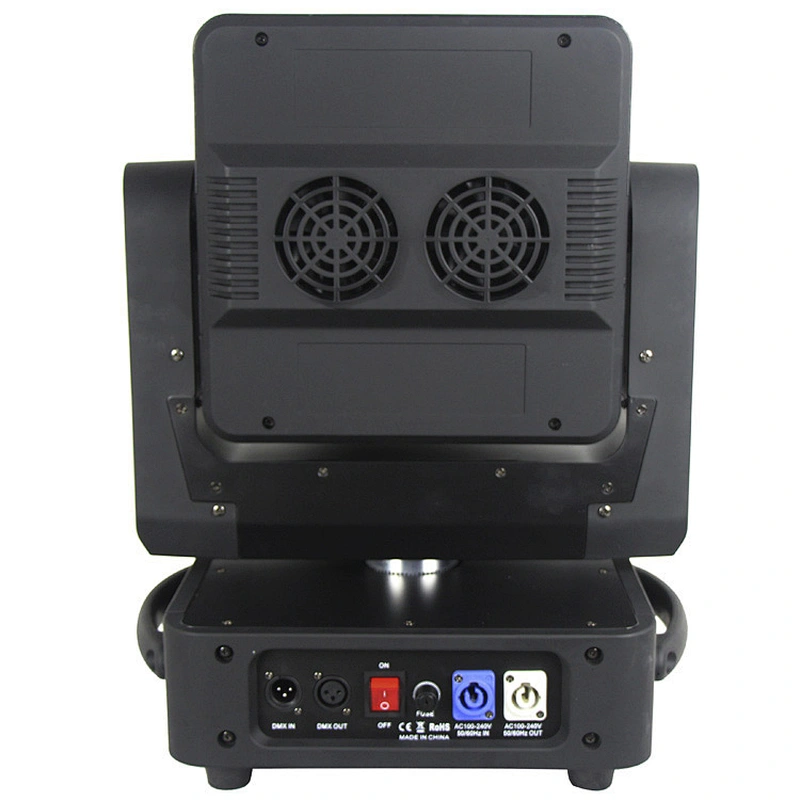

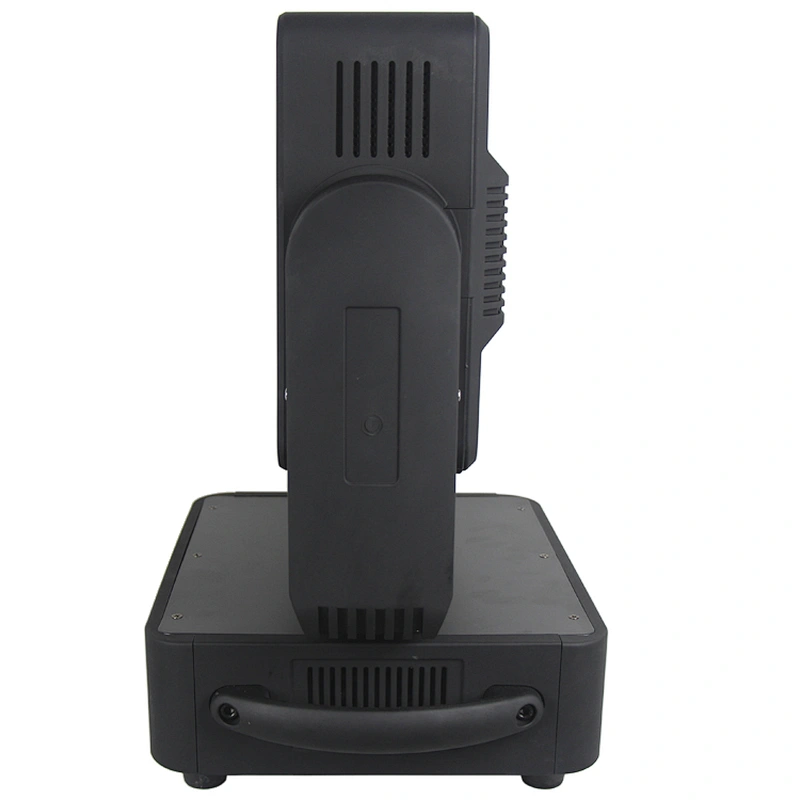

- MATRIX 2510
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
