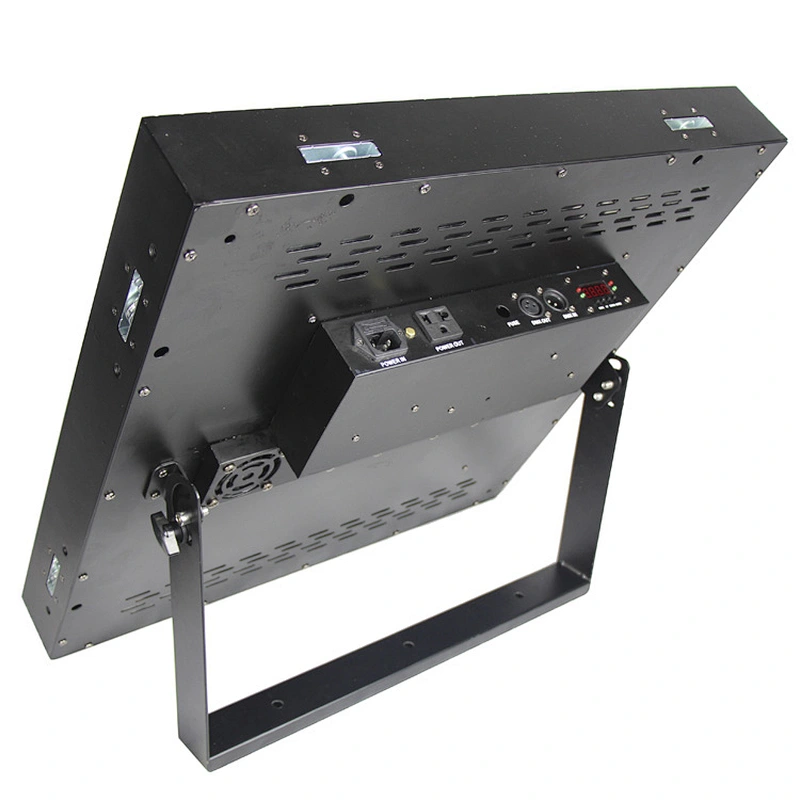

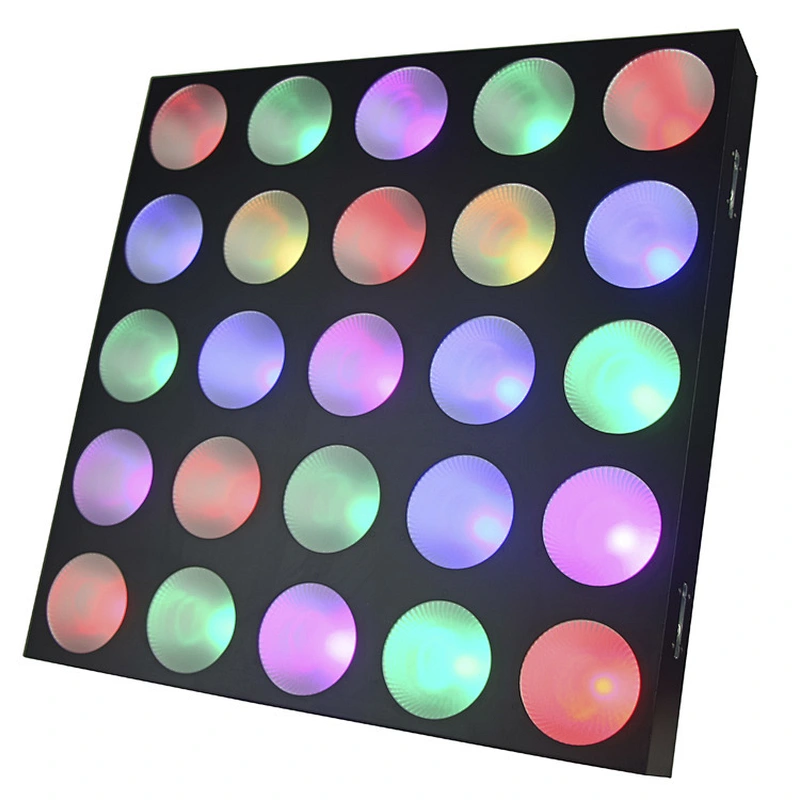

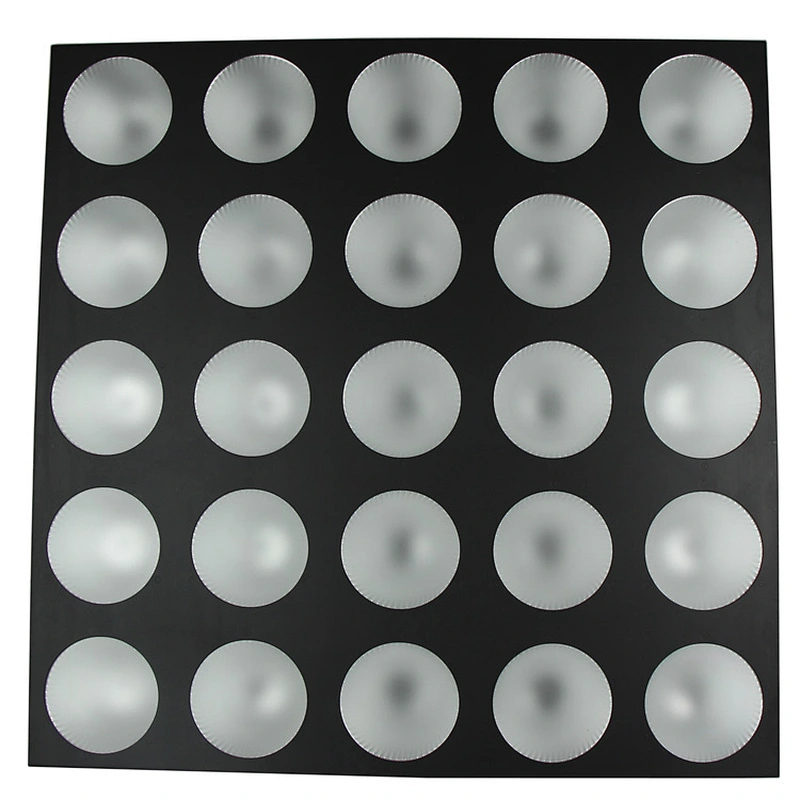

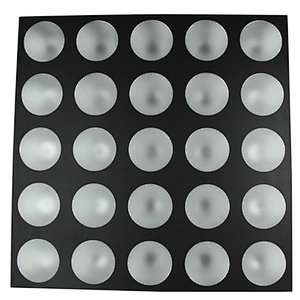

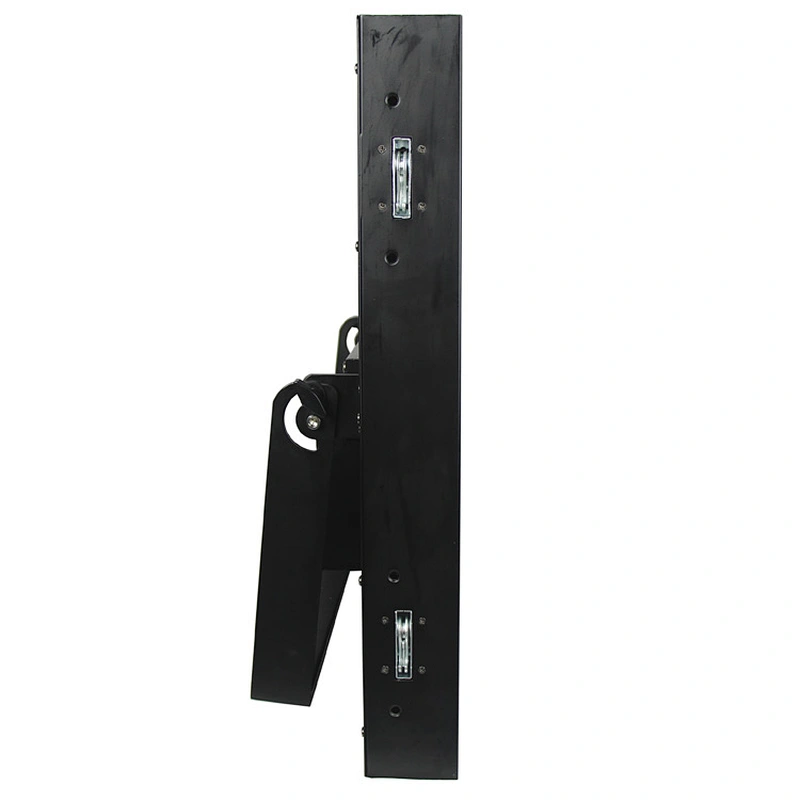

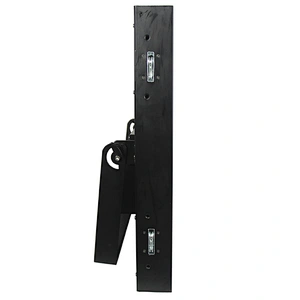

MATRIX 2510

.Optical System

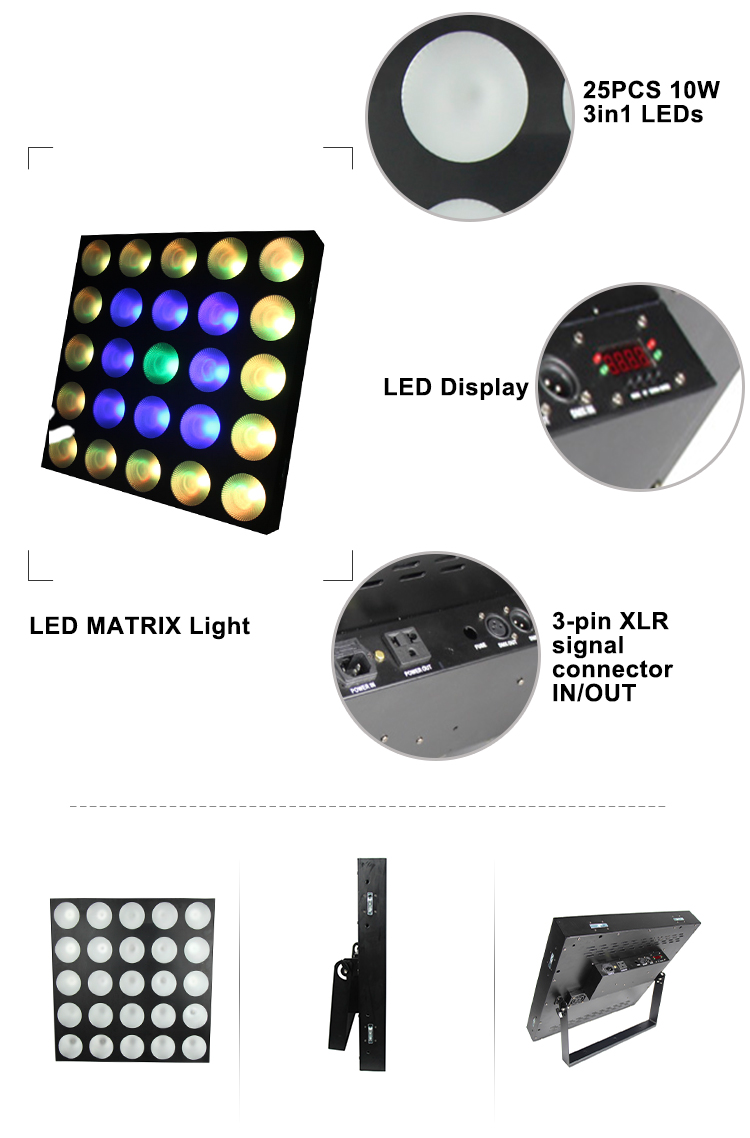

1. Light source:25X10W 3IN1 (6500K option) led
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 25°

• Dynamic Effects

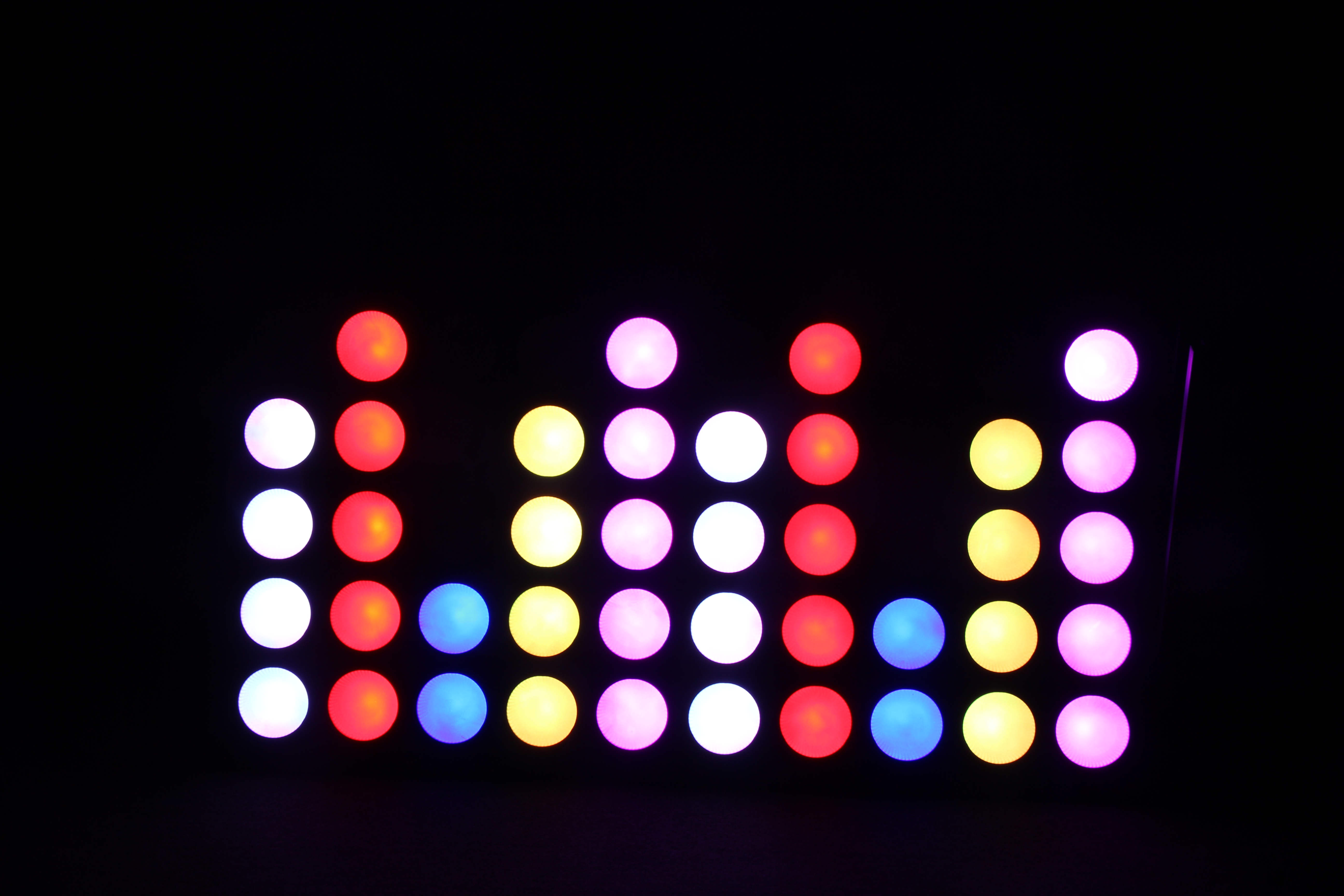

1. 25 pixels (each LED is a pixel), controllable individually
2. 0-100% smooth linear dimming system
3. Shutter: 1-20times/sec high speed strobe, speed adjustable

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Control Channels: 8/75/80 DMX channel
3. Built-in pre-program
4. Marco function

• Electrical Specification and Connections

1. Input voltage: AC90-240 V, 50-60 Hz, auto ranging
2. IEC standard or Powercon
3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 575*575*160mm (22.6*22.6*6.3inch)
2. Box: 630*190*630mm (24.8*7.5*24.8inch)
3. Net weight: 13.0 kg (28.7 lbs)
4. Gross weight: 15.0 kg (33.1 lbs)

• Packing List

1. Led matrix 2510
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 6pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
