- Optical System
- Light source: high brightness 150W LED
- Colour temperature: 7500K
- LED lifespan: 50,000 hours
- Lens angle: 13°
- Dynamic Effects
- Colour wheel: 8 colours + white
- Rotating gobo wheel：7 rotating gobos + open
- Gobo size:external diameter 25.9mm, inner diameter 17.9mm
- Fixed gobo wheel: 8 fixed gobos + open
- A rotating 3-facet round prism
- A rotating 6-facet linear prism
- Bi-directional rotating and speed adjustable
- Colour rainbow effect
- Water flow effect
- Shaking effect
- Linear focus
- 0-100% smooth linear dimming system
- Shutter: 1-25 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program

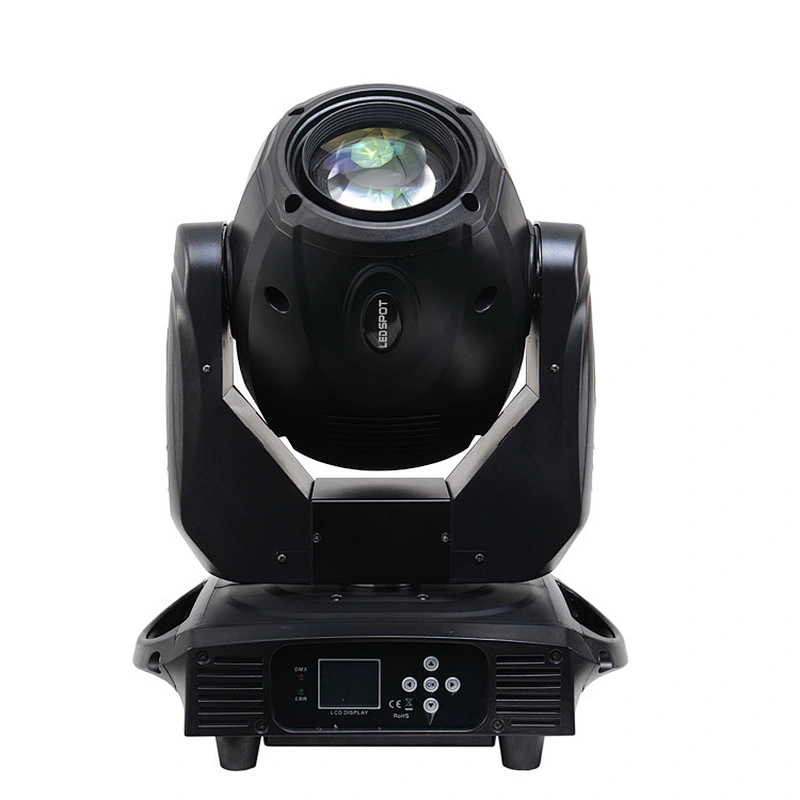

- 5-buttons touch panel
- LCD display, brightness and contrast ratio adjustable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels:16 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC100-240V,50-60 Hz
- Power consumption: 180W

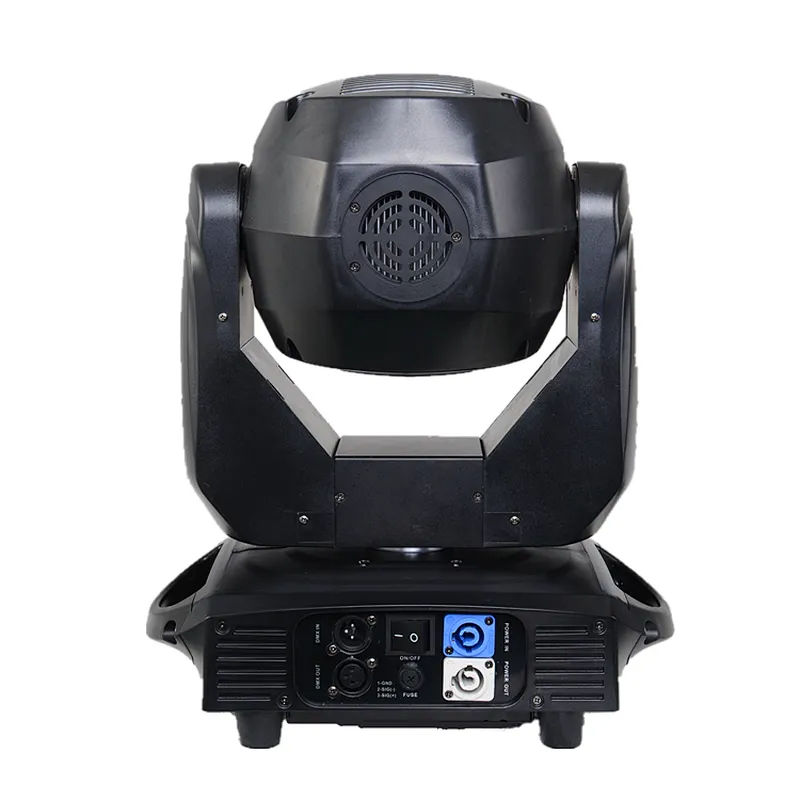

- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 360*220*450mm (14.2*8.7*17.7 inch)
- Carton: 415*350*350mm (16.3*13.8*13.8 inch)
- Net weight: 13 kg (28.7 lbs)
- Gross weight: 15 kg (33 lbs)
- Packing List

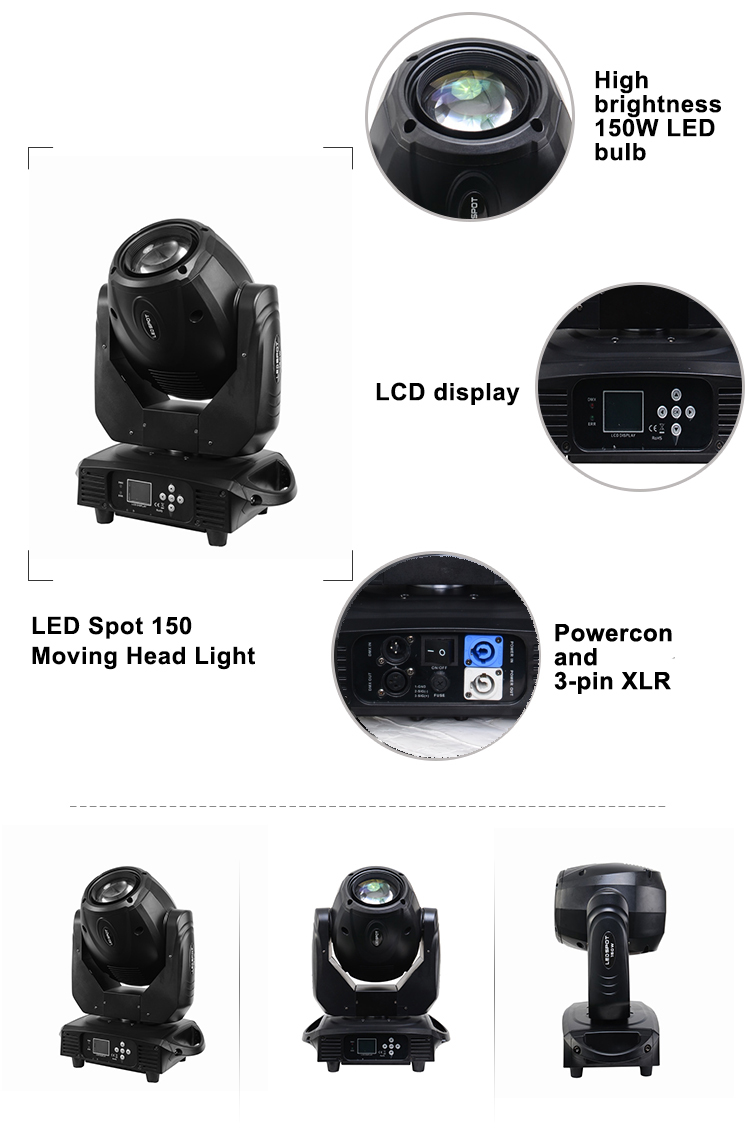

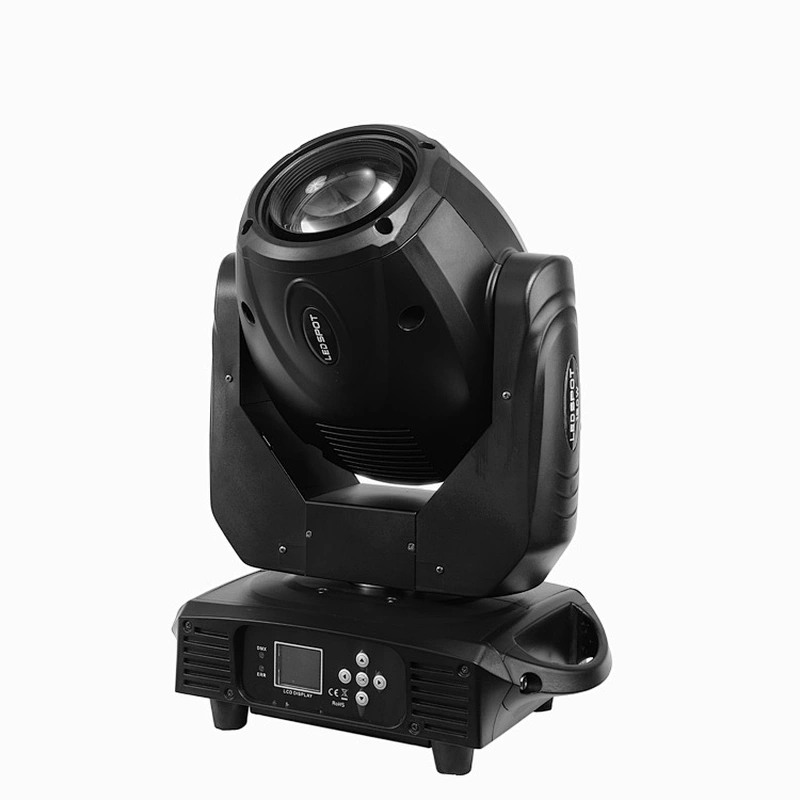

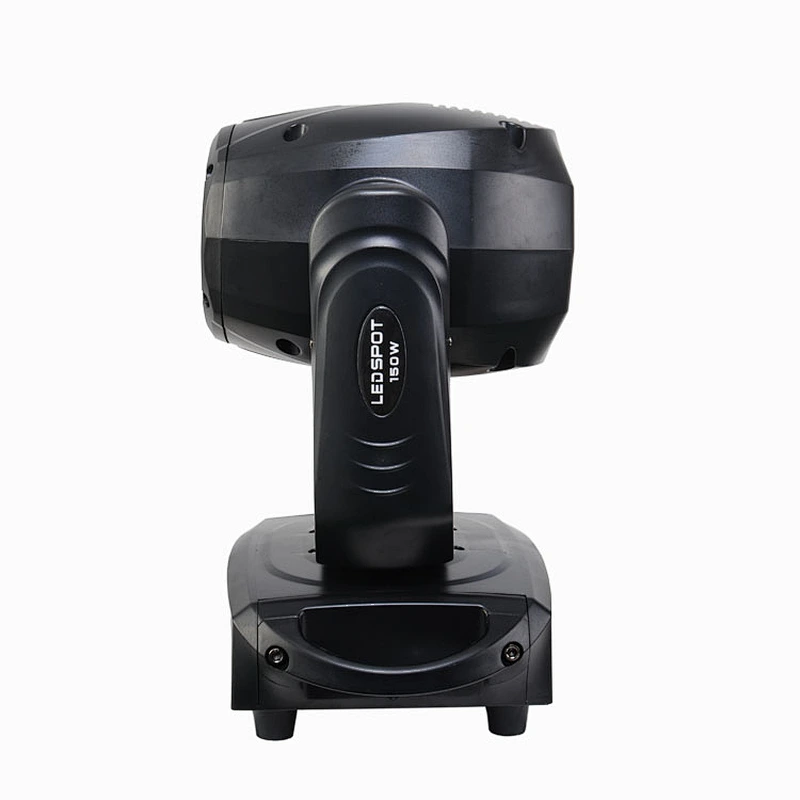

- LED Spot 150
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
