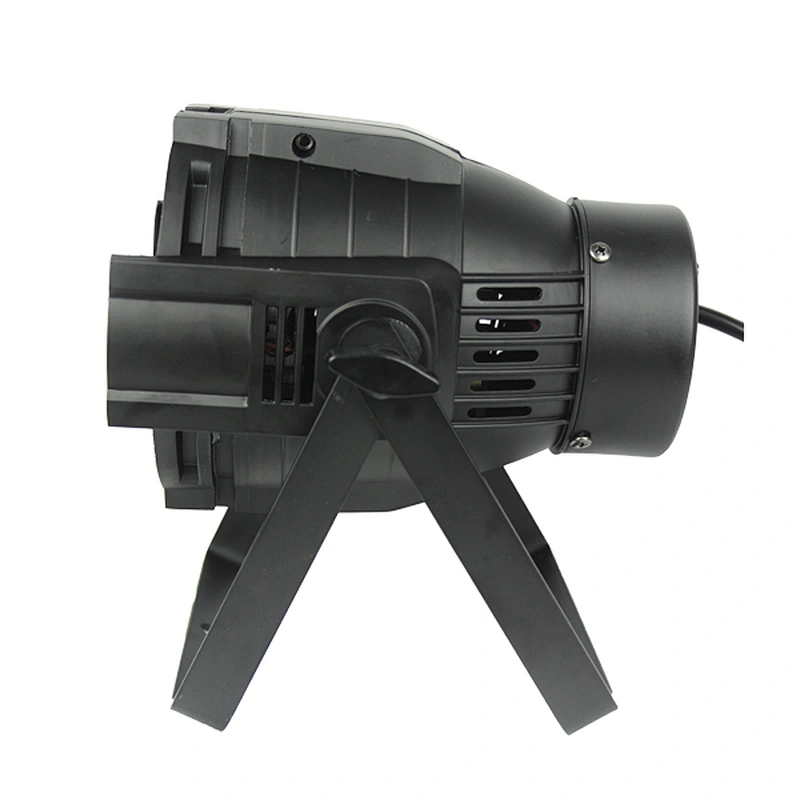

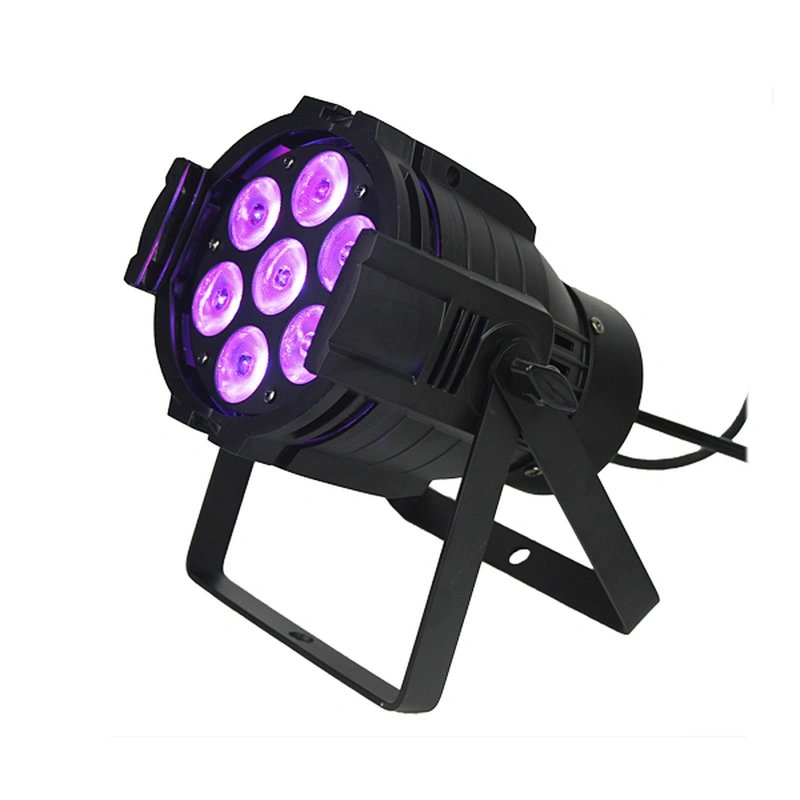

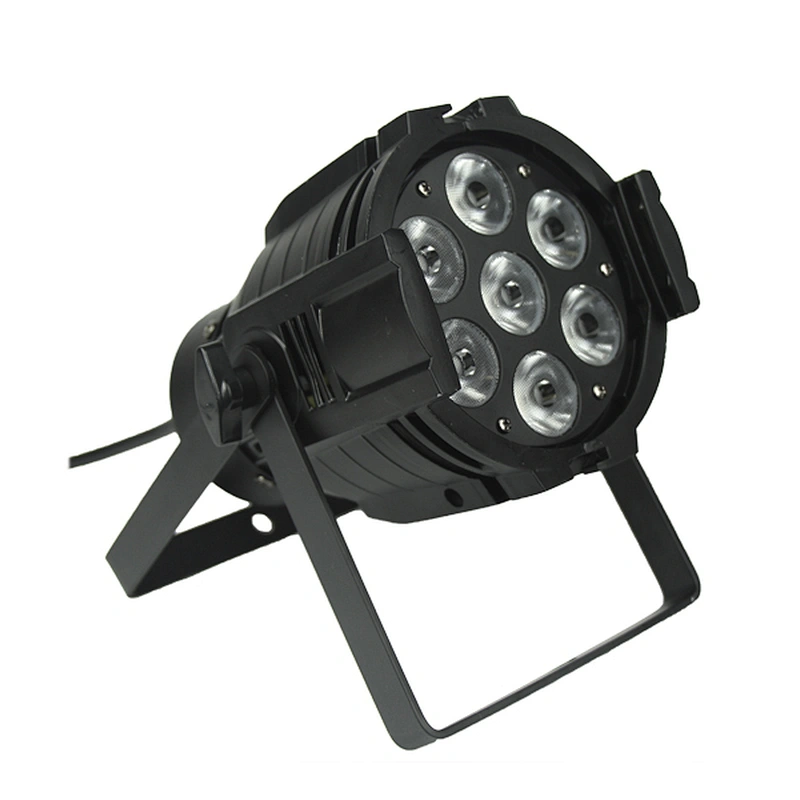

LEDRAR 70

.Optical System

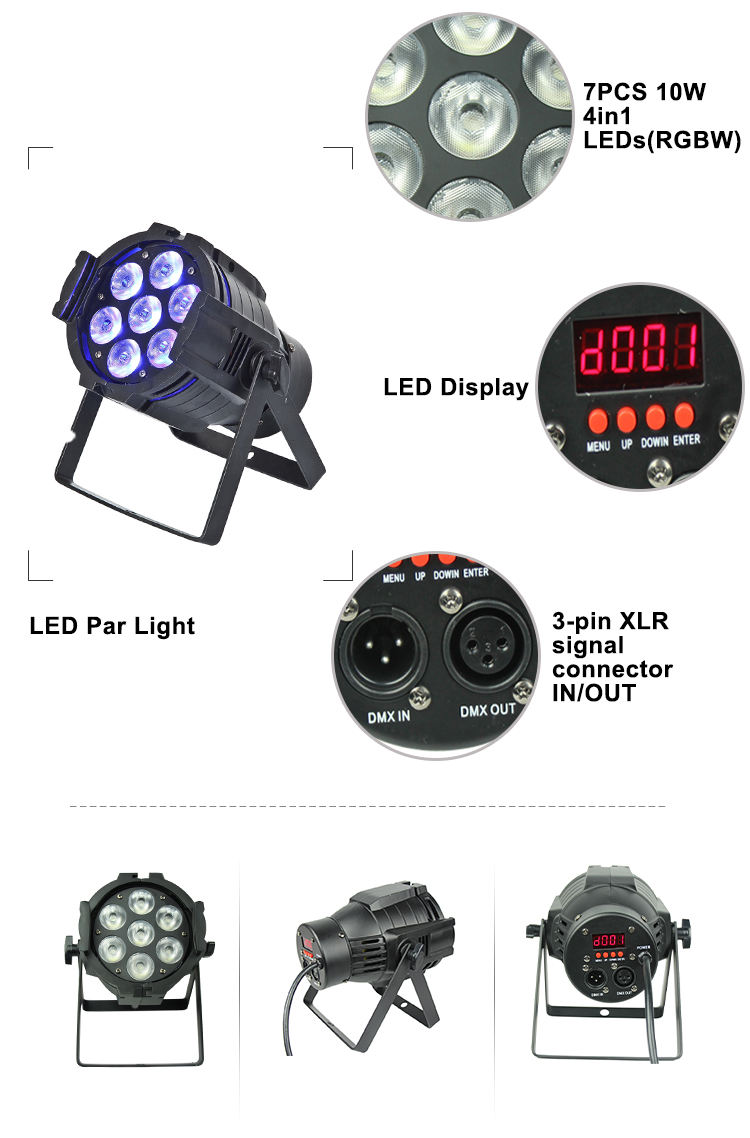

1. Light source:7X10W 4IN1 LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 25°(45° optional)
4. 70LUX at 7meters

• Dynamic Effects

1. Colour rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC90-240 V, 50-60 Hz, auto ranging
2. IEC standard or Powercon

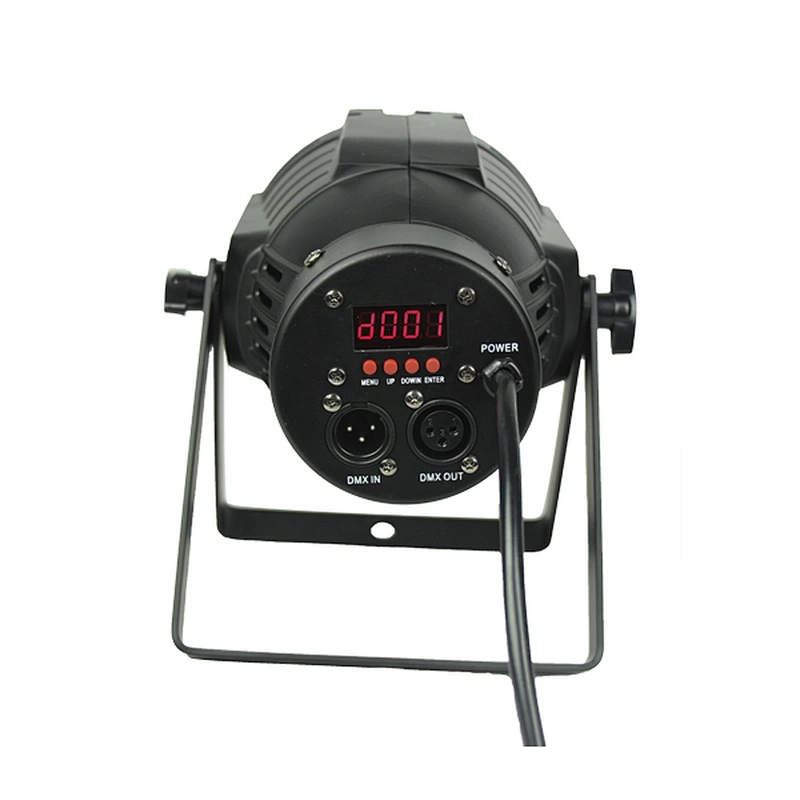

3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 190*140*235mm (7.5*5.5*9.3inch)
2. Box: 190*190*285mm (7.5*7.5*11.2inch)
3. Net weight: 1.3kg (2.9 lbs)
4. Gross weight: 1.7 kg (3.7 lbs)
5. Carton (6pcs-in-1): 600*400*310mm, 12kg (23.6*15.7*12.2 inch, 26.5 lbs)

• Packing List

1. LEDRAR 70
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 12pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
