- Optical System
- Light source: 1PCS 60W OSRAM 4IN1 LED
- LED lifespan: 50,000 hours
- Beam angle: 5°
- Dynamic Effects
- Emitting color: RGBW 4-in-1
- 0-100% smooth linear dimming system
- Shutter: 0-20 times/sec high speedLED electronic strobe
- Control and Program
- LCD display, brightness and contrast ratio adjustable
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 18 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Movement
- Pan movement: 540°andendless rotation
- Tilt movement: 360°andendless rotation
- Fast and accurate Pan/Tilt rotation
- Scanner position memory function
- Automatic reset function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 100W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 215*220*300mm (8.5*8.7*11.8 inch)
- Carton: 290*280*410mm (11.4*11*16.1 inch)
- Net weight: 4.5 kg (9.9 lbs)
- Gross weight: 5.8 kg (12.8 lbs)
- Packing List

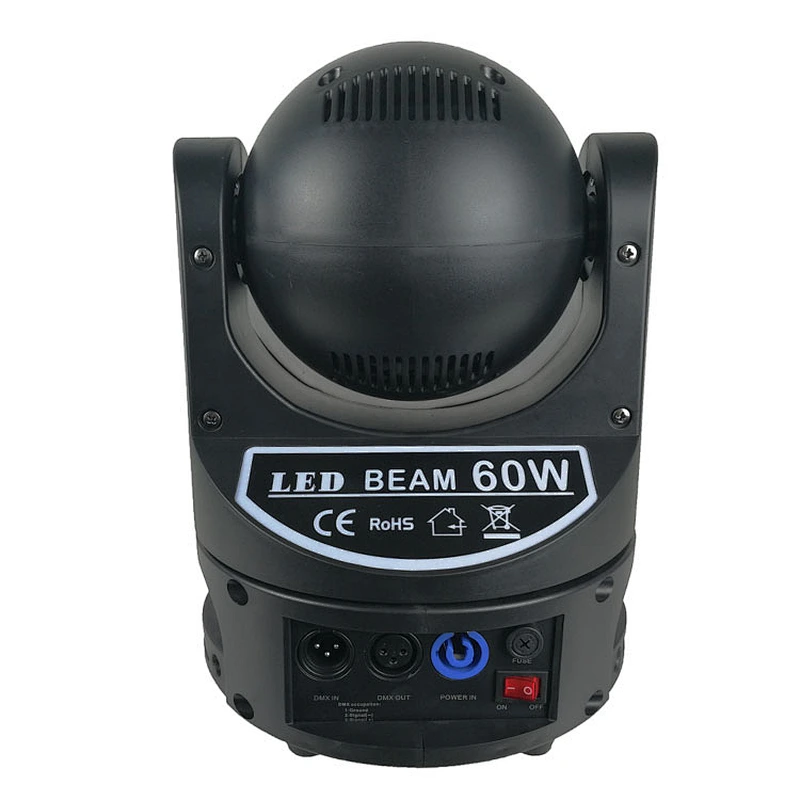

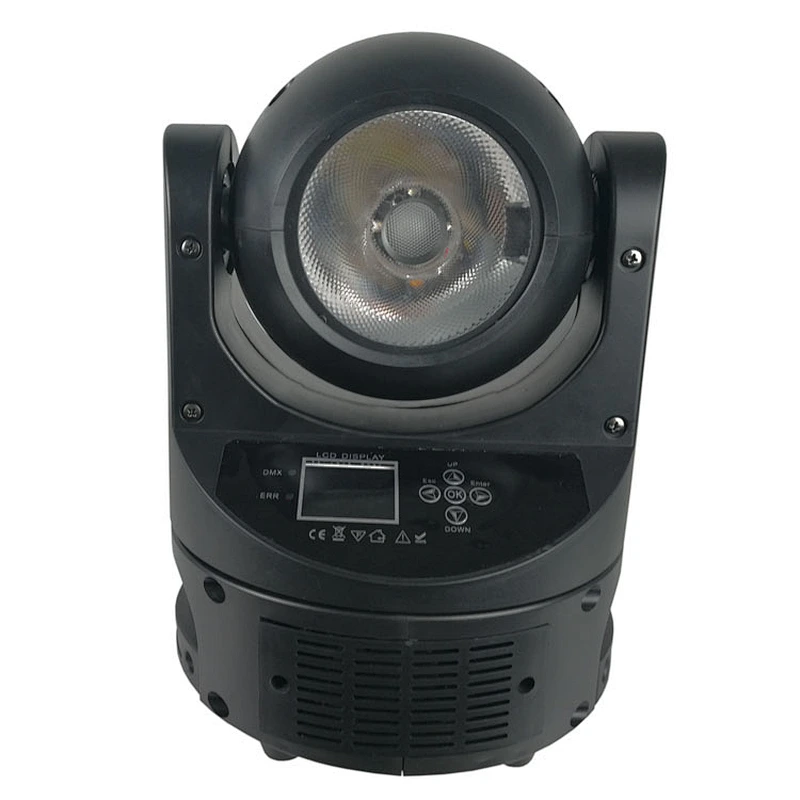

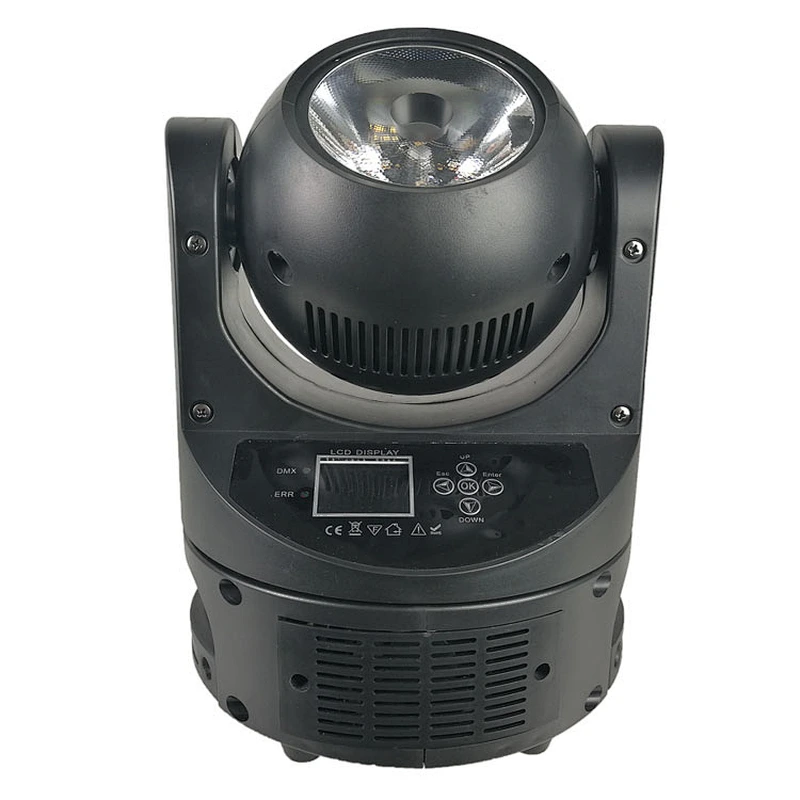

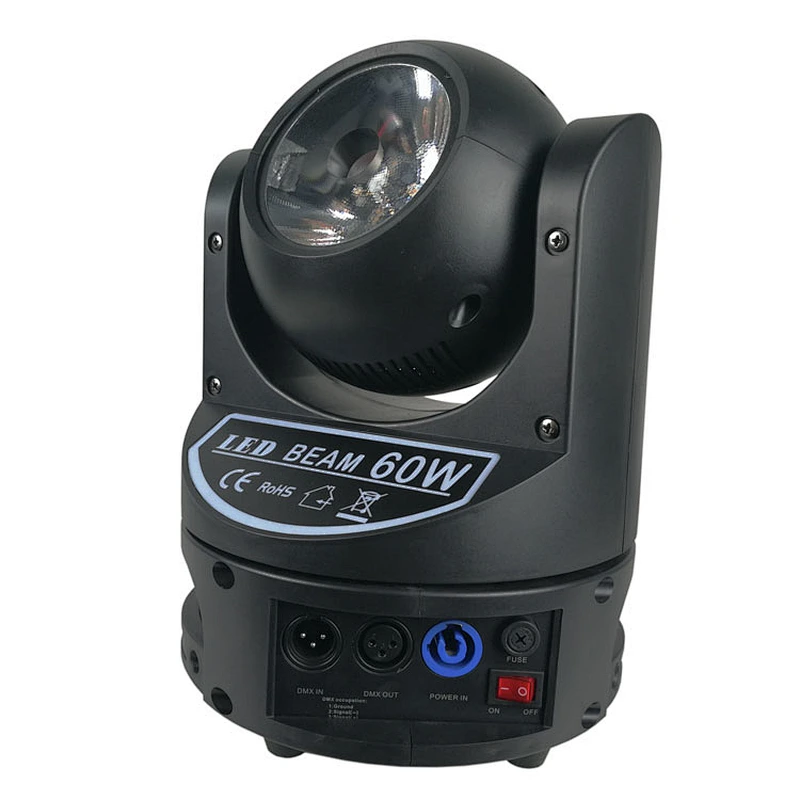

- LEDBEAM 60
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case
- Clamp
- Safety rope
- DMX wire
