• Optional Models

• Optical System

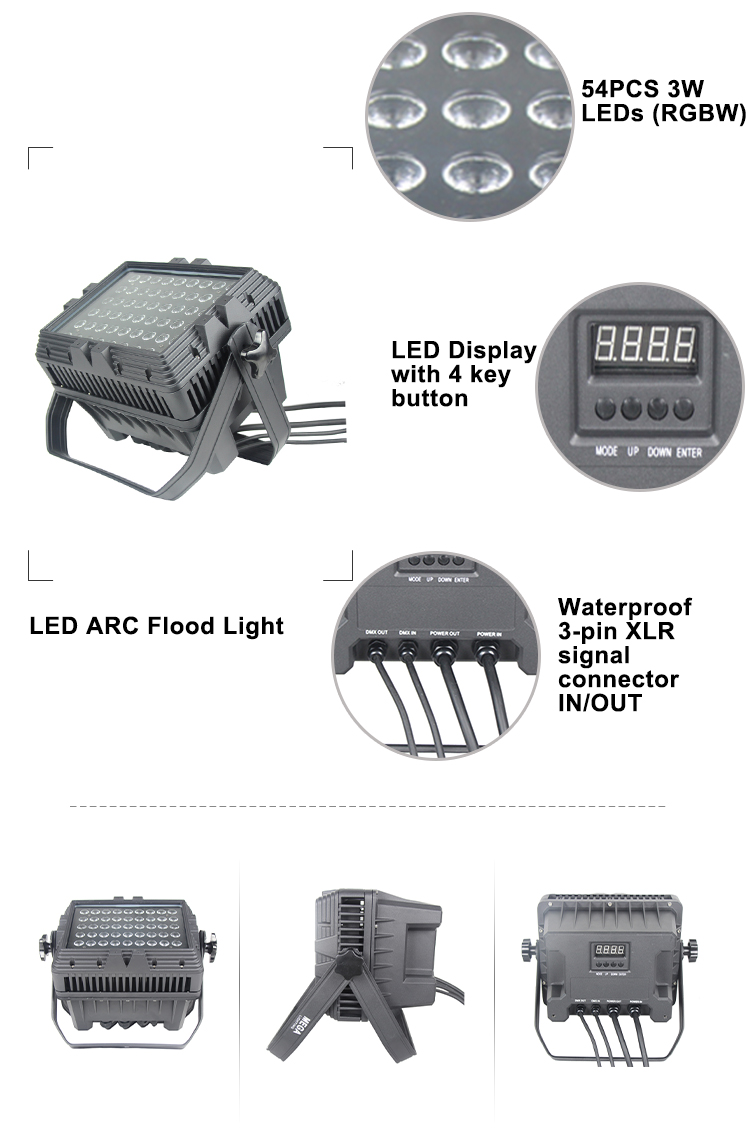

1. Light source: 54pcs 3W LED
2. LED lifespan: min. 50,000 - 80,000 hours
3. Lens angle: 25°

• Dynamic Effects

1. LED rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-25 times/sec high speed strobe, speed adjustable

• Control and Program

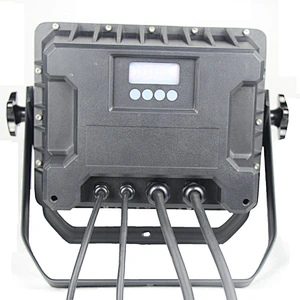

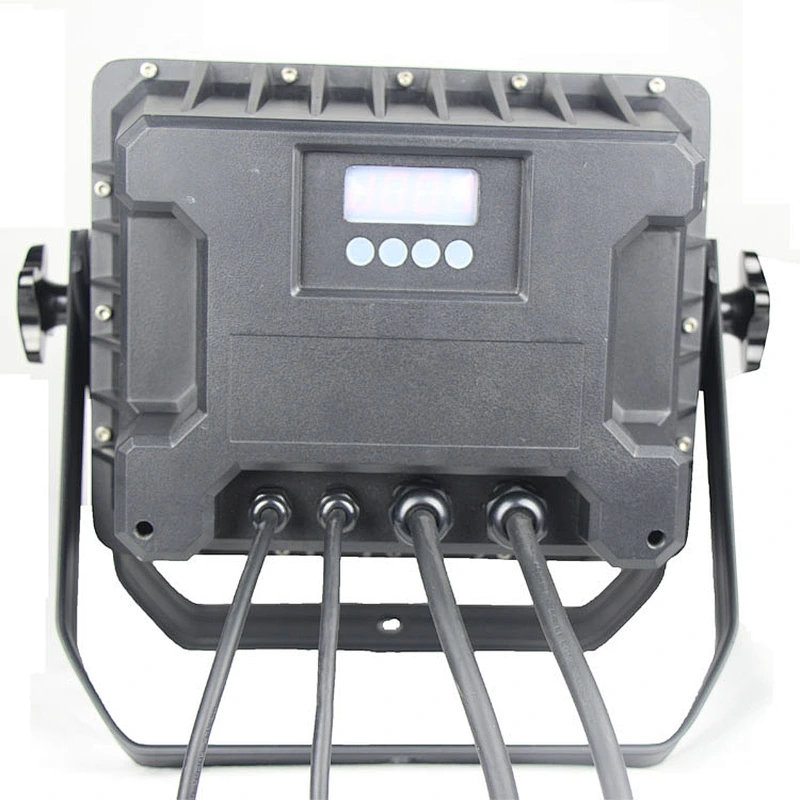

1. LED display
2. Protocol: DMX512, master-slave, sound control, auto
3. Built-in pre-programs
4. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC90-240 V, 50-60 Hz
3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 350*215*270mm (13.8*8.5*10.6inch)
2. Carton: 370*330*285mm (14.6*13.0* 11.2inch)
3. Net weight: 7.8 kg (17.2 lbs)
4. Gross weight:8.5 kg (18.7 lbs)
5. Carton :（2-in-1）700*390*305mm (27.6*15.4*12.0inch) 19.6KG (43.2 lbs)
6. Die-castAluminum housing and metal base

• Packing List

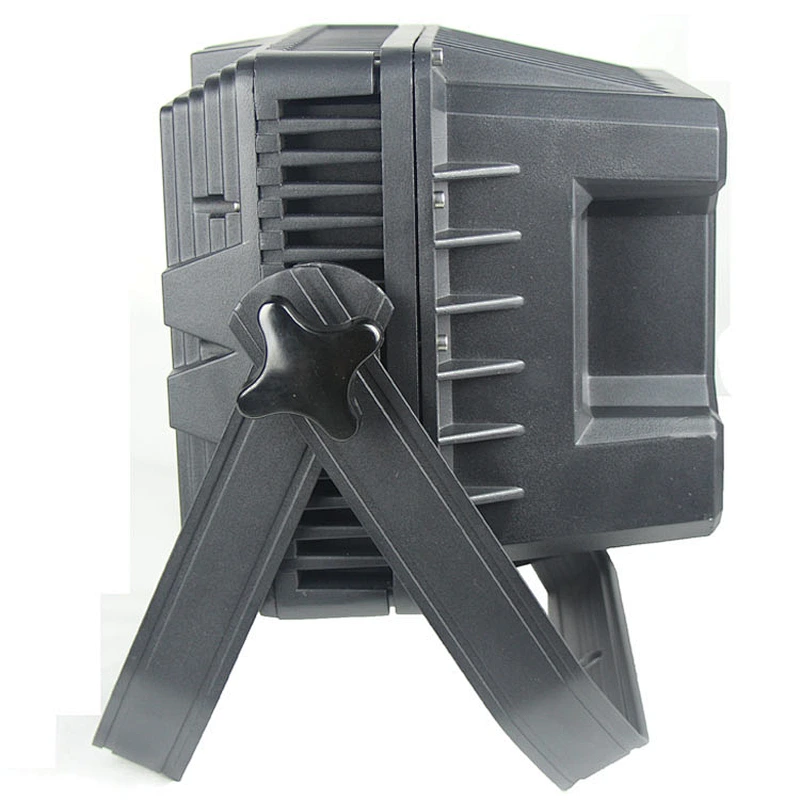

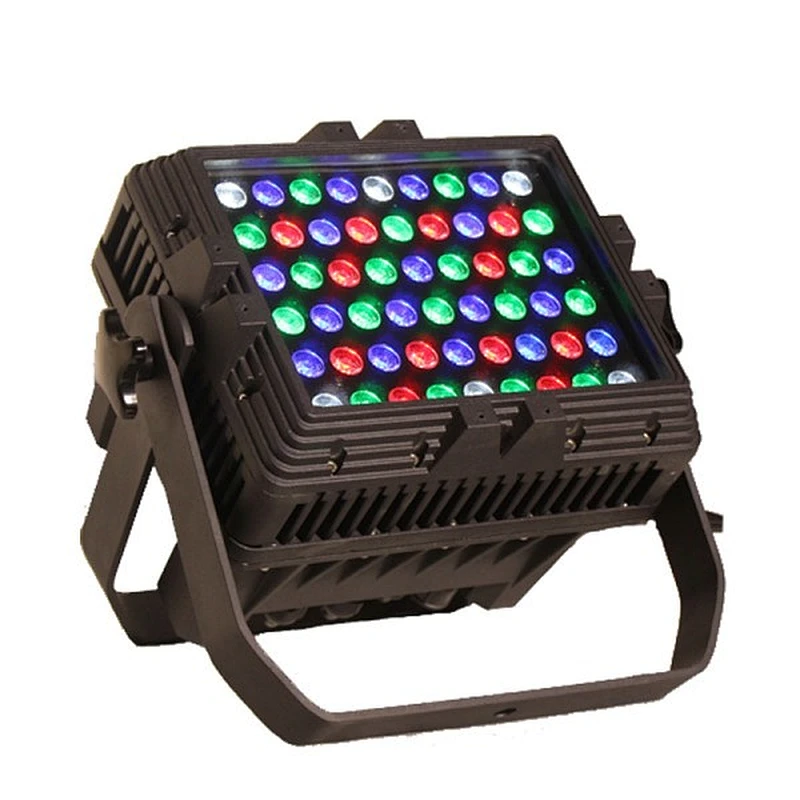

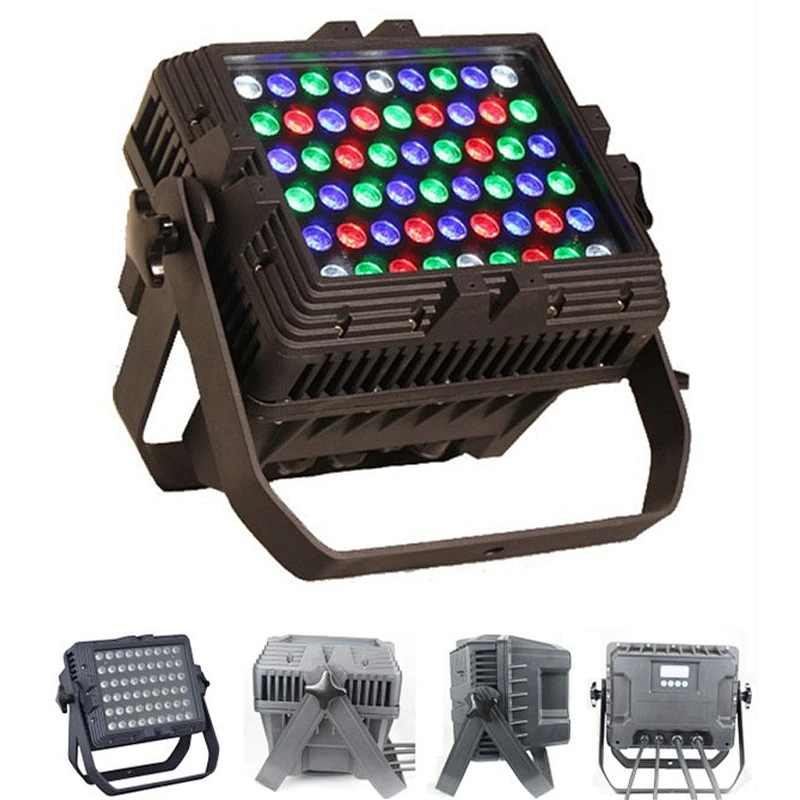

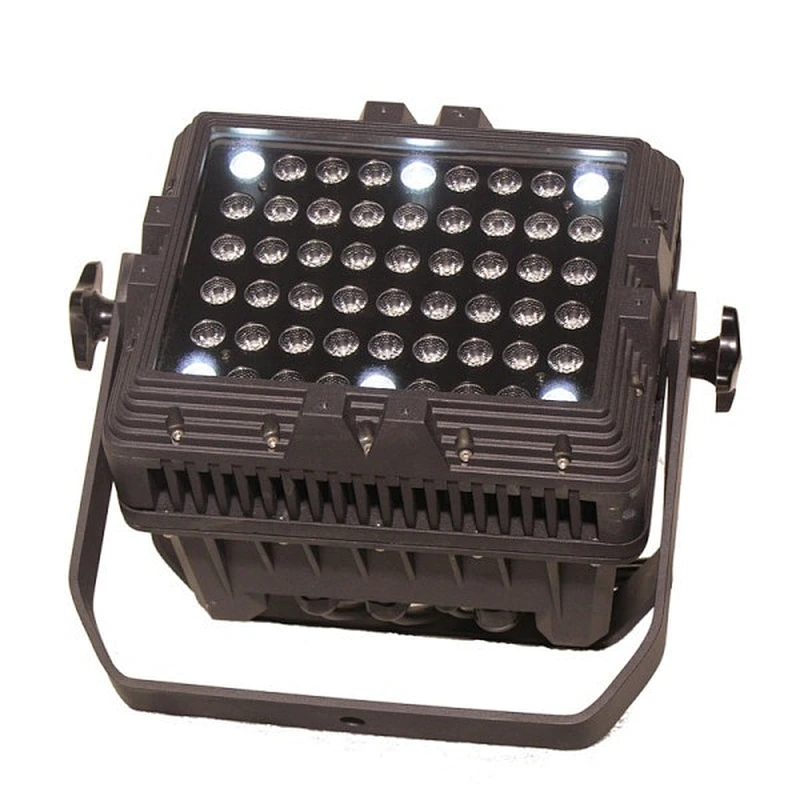

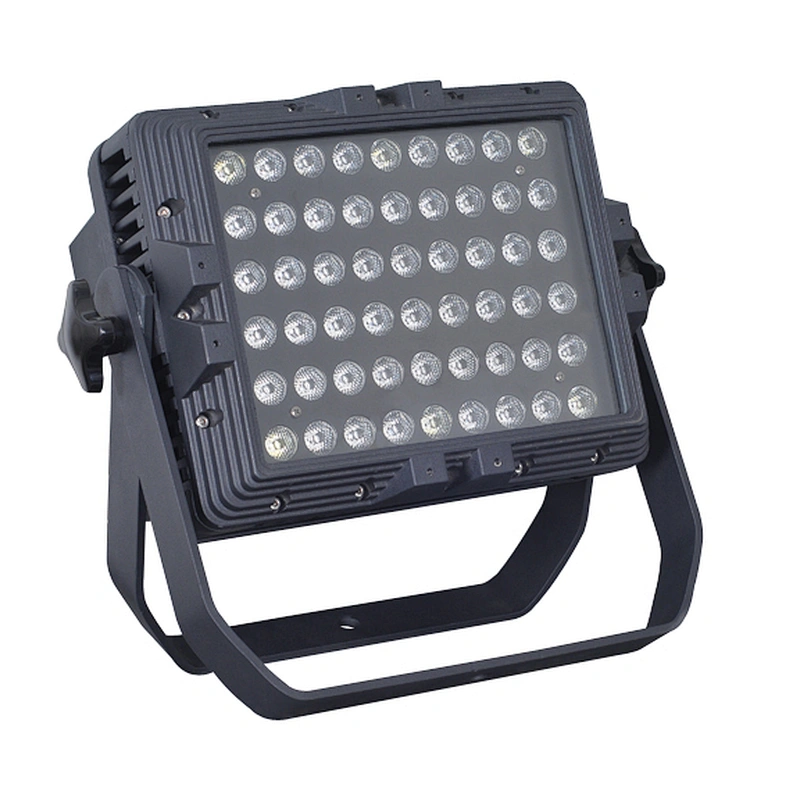

1. LEDARC 354
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

• Optional Accessories

1. Flight case
2. Clamp
3. Safety rope
4. Cable DMX extensivo

、
