- Optional Models
| Model NO. | Power Consumption | Light Source | Emitting Color | Lens Angle | Lens Optional | DMX Channels |
| MJ-2009A 1W25DRGB | 36W | 36*1W | RGB | 25° | 15°, 45°, 60° | 3/7CH |
| MJ-2009A 3W25DRGB | 108W | 36*3W | RGB | 25° | 15°, 45°, 60° | 3/7CH |
| MJ-2009A 3W25D3200K | 108W | 36*3W | 3200K | 25° | 15°, 45°, 60° | 3/7CH |
- Optical System
- Light source: 36pcs LED beads
- LED lifespan: min. 50,000 - 80,000 hours
- Lens angle: 25° (15°, 45°, 60° optional)
- Dynamic Effects
- LED rainbow effect
- 0-100% smooth linear dimming system
- Shutter: 1-18 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program
- LED display
- Protocol: DMX512, master-slave, sound control, auto
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC90-240 V, 50-60 Hz
- Power connector in/out: waterproof power plug
- Data connector in/out: wasterproof 3-pin XLR
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP65
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 330*215*170mm (13.0*8.5*7.0inch)
- Carton: 380*300*190mm (15.0*11.8*7.5 inch)
- Net weight: 5.8 kg ( 12.8lbs)
- Gross weight:6.8 kg ( 15.0lbs)

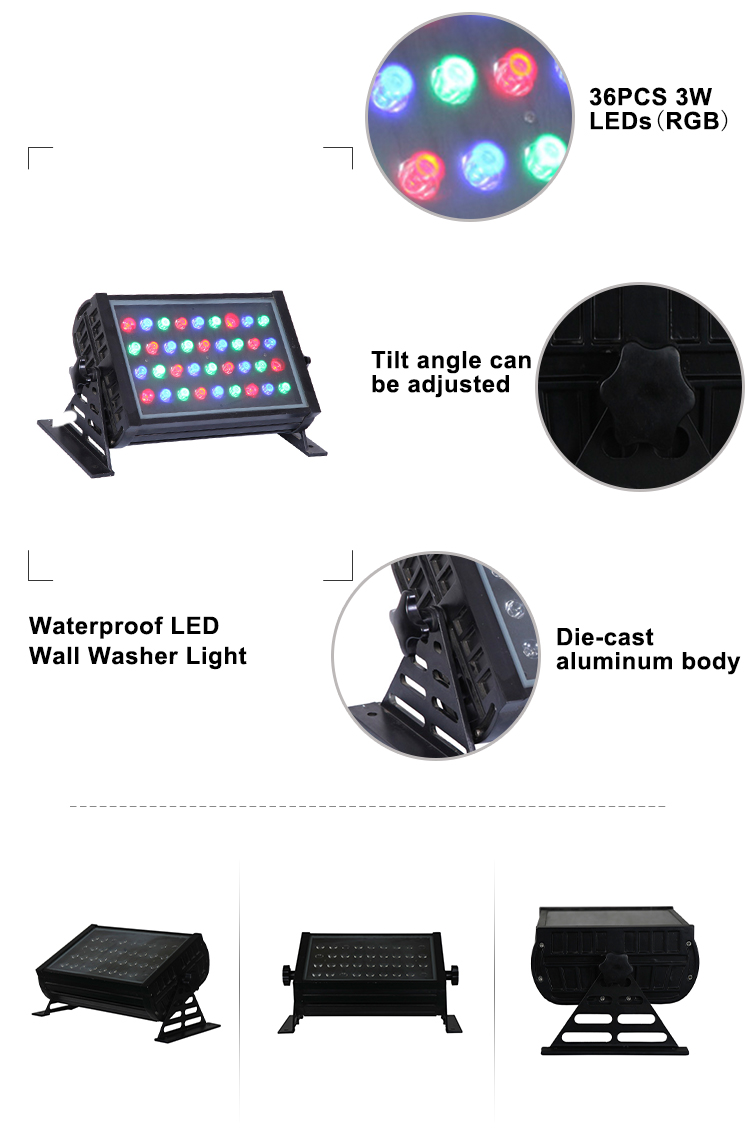

- Die-castAluminum housing and metal base
- Packing List

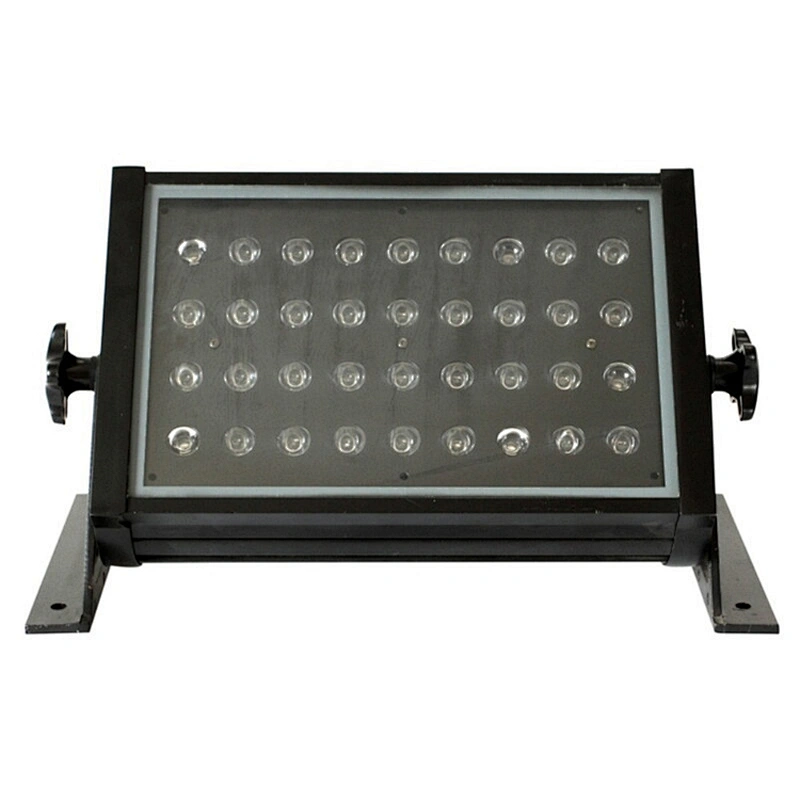

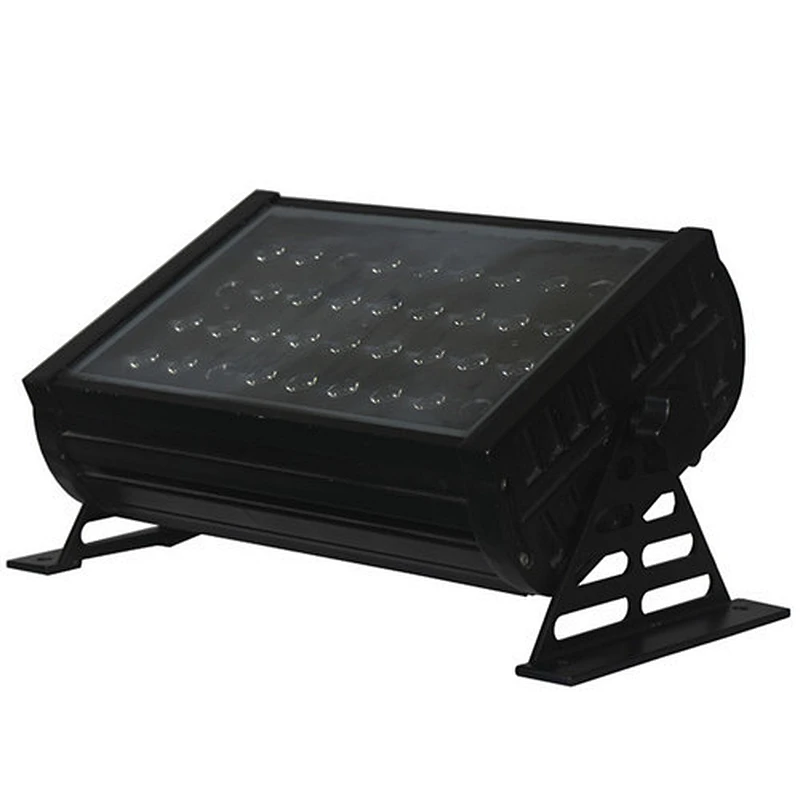

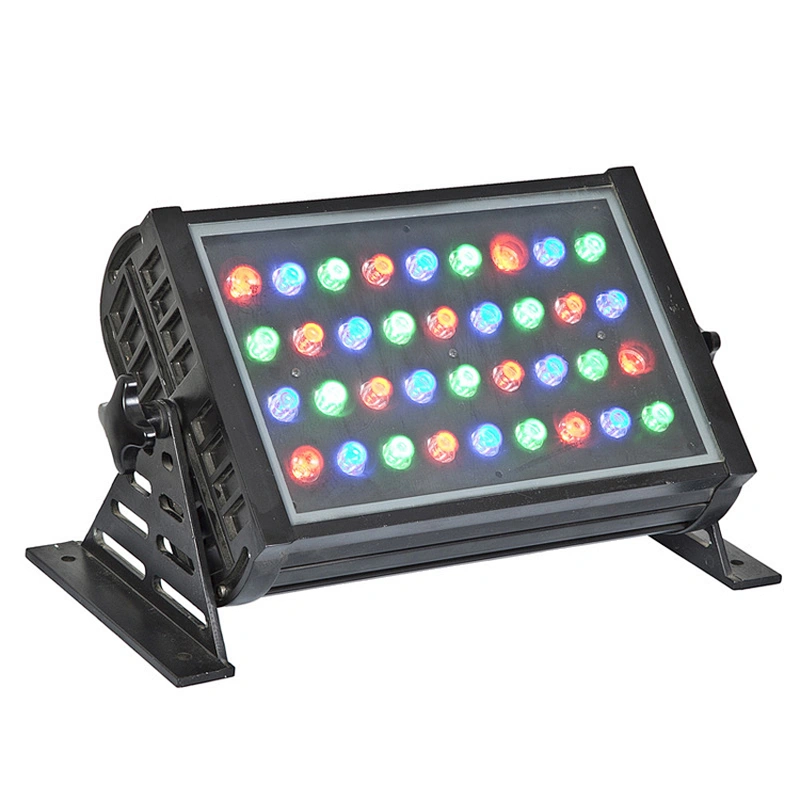

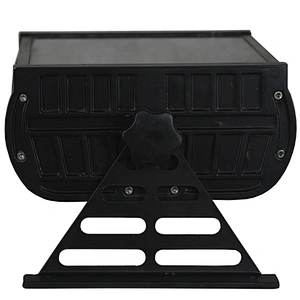

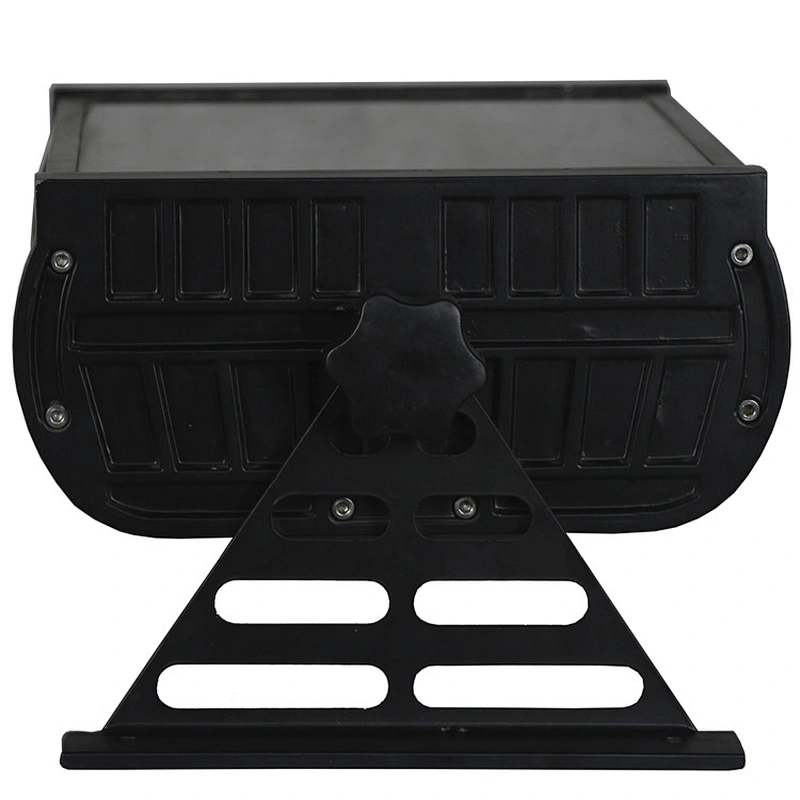

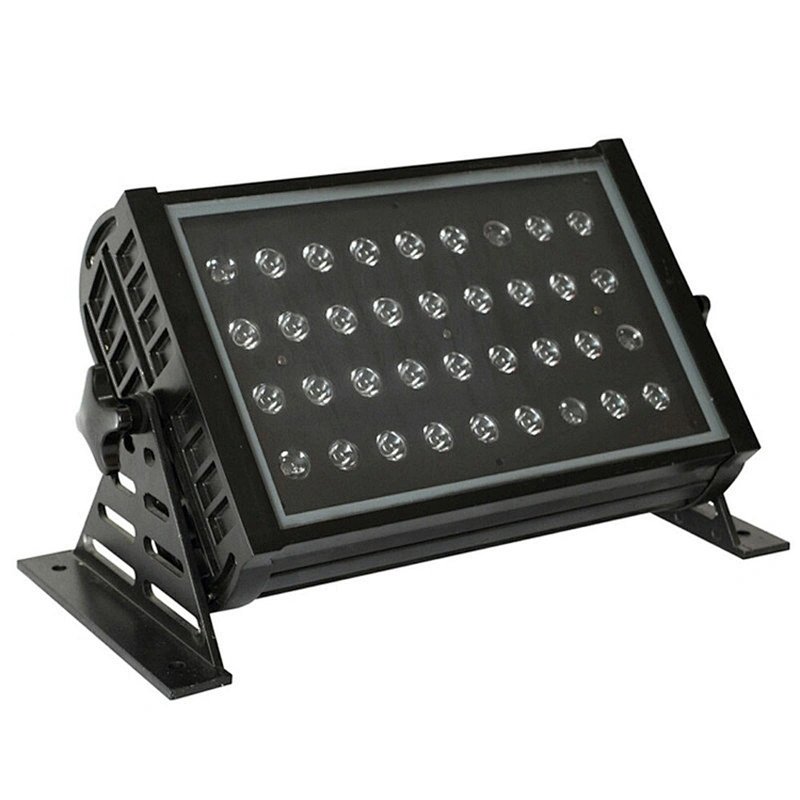

- LED WALL WASHER 363
- User manual
- Waterproof power cable
- Waterprof 3-pin XLR wire
