• Optional Models

• Optical System

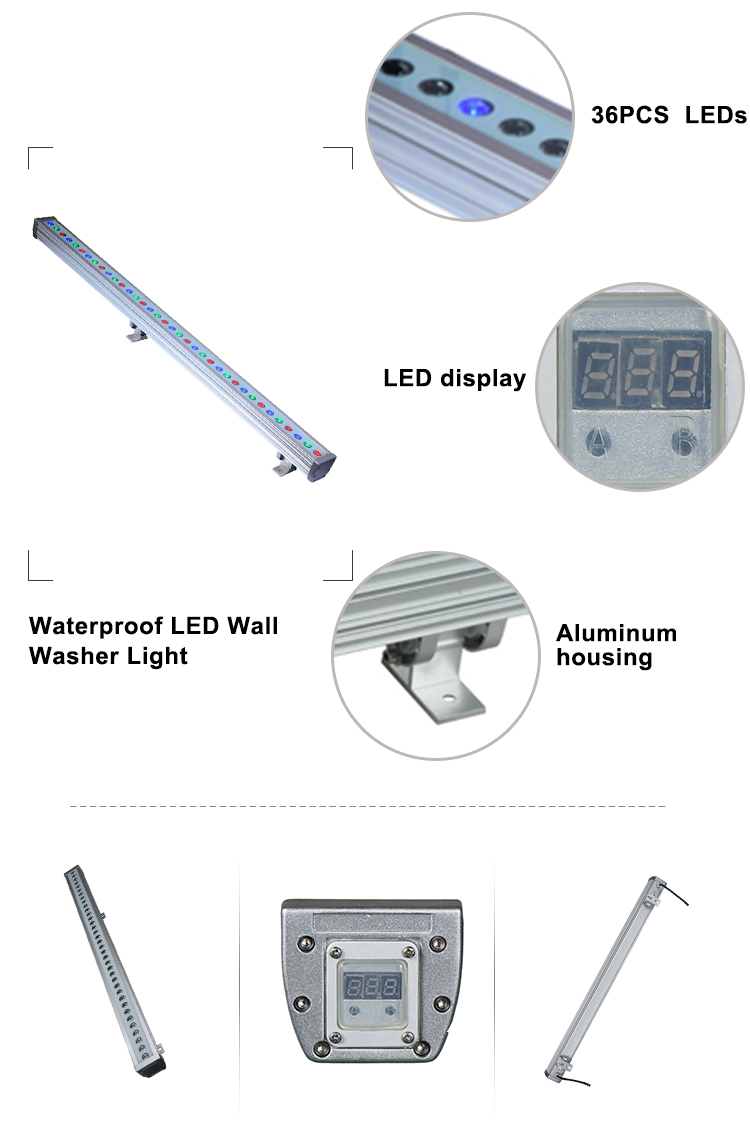

1. Light source: 36pcs LED beads
2. LED lifespan: min. 50,000 - 80,000 hours
3. Lens angle: 25° (15°, 25°, 60° optinoal)

• Dynamic Effects

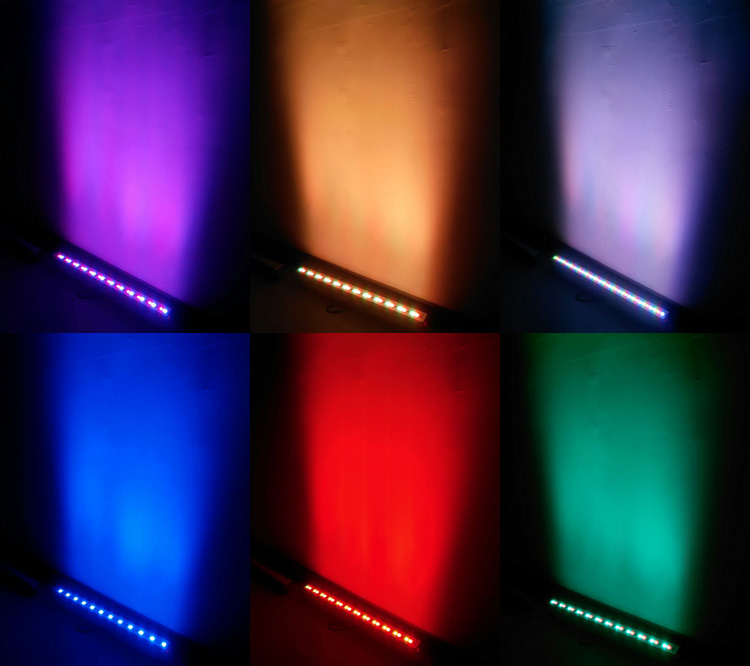

1. LED rainbow effect
2. 0-100% smooth linear dimming system
3. LED shutter

• Control and Program

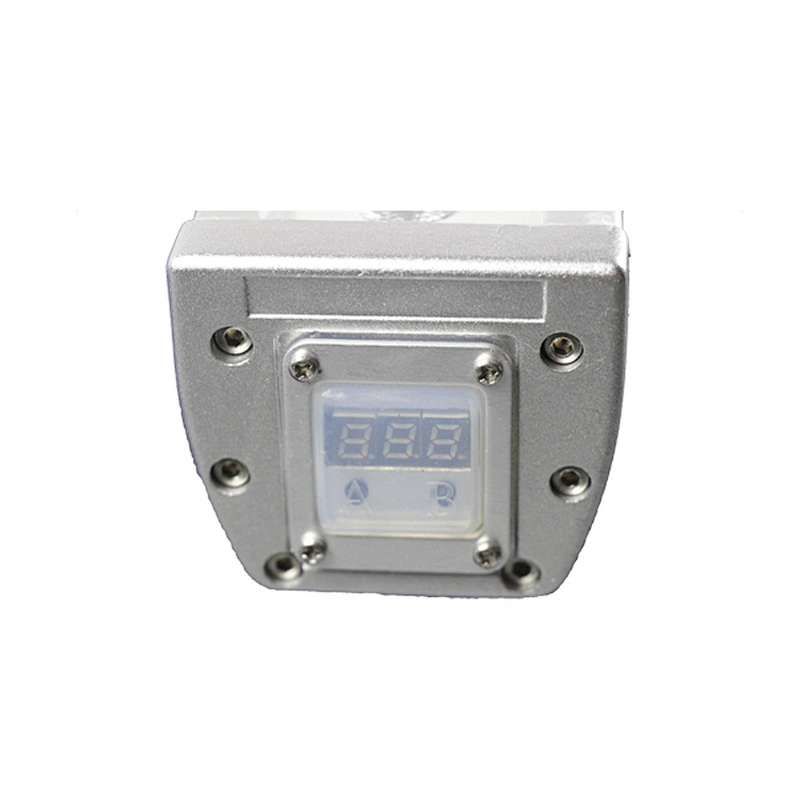

1. LED display
2. Protocol: DMX512, master-slave, sound control, auto
3. Built-in pre-programs
4. Marco function

• Electrical Specification and Connections

1. Power supply: electronic auto-ranging
2. Input voltage: AC90-240 V, 50-60 Hz

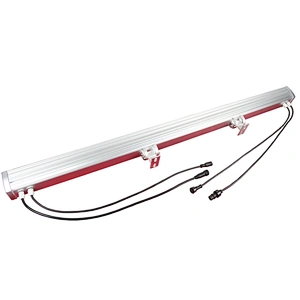

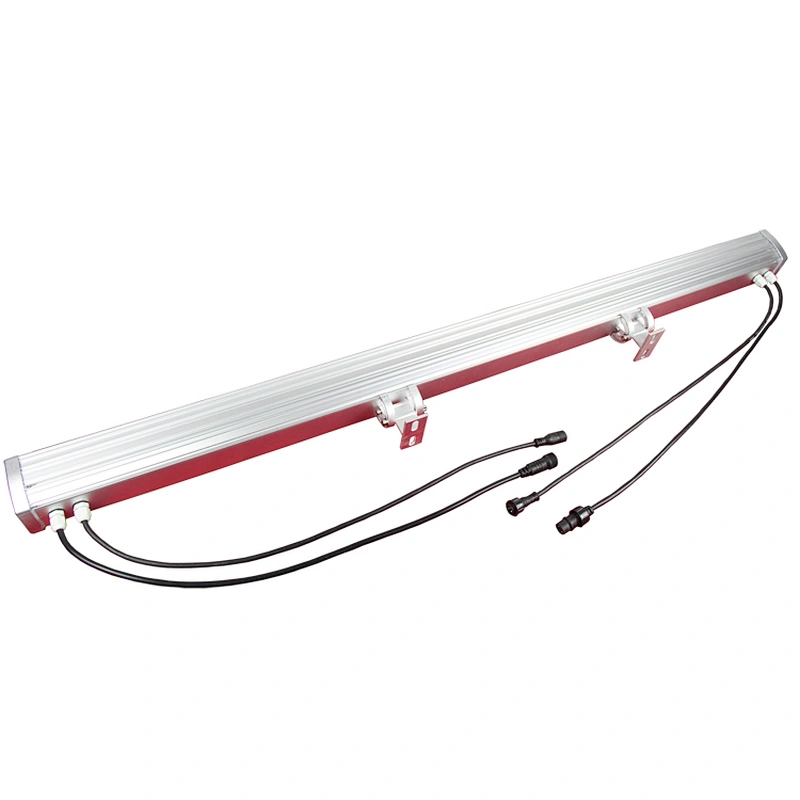

3. Power connector in/out: waterproof power plug
4. Data connector in/out: wasterproof 3-pin XLR

• Working Environment

1. Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
2. Protection grade: IP65

• Approvals

1. CE & RoHS
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product:1240 *130*120mm (48.8*5.1*4.7inch)
2. Carton:1280*130*145mm (50.4*5.1*5.7 inch)
3. Net weight: 5kg ( 11.0lbs)
4. Gross weight:5.5 kg (12.1 lbs)
5. Carton (4pcs-in-1): 1300*290*325mm,23.8 kg (51.2*11.4* 12.8inch, 52.5lbs)

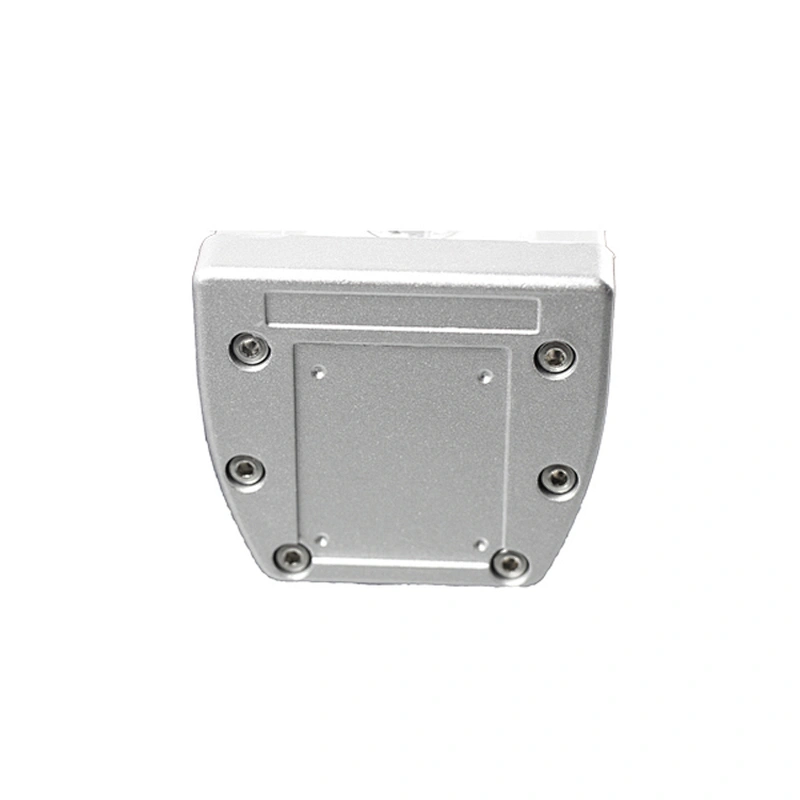

6. Aluminum housing and metal base

• Packing List

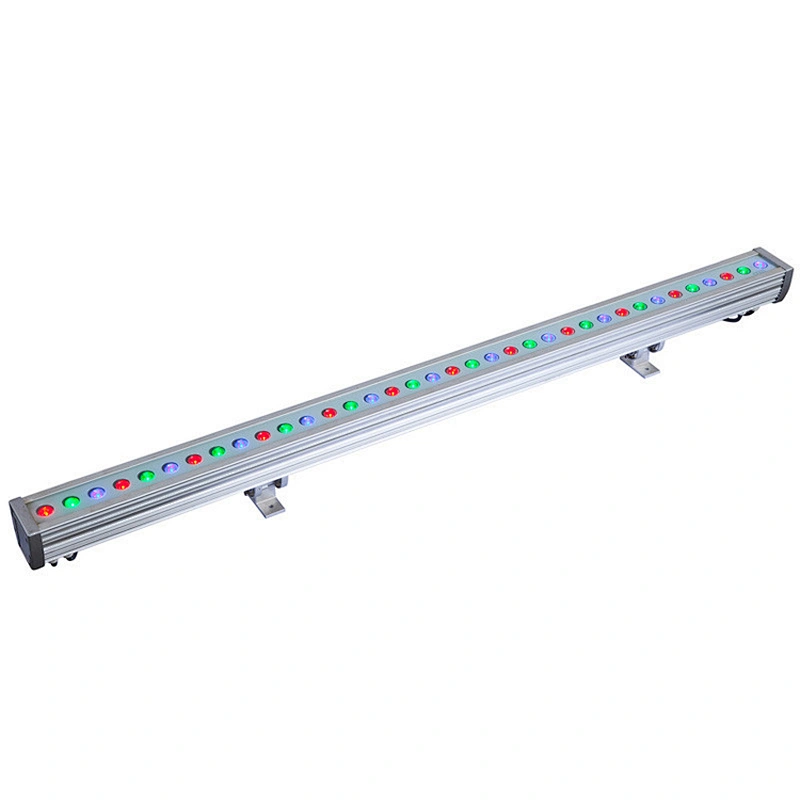

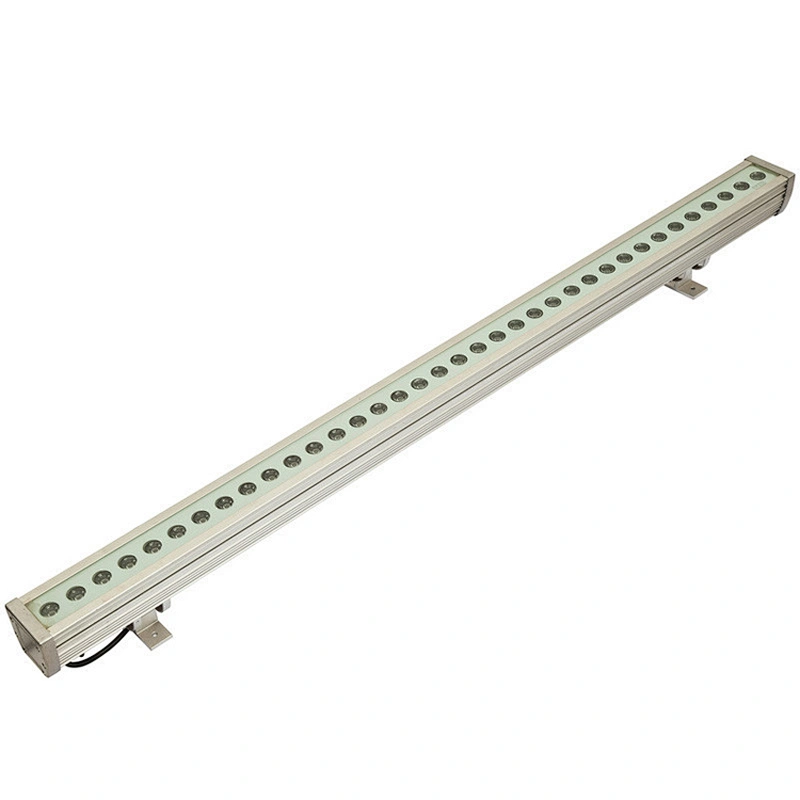

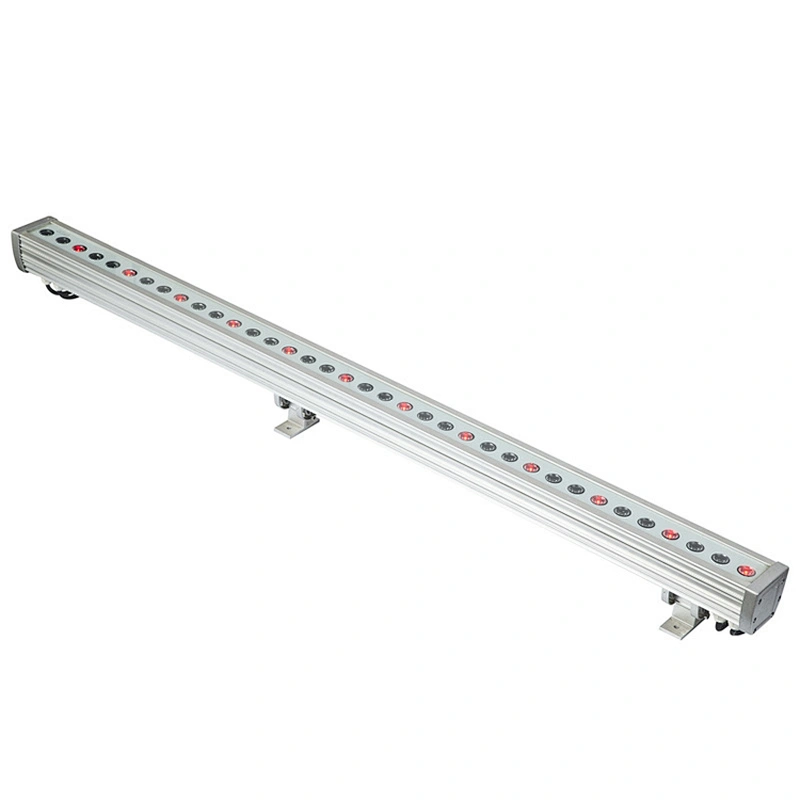

1. LED WALL WASHER 361
2. User manual
3. Waterproof power cable
4. Waterprof 3-pin XLR wire

• Optional Accessories

1. Flight case
2. Clamp
3. Safety rope

Extensional DMX wire
