- Optical System

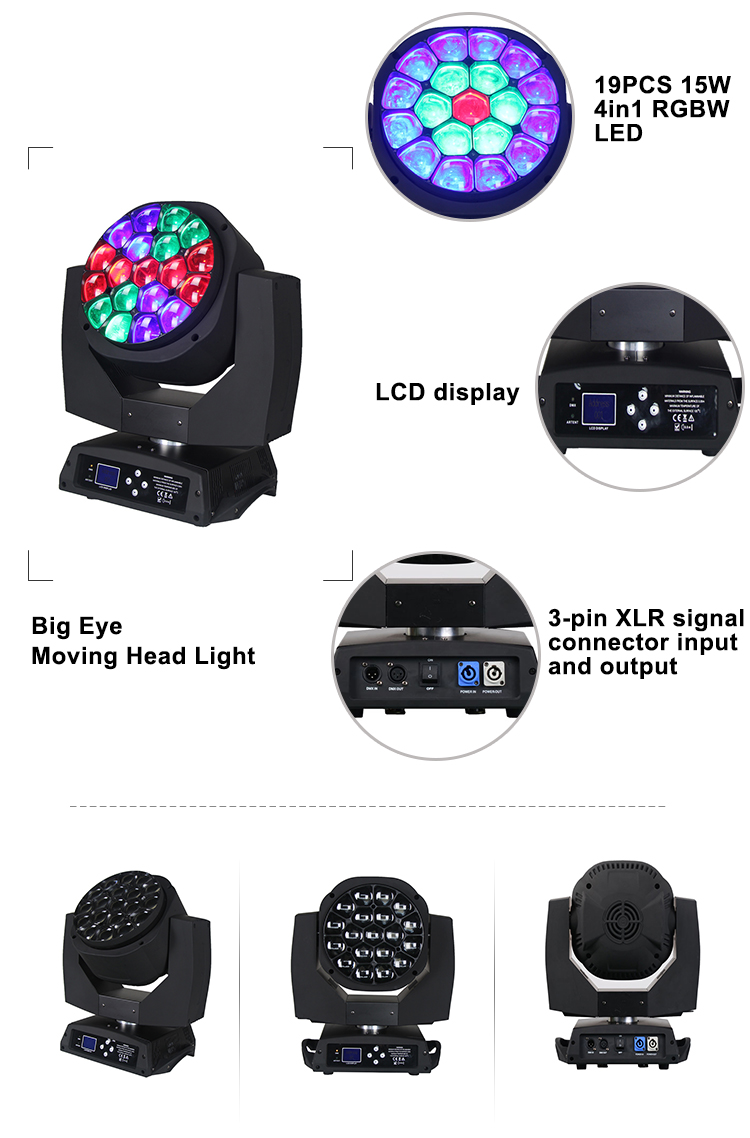

- Light source:19PCS 15W (OSRAM OSTAR ) 4in1 RGBW LED
- LED lifespan: 50,000 hours
- Zoom range: 4° - 60°
- Dynamic Effects
- Pixel control: 19 pixel (each LED as a pixel), individually controllable

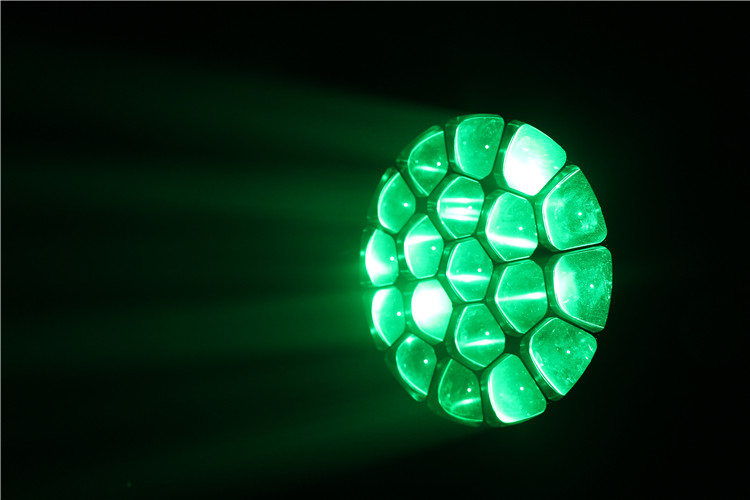

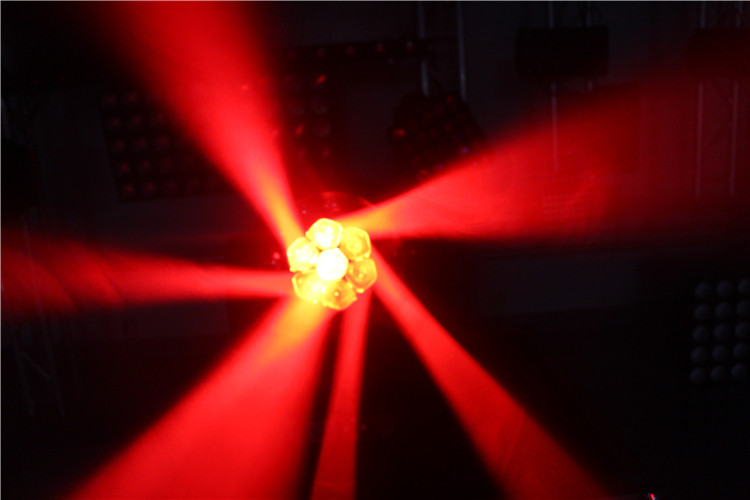

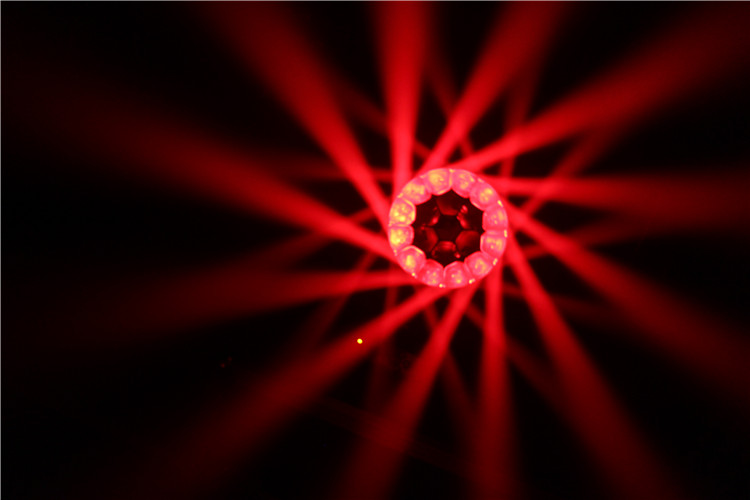

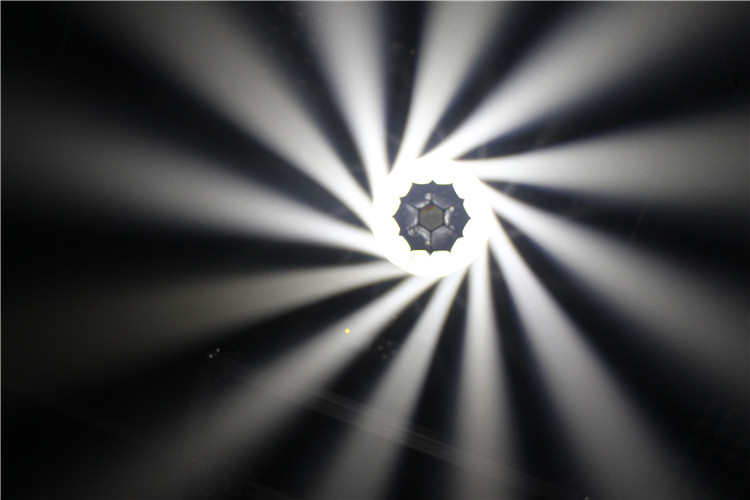

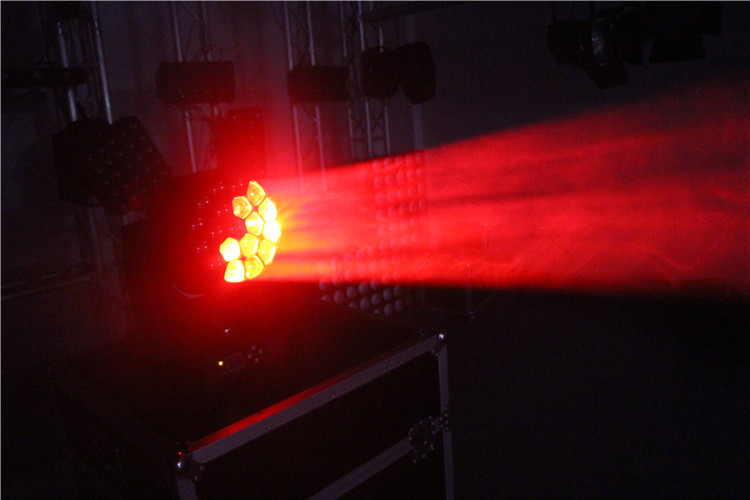

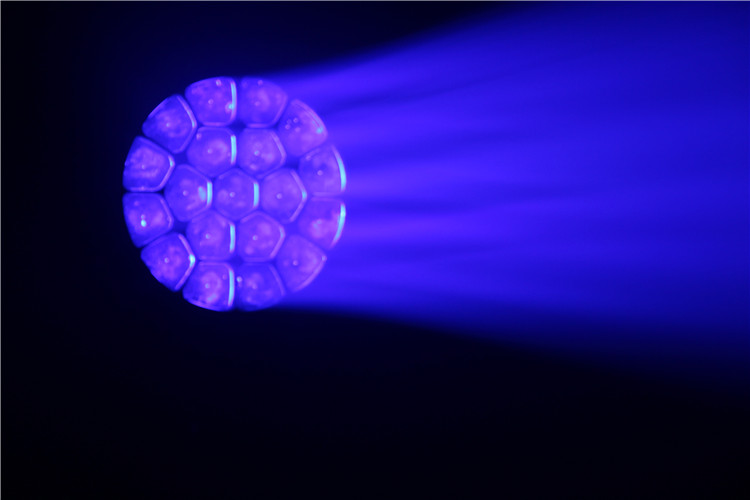

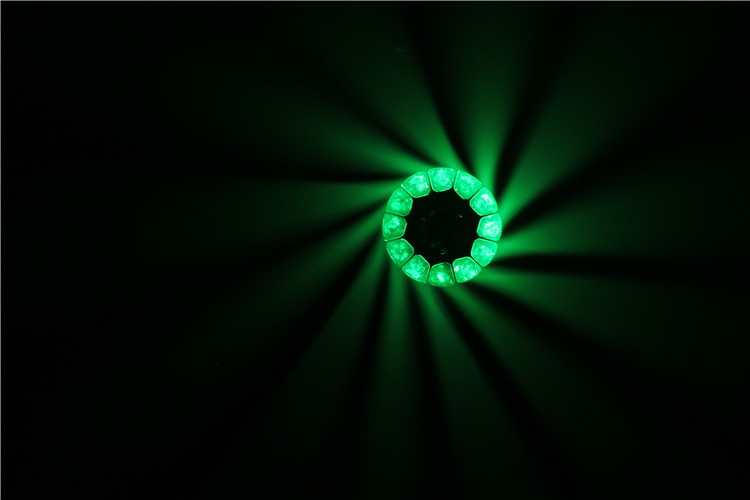

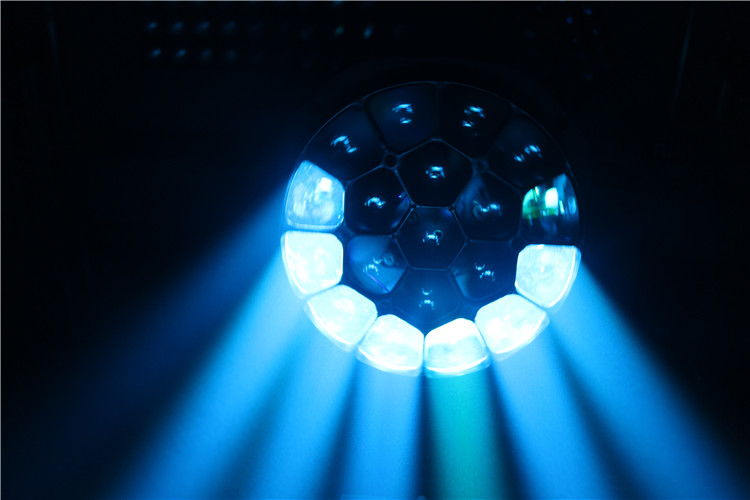

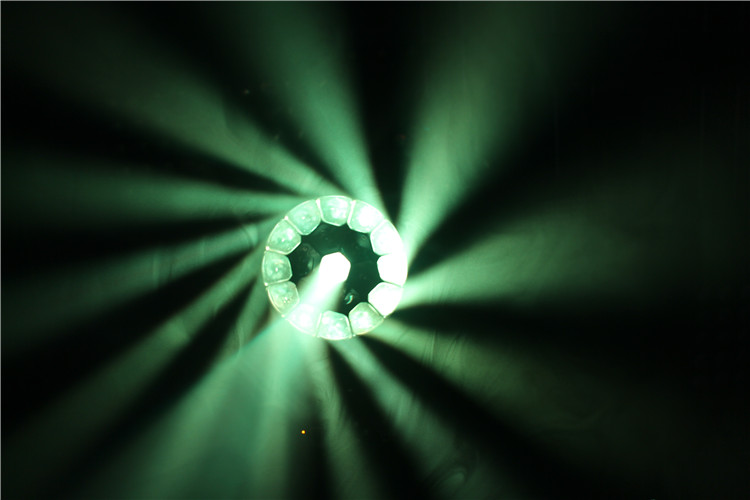

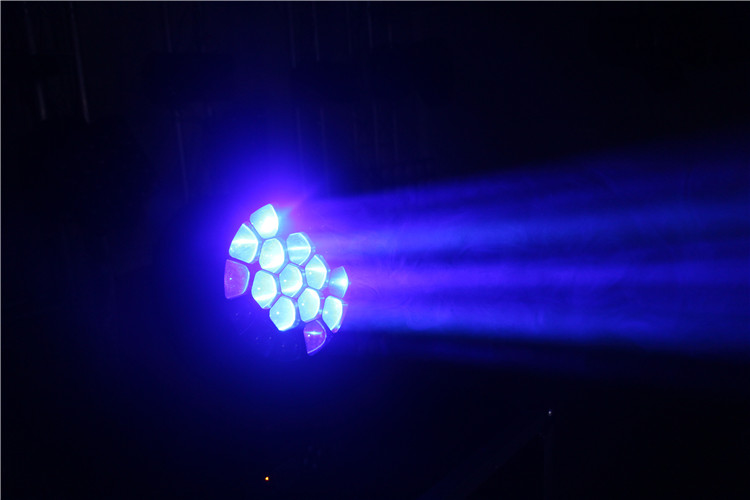

- Petal-like mini beam effects
- Pixel patterning macro effects
- Built-in running programs
- Built-in color and graphic effect macros
- 0-100% electronic dimmer
- Shutter: 1-25 times/s strobe,variable/random strobe and dimming pulse effect
- Control and Program
- LCD display
- Protocol: DMX512, master-slave, sound control, auto
- Control channels: 21/23/35/78/92/97 CH
- Pan/Tilt resolution: 8/16 bit smooth scanning
- Housing
- Aluminium structure with die-cast plastic cover
- Movement
- Pan movement: 540°
- Tilt movement: 270°
- Scanning position memory
- Automatic Pan/Tilt position correction
- Electrical Specification and Connections
- Power supply: Electronic ballasts and switching
- Input voltage: AC100-240V,50/60 Hz
- Power consumption: 450W
- Power connector in/out: Powercon
- Data connector in/out: 3-pin XLR
- 2PCS 1/4 turn fastening Omega clamp
- 1PC Safety attachment point
- PAN lock for transport and maintenance
- Working Environment
- Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
- Protection grade: IP20
- Approvals
- CE & RoHS
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 400*260*480mm (15.7*10.2*18.9 inch)
- Carton: 510*370*530mm (20.1*14.6*20.9 inch)
- Net weight: 15.5 kg (34.2 lbs)
- Gross weight: 18.5 kg (40.8 lbs)
- Packing List

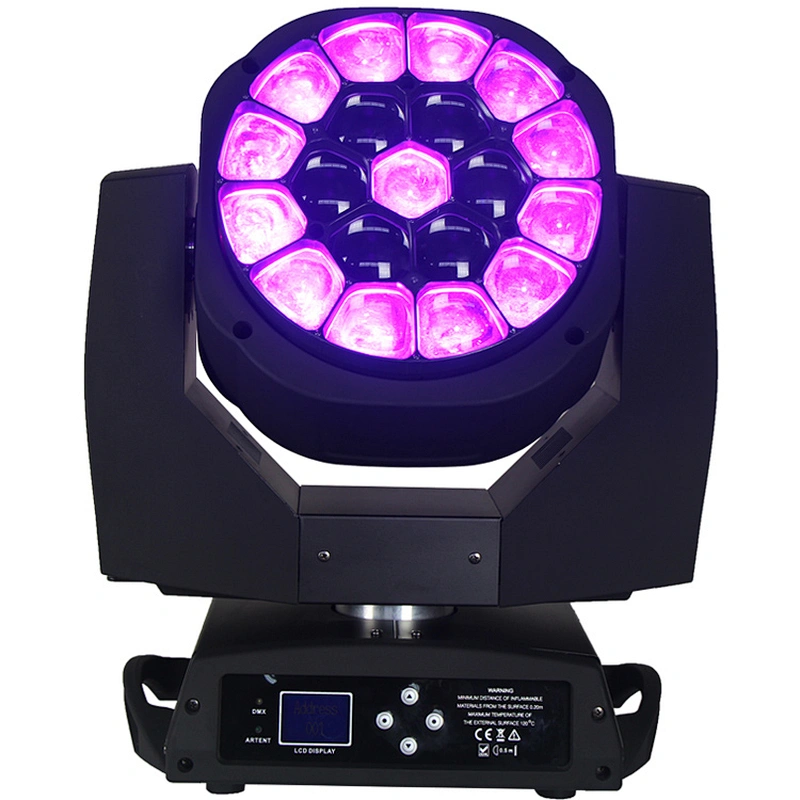

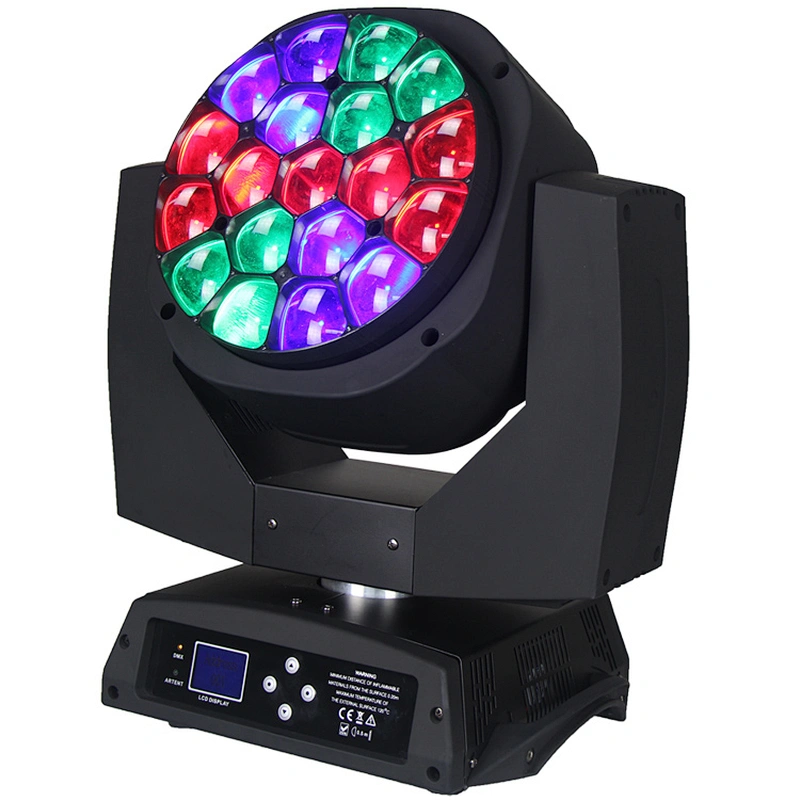

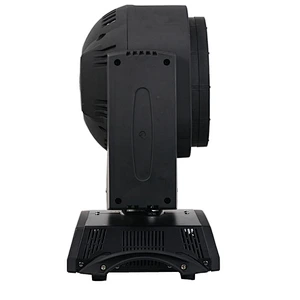

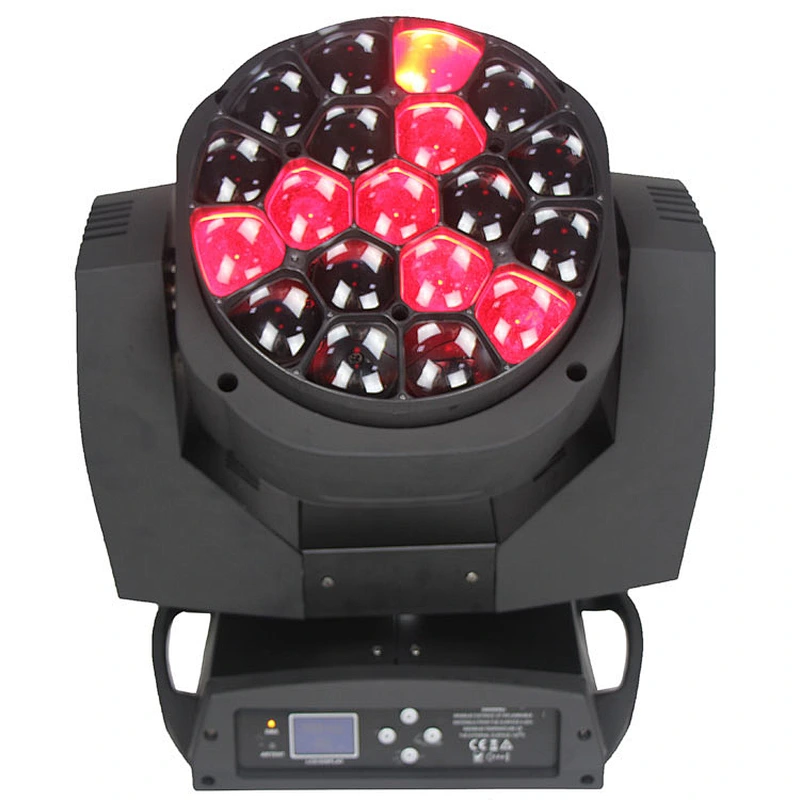

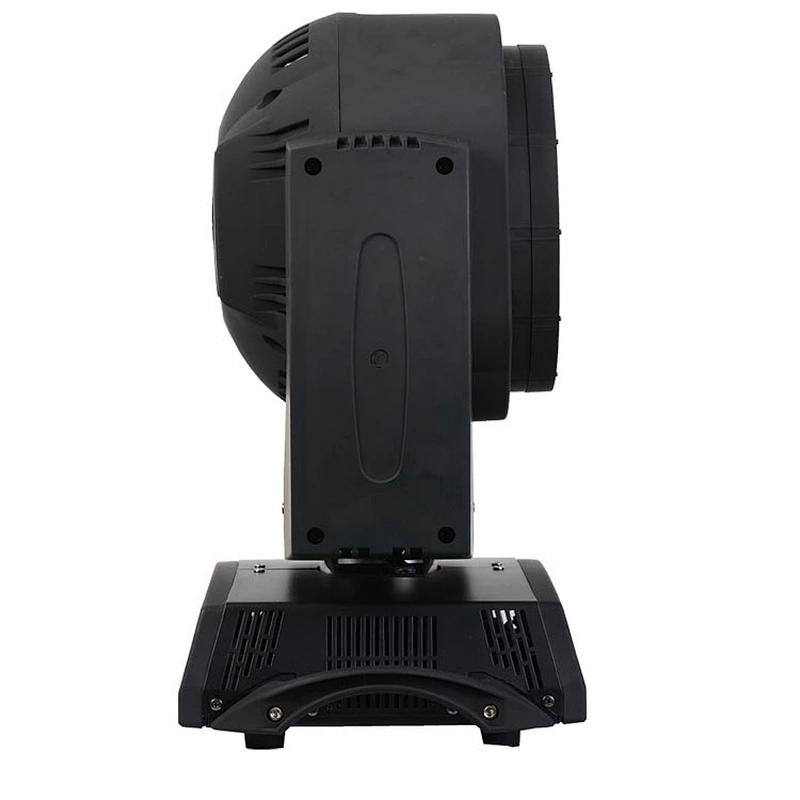

- BIGEYE 1915
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Flight case: 2pcs in 1
- Clamp
- Safety rope
- DMX wire
