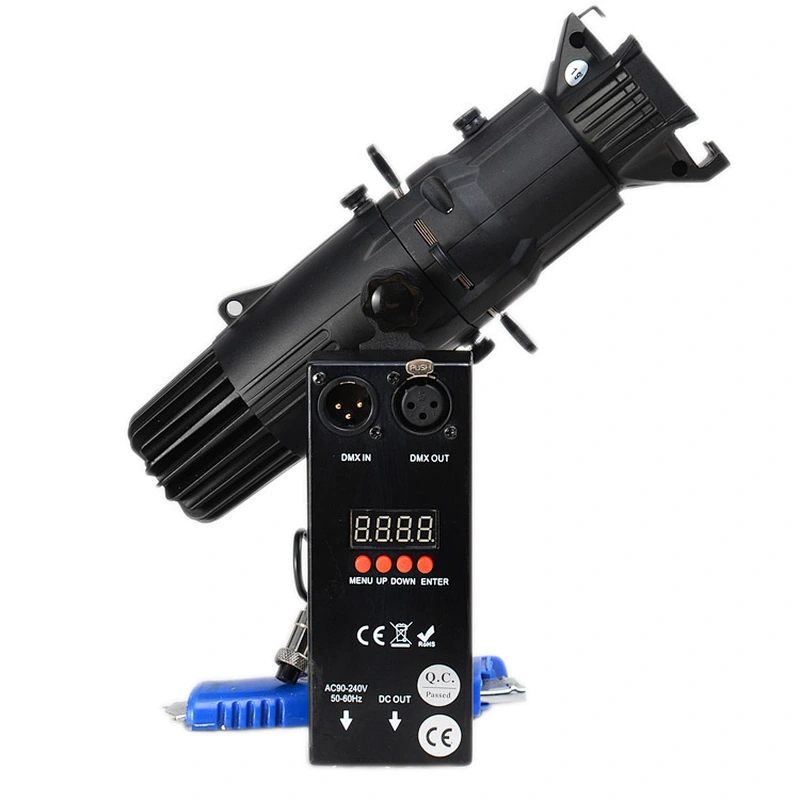

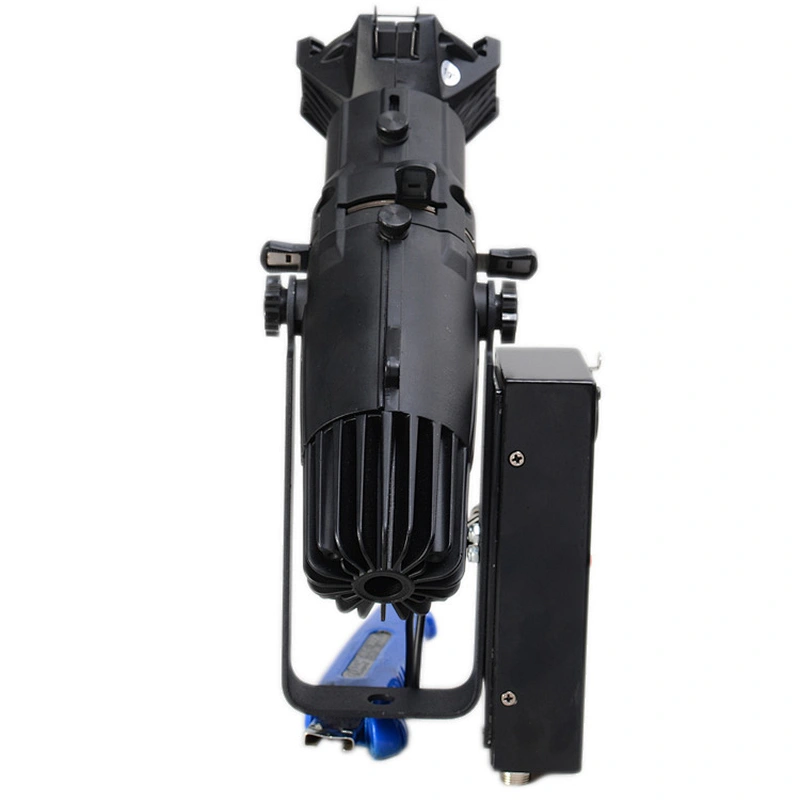

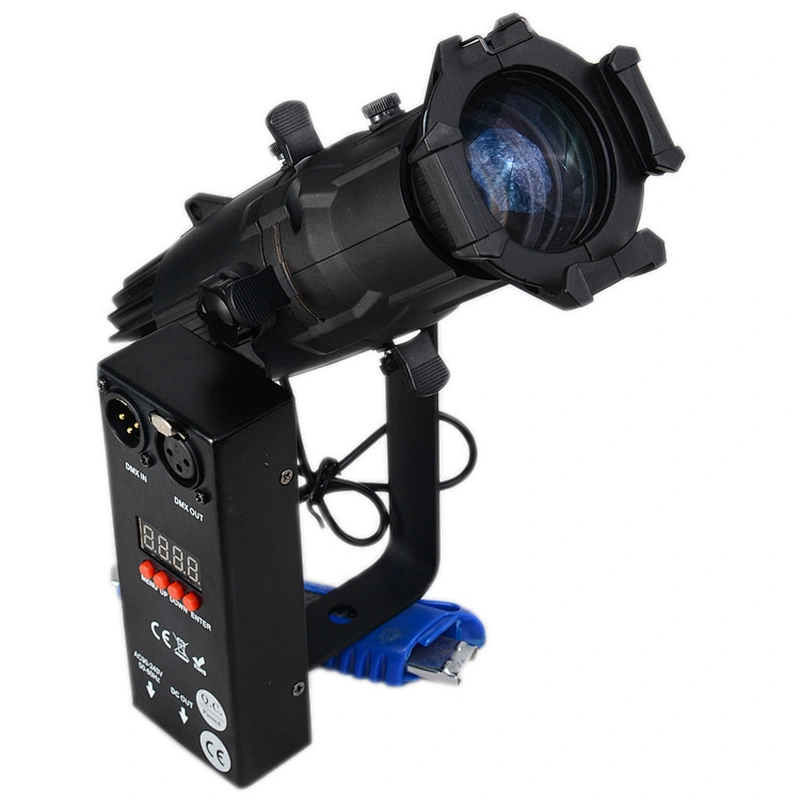

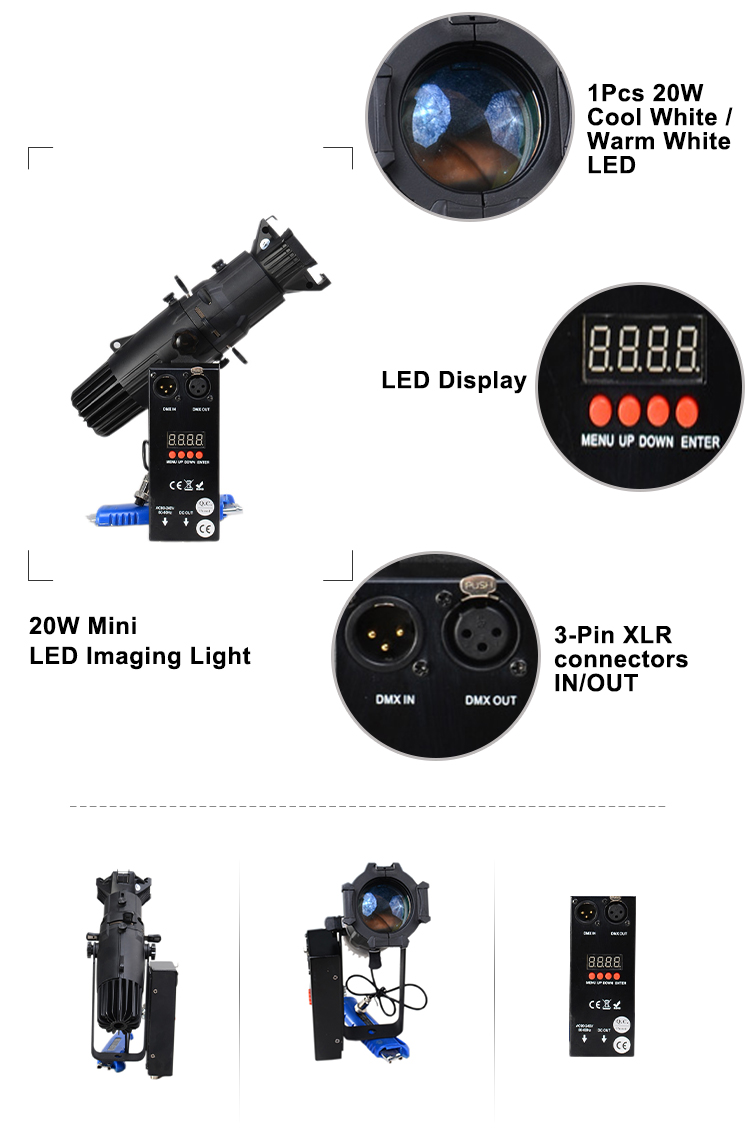

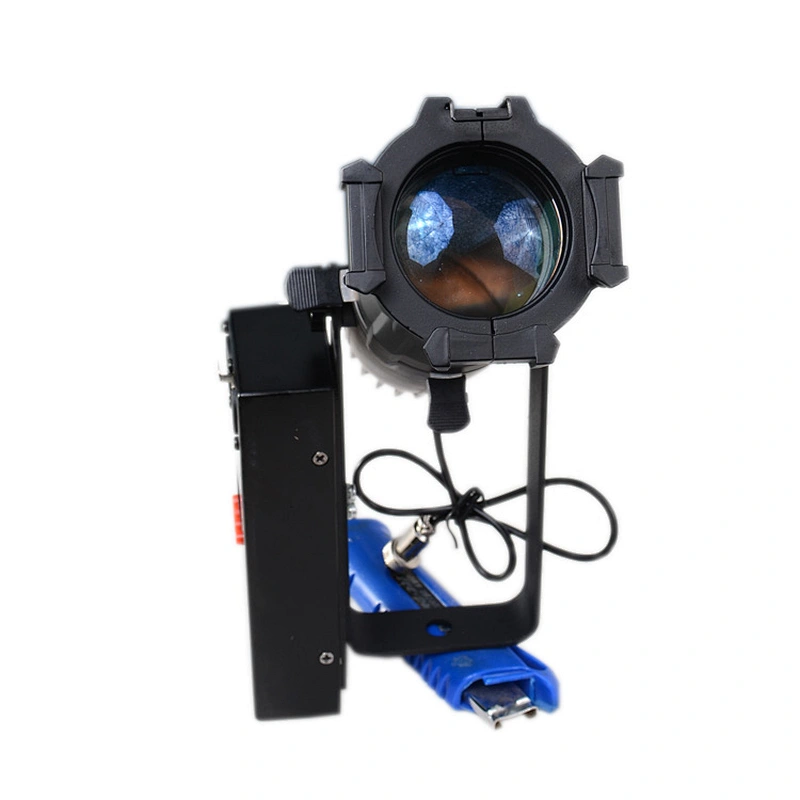

PROFILE 20

. Optional Models

. Optical System

1. Light source:1x20W LED ( Japan Nichia brand)
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 19° (26°/36°/50°optional)
4. Color Rendering Index(CRI):  Ra≥90

• Dynamic Effects

1. Focus manually
2. 0-100% smooth linear dimming system
3. Shutter: 1-25 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20
3. Aluminum housing

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 245*100*145 mm (9.6*3.9*5.7inch)
2. Box: 345*160*145 mm (13.6*6.3*5.7inch)
3. Net weight: 1.6kg (3.5 lbs)
4. Gross weight: 2.2 kg (4.9 lbs)

• Packing List

1. Profile 20
2. User manual
3. Power cable

• Optional Accessories

1. Flight case:6/12pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
