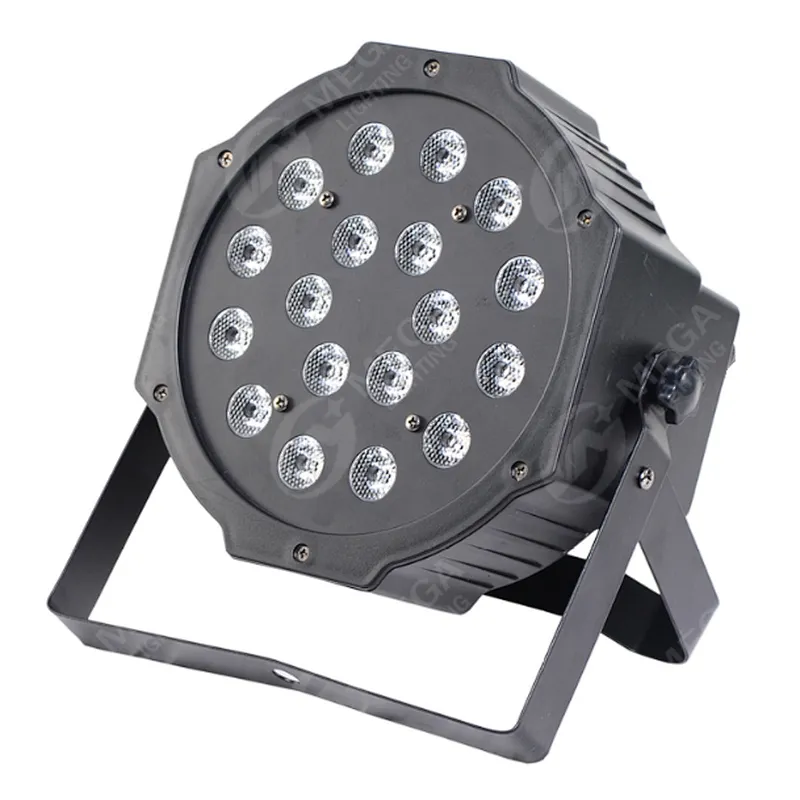

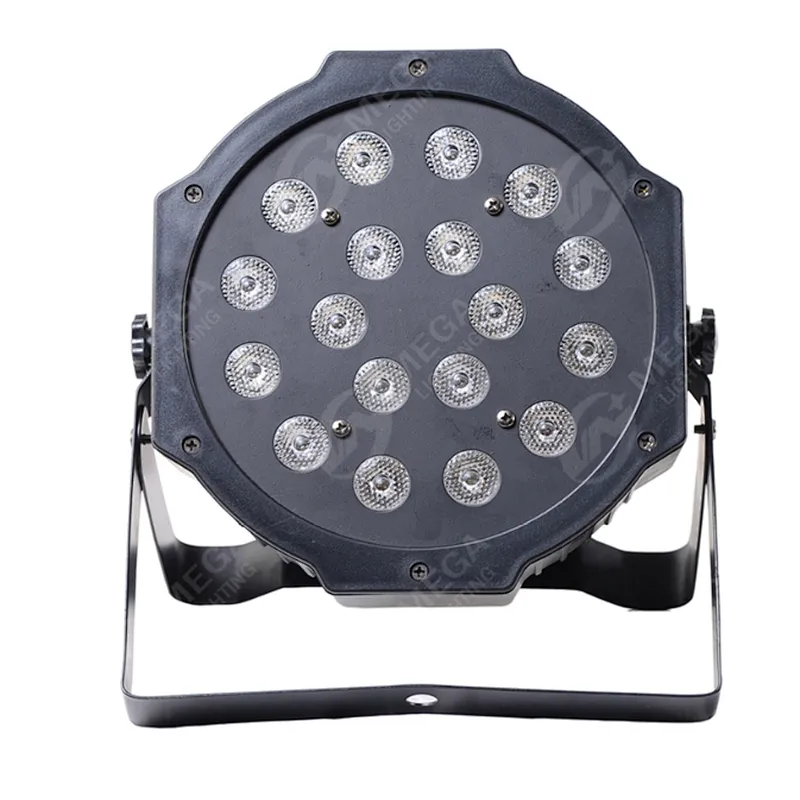

LEDRAR 181

. Optional Models

. Optical System

1. Light source:18X1W RGB LED
2. LED life expectancy: 50,000 - 80,000 hours
3. Lens angle: 25°(15°/45°/60° option)

• Dynamic Effects

1. Colour rainbow effect
2. 0-100% smooth linear dimming system
3. Shutter: 1-18 times/sec high speed strobe, speed adjustable
4. With random strobe and pulse effect

• Control and Program

1. DMX512, master-slave, sound control, auto programs
2. Built-in pre-program
3. Marco function

• Electrical Specification and Connections

1. Input voltage: AC 90-240 V, 50-60 Hz, auto ranging
2. Power connector in/out: IEC standard

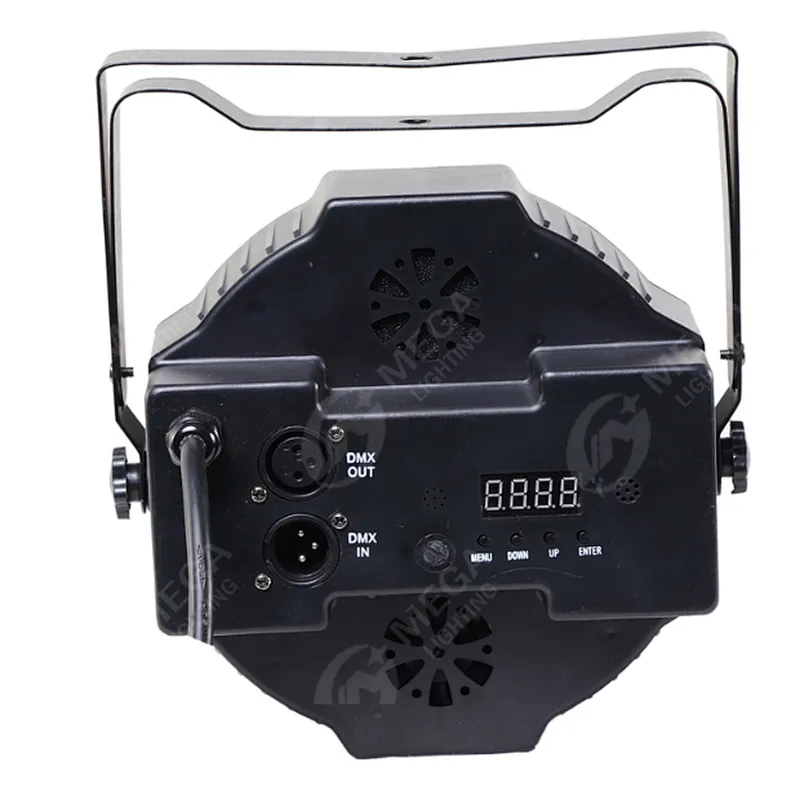

3. Data connector in/out: 3-pin XLR

• Working Environment

1. Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
2. Protection grade: IP20

• Approvals

1. CE, RoHS,
2. If any other certificates are required, confirm with us please

• Product and Packing Dimensions

1. Product: 190*120*200 mm (7.5*4.7*7.9inch)
2. Box: 210*140*230 mm (8.3*5.5*9.1inch)
3. Net weight: 1 kg (2.2 lbs)
4. Gross weight: 1.5 kg (3.3 lbs)
5. Carton (10pcs-in-1): 760*440*250mm, 12kg (29.9*17.3*9.8 inch, 26.5 lbs)

• Packing List

1. LEDRAR 181
2. User manual
3. Power cable

• Optional Accessories

1. Flight case: 20pcs-in-1
2. Clamp
3. Safety rope
4. DMX wire
